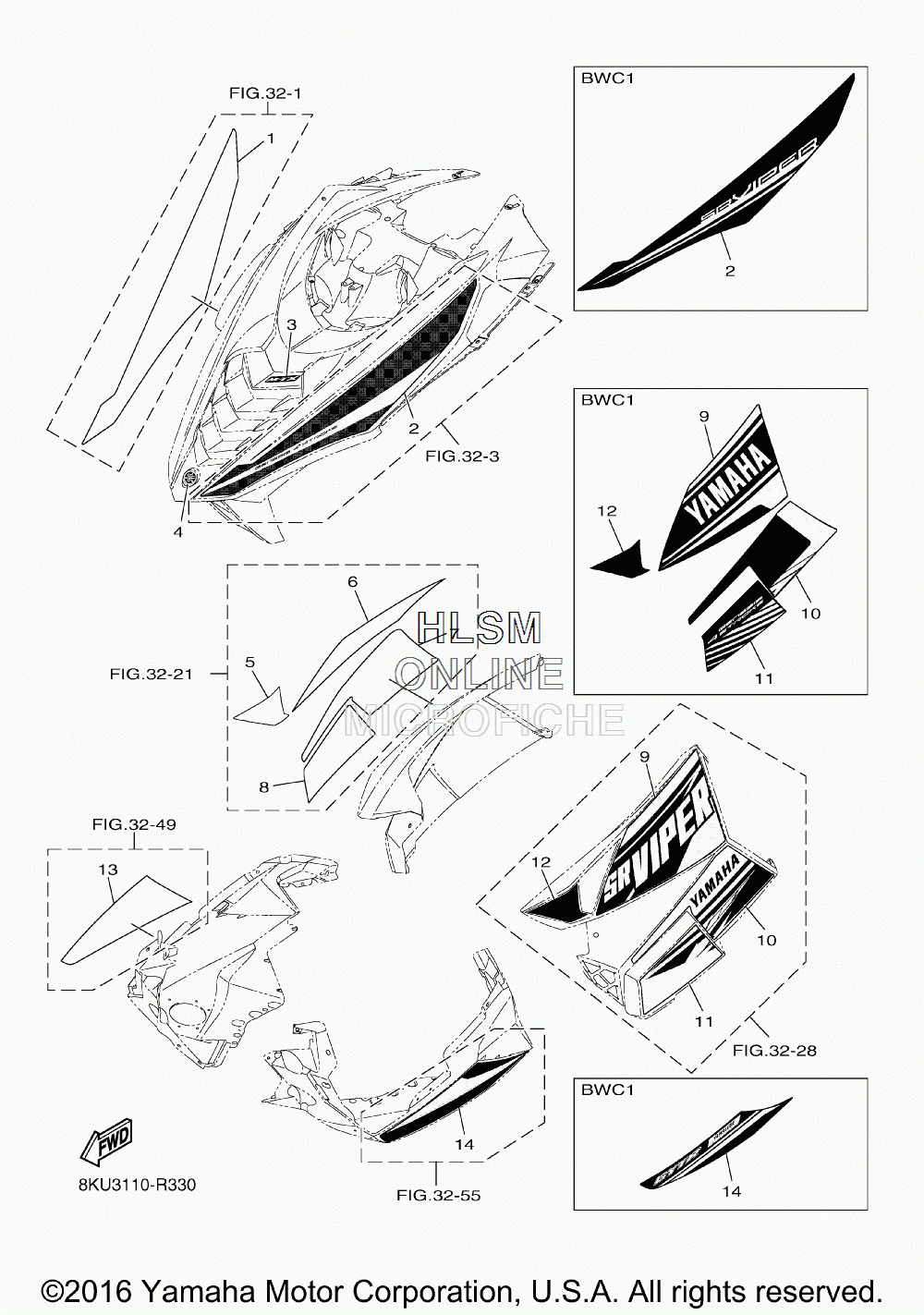

DECALS для Yamaha SRVIPER M TX 162 LE (SR10ML62GL) (BLUE)(WHITE) - 2016 года выпуска
-
№АртикулНазвание
-
18JW-F199B-30-00 GRAPHIC 2 (DPBSE - DEEP PURPLISH BLUE)GRAPHIC 2 (DPBSE - DEEP PURPLISH BLUE)
-
18KN-F199B-00-00 GRAPHIC 2 (BWC1 - BLUISH WHITE)GRAPHIC 2 (BWC1 - BLUISH WHITE)
-
28JW-F199A-30-00 GRAPHIC 1 (DPBSE - DEEP PURPLISH BLUE)GRAPHIC 1 (DPBSE - DEEP PURPLISH BLUE)
-
28KN-F199A-00-00 GRAPHIC 1 (BWC1 - BLUISH WHITE)GRAPHIC 1 (BWC1 - BLUISH WHITE)
-
38KG-K711G-00-00 GRAPHIC 7GRAPHIC 7
-
45KM-2175B-00-00 TUNING FORK MARKTUNING FORK MARK
-
58JP-K711M-00-00 GRAPHIC, SHROUD (DPBSE - DEEP PURPLISH BLUE)GRAPHIC, SHROUD (DPBSE - DEEP PURPLISH BLUE)
-
58KN-K711M-00-00 GRAPHIC, SHROUD (BWC1 - BLUISH WHITE)GRAPHIC, SHROUD (BWC1 - BLUISH WHITE)
-
68KN-K711B-30-00 GRAPHIC 2 (BWC1 - BLUISH WHITE)GRAPHIC 2 (BWC1 - BLUISH WHITE)
-
68JW-K711B-30-00 GRAPHIC 2 (DPBSE - DEEP PURPLISH BLUE)GRAPHIC 2 (DPBSE - DEEP PURPLISH BLUE)
-
78KN-K711D-30-00 GRAPHIC 4 (BWC1 - BLUISH WHITE)GRAPHIC 4 (BWC1 - BLUISH WHITE)
-
78JW-K711D-30-00 GRAPHIC 4 (DPBSE - DEEP PURPLISH BLUE)GRAPHIC 4 (DPBSE - DEEP PURPLISH BLUE)
-
88JW-K711F-30-00 GRAPHIC 6 (DPBSE - DEEP PURPLISH BLUE)GRAPHIC 6 (DPBSE - DEEP PURPLISH BLUE)
-
88KN-K711F-30-00 GRAPHIC 6 (BWC1 - BLUISH WHITE)GRAPHIC 6 (BWC1 - BLUISH WHITE)
-
98KN-K711A-30-00 GRAPHIC 1 (BWC1 - BLUISH WHITE)GRAPHIC 1 (BWC1 - BLUISH WHITE)
-
98JW-K711A-30-00 GRAPHIC 1 (DPBSE - DEEP PURPLISH BLUE)GRAPHIC 1 (DPBSE - DEEP PURPLISH BLUE)
-
108KN-K711C-30-00 GRAPHIC 3 (BWC1 - BLUISH WHITE)GRAPHIC 3 (BWC1 - BLUISH WHITE)
-
108JW-K711C-30-00 GRAPHIC 3 (DPBSE - DEEP PURPLISH BLUE)GRAPHIC 3 (DPBSE - DEEP PURPLISH BLUE)
-
118KN-K711E-30-00 GRAPHIC 5 (BWC1 - BLUISH WHITE)GRAPHIC 5 (BWC1 - BLUISH WHITE)
-
118JW-K711E-30-00 GRAPHIC 5 (DPBSE - DEEP PURPLISH BLUE)GRAPHIC 5 (DPBSE - DEEP PURPLISH BLUE)
-
128KN-K711L-00-00 GRAPHIC, SHROUD (BWC1 - BLUISH WHITE)GRAPHIC, SHROUD (BWC1 - BLUISH WHITE)
-
128JP-K711L-00-00 GRAPHIC, SHROUD (DPBSE - DEEP PURPLISH BLUE)GRAPHIC, SHROUD (DPBSE - DEEP PURPLISH BLUE)
-
138KN-K755C-20-00 GRAPHIC 2 (BWC1 - BLUISH WHITE)GRAPHIC 2 (BWC1 - BLUISH WHITE)
-
138KN-K755C-10-00 GRAPHIC 2 (DPBSE - DEEP PURPLISH BLUE)GRAPHIC 2 (DPBSE - DEEP PURPLISH BLUE)
-
148KN-K755B-10-00 GRAPHIC 1 (DPBSE - DEEP PURPLISH BLUE)GRAPHIC 1 (DPBSE - DEEP PURPLISH BLUE)
-
148KN-K755B-20-00 GRAPHIC 1 (BWC1 - BLUISH WHITE)GRAPHIC 1 (BWC1 - BLUISH WHITE)
Все узлы модели:
- BELT GUARD W/ TOOL BOX
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CAMSHAFT W/ CAMSHAFT CHAIN ASSY
- CHAINCASE - SPROCKET AND CHAINS (OPTION)
- CHAINCASE ASSY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - TUNE-UP KIT (OPTION)
- CLUTCH - WEIGHTS AND SPRINGS (OPTION)
- CONSOLE ASSY
- COOLING SYSTEM
- CRANKCASE ASSY
- CRANKCASE COVER ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- • DECALS
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - BATTERY ASSY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - INSTRUMENTS
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FRONT FRAME COMP. 1
- FUEL TANK ASSY
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HANDLEBAR PAD W/ STEERING GATE
- HOOD - WINDSHIELD ASSY
- HOOD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- MODEL INFO - MANUALS
- OIL COOLER ASSY W/ OIL FILTER
- OIL PUMP ASSY
- OIL TANK ASSY
- SEAT ASSY
- STARTER - ELECTRICAL STARTER ASSY
- STARTER - REDUCTION GEAR W/ CLUTCH ASSY
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2
- THROTTLE BODY ASSY
- TUNNEL EXTENSION ASSEMBLY
- VALVE ASSY
- WATER PUMP ASSY
