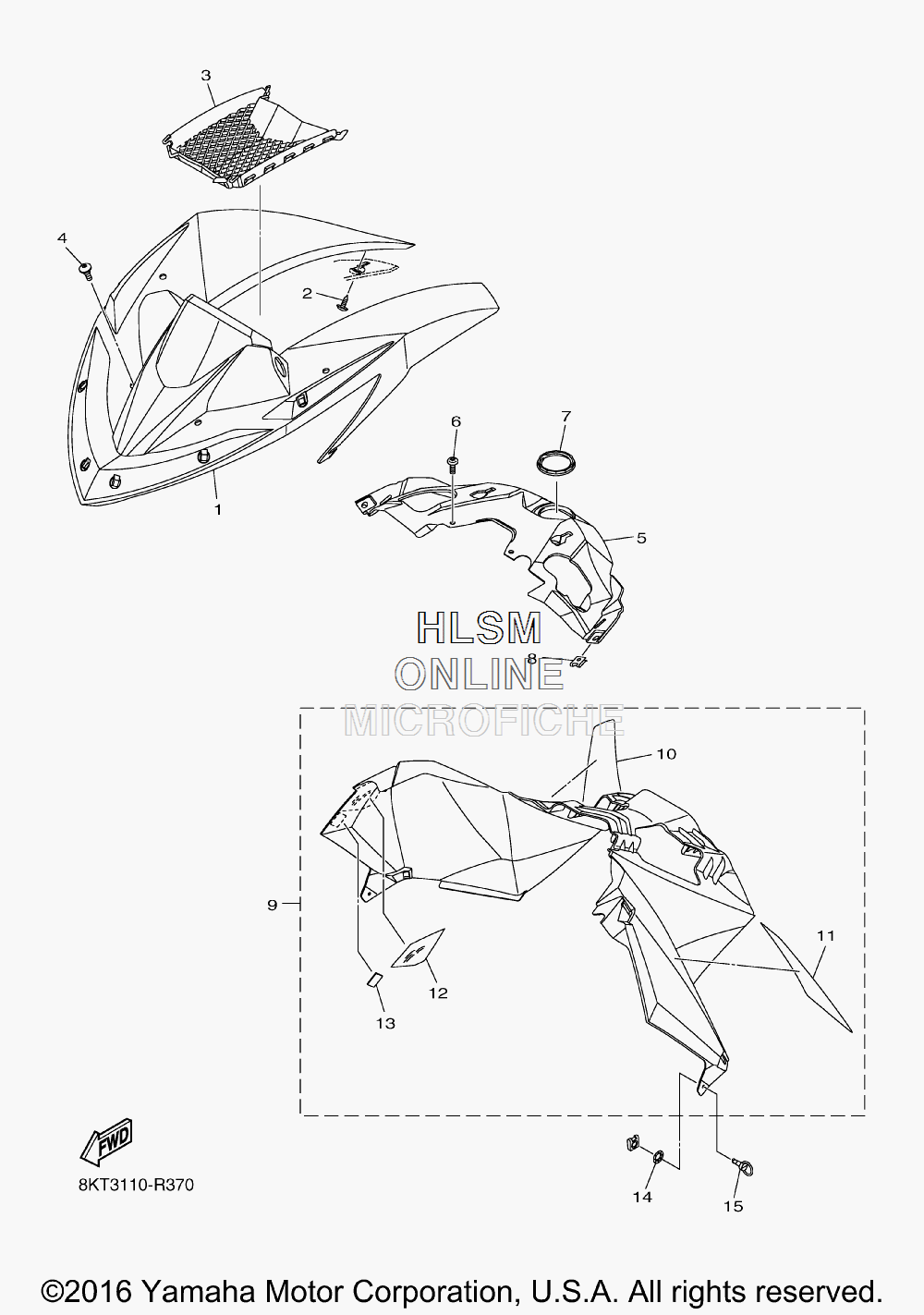

CONSOLE ASSY для Yamaha SRVIPER M TX 162 - 2016 года выпуска
-
№АртикулНазвание
-
18KU-K7712-00-00 PANEL, INSTRUMENTPANEL, INSTRUMENT
-
28JM-RA201-00-00 SCREW, TAPPING 10-12X5/8SCREW, TAPPING 10-12X5/8
-
38KG-K7131-00-00 LOUVER 1LOUVER 1
-
48JP-RA253-00-00 SCREW, M6-1.0X18SCREW, M6-1.0X18
-
58KG-K7711-00-00 PANEL, INSTRUMENTPANEL, INSTRUMENT
-
68JP-RA252-00-00 SCREW, M6-1.0X15SCREW, M6-1.0X15
-
78JP-K6169-00-00 NUTNUT
-
88JP-RA352-00-00 NUT, CLIP 10NUT, CLIP 10
-
98JP-K7713-10-00 PANEL, INSTRUMENTPANEL, INSTRUMENT
-
108JP-K7761-70-00 ...LABEL, WARNING 1...LABEL, WARNING 1
-
118JP-K7761-S0-00 ...LABEL, WARNING 1...LABEL, WARNING 1
-
128JP-K7561-00-00 ...PROTECTOR, SIDE 1...PROTECTOR, SIDE 1
-
138JP-R4261-00-00 ...VELCRO (6.5 FEET)...VELCRO (6.5 FEET)
-
148JP-RA345-00-00 NUT, 1NUT, 1
-
158JP-RAK02-00-00 PIN, 2PIN, 2
