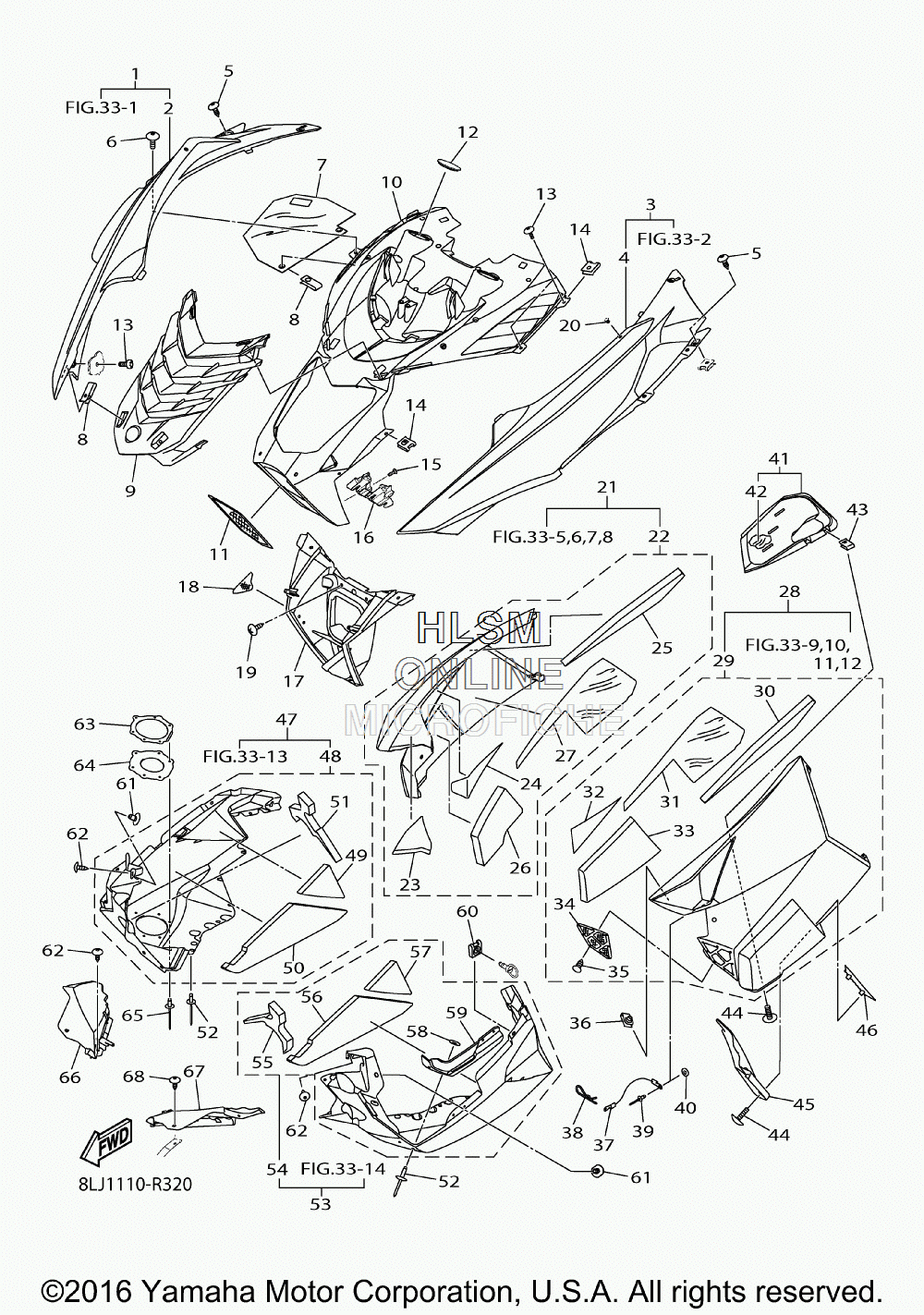

HOOD ASSY для Yamaha SRVIPER S TX DX 137 - 2016 года выпуска
-
№АртикулНазвание
-
18JP-F198A-70-00 HOOD ASSY 4HOOD ASSY 4
-
28JP-K7122-00-00 ...HOOD 2...HOOD 2
-
38JP-F197A-70-00 HOOD ASSY 3HOOD ASSY 3
-
48JP-K7121-00-00 ...HOOD 1...HOOD 1
-
58JP-RA290-00-00 SCREW, 10-12X3/4SCREW, 10-12X3/4
-
68JP-RA288-00-00 SCREW, 10-12X1.00SCREW, 10-12X1.00
-
78JP-F199H-00-00 SHIELD, HEATSHIELD, HEAT
-
88JP-RA351-00-00 NUT, CLIP 10NUT, CLIP 10
-
98JP-F837L-00-00 PANEL, CONSOLE 1PANEL, CONSOLE 1
-
108JP-K7111-00-00 SHROUDSHROUD
-
118JP-K815R-00-00 GRILL, FRONTGRILL, FRONT
-
128JP-H2371-00-00 CAP, PLUGCAP, PLUG
-
138JM-RA208-00-00 SCREW, 10-12X1/2SCREW, 10-12X1/2
-
148JP-RA352-00-00 NUT, CLIP 10NUT, CLIP 10
-
158JP-RA2A2-00-00 SCREW, 13SCREW, 13
-
168JP-F194X-00-00 BRACKET 1BRACKET 1
-
178JP-R1311-01-00 DUCT, INTAKEDUCT, INTAKE
-
188JP-H5133-00-00 TAPE, REFLECTORTAPE, REFLECTOR
-
198JM-RA201-00-00 SCREW, TAPPING 10-12X5/8SCREW, TAPPING 10-12X5/8
-
208KG-RA506-00-00 RIVET, 1RIVET, 1
-
218JP-K810G-40-00 SIDE PANEL COMP.( R.H)SIDE PANEL COMP.( R.H)
-
228JW-K8140-10-00 ...SHELL SIDE PANEL ASSY 2...SHELL SIDE PANEL ASSY 2
-
238JP-K7277-00-00 ......DAMPER, NOISE 17......DAMPER, NOISE 17
-
248JP-K7551-00-00 ......PROTECTOR 1......PROTECTOR 1
-
258JP-K7279-00-00 ......DAMPER, NOISE 19......DAMPER, NOISE 19
-
268JP-K7278-00-00 ......DAMPER, NOISE 18......DAMPER, NOISE 18
-
278JP-K7552-00-00 ......PROTECTOR 2......PROTECTOR 2
-
288JP-K810F-40-00 SIDE PANEL COMP. (L.H)SIDE PANEL COMP. (L.H)
-
298JW-K8130-10-00 ...SHELL SIDE PANEL ASSY 1...SHELL SIDE PANEL ASSY 1
-
308JP-K7273-00-00 ......DAMPER, NOISE 13......DAMPER, NOISE 13
-
318JP-K7274-00-00 ......DAMPER, NOISE 14......DAMPER, NOISE 14
-
328JP-K7275-00-00 ......DAMPER, NOISE 15......DAMPER, NOISE 15
-
338JP-K7276-00-00 ......DAMPER, NOISE 16......DAMPER, NOISE 16
-
348JP-F6234-00-00 ......SCREEN......SCREEN
-
358JP-RA510-00-00 ......RIVET, 1......RIVET, 1
-
368JP-RA353-00-00 NUT, CLIP M5NUT, CLIP M5
-
378JP-F1654-00-00 WIREWIRE
-
388JP-RAC14-00-00 CLIP, 5CLIP, 5
-
398JP-RA515-00-00 RIVET, 6RIVET, 6
-
408JP-RA451-00-00 WASHER, 8X0.375X0.049WASHER, 8X0.375X0.049
-
418JP-K7194-00-00 DUCTDUCT
-
428JP-K7553-00-00 ...PROTECTOR 3...PROTECTOR 3
-
438JP-RA351-00-00 NUT, CLIP 10NUT, CLIP 10
-
448JM-RA208-00-00 SCREW, 10-12X1/2SCREW, 10-12X1/2
-
458JP-F4131-00-00 DEFLECTOR 1DEFLECTOR 1
-
468JP-F4132-00-00 DEFLECTOR 2DEFLECTOR 2
-
478JP-F1983-30-00 HOOD 2HOOD 2
-
488JP-F198H-00-00 ...HOOD 4...HOOD 4
-
498JP-K7554-00-00 ......PROTECTOR 4......PROTECTOR 4
-
508JP-K7555-00-00 ......PROTECTOR 5......PROTECTOR 5
-
518JP-K7556-00-00 ......PROTECTOR 6......PROTECTOR 6
-
528JP-RA523-00-00 RIVET, 14RIVET, 14
-
538JP-F1982-30-00 HOOD 1HOOD 1
-
548JP-F197H-00-00 ...HOOD 3...HOOD 3
-
558JP-K811V-00-00 ......PROTECTOR 1......PROTECTOR 1
-
568JP-K811W-00-00 ......PROTECTOR 2......PROTECTOR 2
-
578JP-K811X-00-00 ......PROTECTOR 3......PROTECTOR 3
-
588JM-RA411-00-00 ......WASHER, PLAIN 0.194......WASHER, PLAIN 0.194
-
598JP-K8121-00-00 ......REINFORCEMENT 1......REINFORCEMENT 1
-
608JP-RA350-00-00 NUT, CLIP 1/4NUT, CLIP 1/4
-
618JP-RA513-00-00 RIVET, 4RIVET, 4
-
628JM-RA201-00-00 SCREW, TAPPING 10-12X5/8SCREW, TAPPING 10-12X5/8
-
638JP-K8181-00-00 PLATE 1PLATE 1
-
648JP-G1138-00-00 SEAL, EXT. 1SEAL, EXT. 1
-
658JP-RA533-00-00 RIVET, 21RIVET, 21
-
668JP-F1962-00-00 PATCH 2PATCH 2
-
678JP-F1961-00-00 PATCH 1PATCH 1
-
688JP-RA290-00-00 SCREW, 10-12X3/4SCREW, 10-12X3/4
