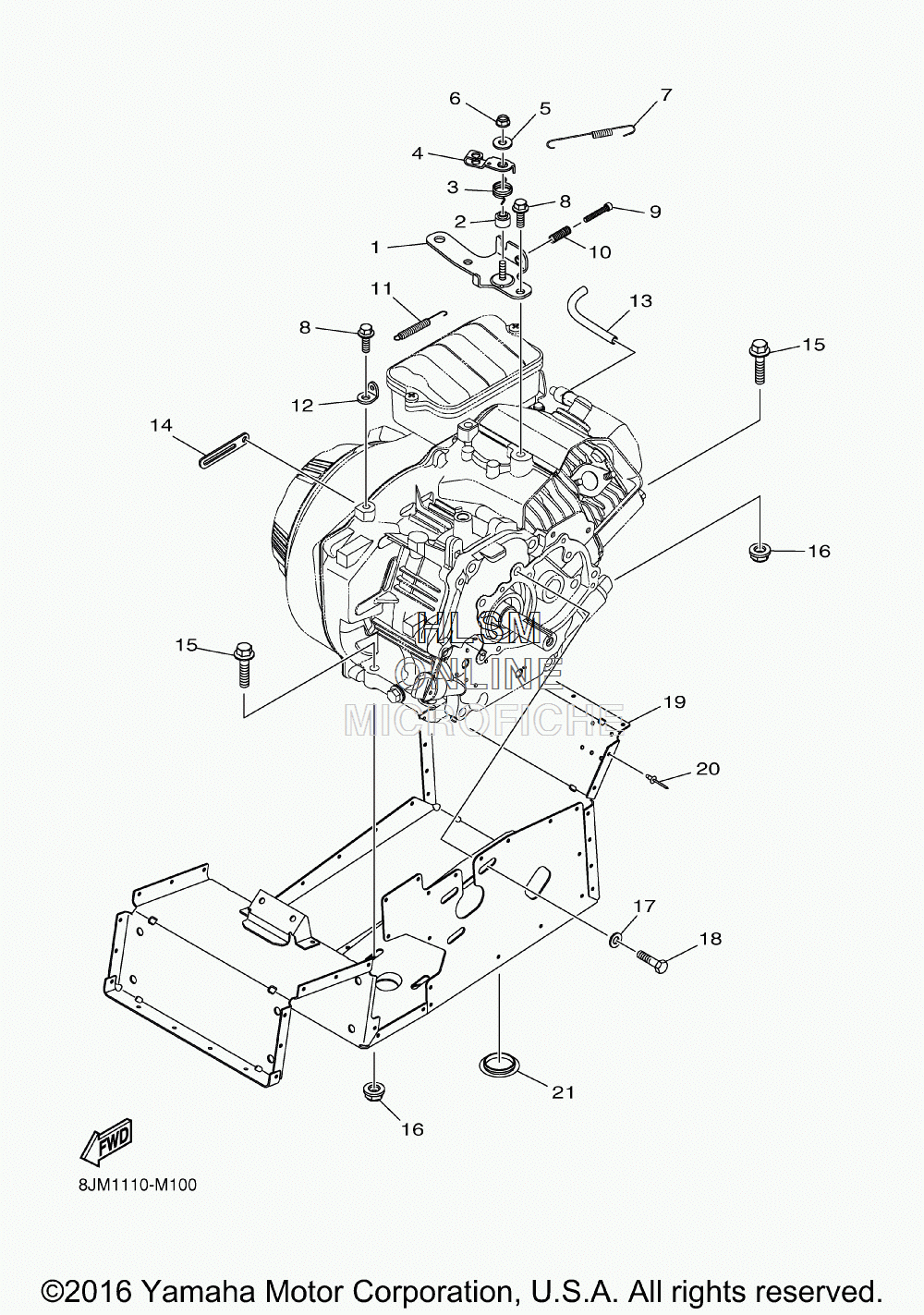

FRONT FRAME COMP. 1 для Yamaha SRX 1250 - 2016 года выпуска
-
№АртикулНазвание
-
18JM-E3733-00-00 BRACKET, THROTTLEBRACKET, THROTTLE
-
28JM-E3576-00-00 SPACERSPACER
-
38JM-RAD00-00-00 SPRING, TORSION 1SPRING, TORSION 1
-
48JM-E3726-00-00 LEVER, THROTTLELEVER, THROTTLE
-
58JM-RA400-00-00 WASHER, PLAIN 1/4WASHER, PLAIN 1/4
-
68JM-RA300-00-00 NUT, SELF-LOCKING 1/4-20NUT, SELF-LOCKING 1/4-20
-
78JM-RAD01-00-00 SPRING, TENSION 1SPRING, TENSION 1
-
88JM-RA100-00-00 BOLT, FLANGE M8-1.25X16BOLT, FLANGE M8-1.25X16
-
98JM-RA101-00-00 BOLT, HEX. SOCKET 10-32X1.5BOLT, HEX. SOCKET 10-32X1.5
-
108JM-RAD02-00-00 SPRING, COMPRESSION 1SPRING, COMPRESSION 1
-
118JM-RAD03-00-00 SPRING, TENSION 2SPRING, TENSION 2
-
128JM-E3923-00-00 RETAINER, SPRINGRETAINER, SPRING
-
138JM-RA900-00-00 HOSE, 13HOSE, 13
-
148JM-RAB00-00-00 CLAMP, 1CLAMP, 1
-
158JM-RA104-00-00 BOLT, FLANGE 5/16-18X1.25BOLT, FLANGE 5/16-18X1.25
-
168JM-RA303-00-00 NUT, SELF-LOCKING 5/16-18NUT, SELF-LOCKING 5/16-18
-
178JM-RA403-00-00 WASHER, PLAIN 5/16WASHER, PLAIN 5/16
-
188JM-RA105-00-00 BOLT, HEXAGON 5/16-24X0.75BOLT, HEXAGON 5/16-24X0.75
-
198JM-F1940-00-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
208JM-RA500-00-00 RIVET, BLIND 1RIVET, BLIND 1
-
218JM-RA602-00-00 PLUG, 3PLUG, 3
