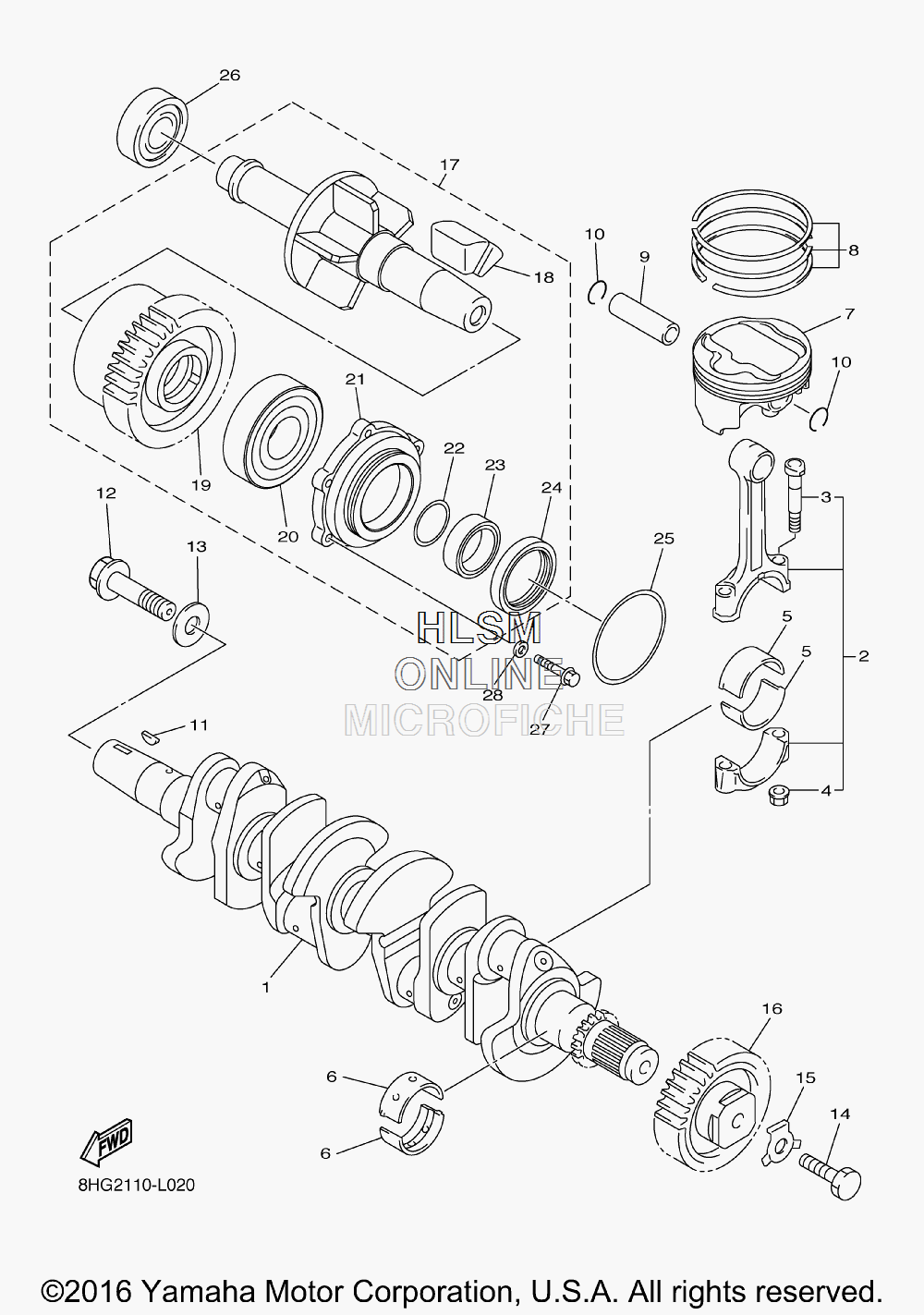

CRANKSHAFT W/ PISTON ASSY для Yamaha APEX XTX 1.75 LE - 2017 года выпуска
-
№АртикулНазвание
-
18FP-11411-00-00 CRANKSHAFTCRANKSHAFT
-
28HG-11650-00-00 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
35JW-11654-00-00 ...BOLT, CONNECTING ROD...BOLT, CONNECTING ROD
-
490179-08327-00 ...NUT...NUT
-
53GM-11656-A0-00 PLANE BEARING, CONNECTING ROD (OPT) (WHITE)PLANE BEARING, CONNECTING ROD (OPT) (WHITE)
-
53GM-11656-B0-00 PLANE BEARING, CONNECTING ROD (OPT) (PURPLE)PLANE BEARING, CONNECTING ROD (OPT) (PURPLE)
-
53GM-11656-10-00 PLANE BEARING, CONNECTING ROD (OPT) (BLACK)PLANE BEARING, CONNECTING ROD (OPT) (BLACK)
-
53GM-11656-00-00 PLANE BEARING, CONNECTING ROD (OPT) (BLUE)PLANE BEARING, CONNECTING ROD (OPT) (BLUE)
-
68FA-11416-B0-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (PURPLE)PLANE BEARING, CRANKSHAFT 1 (OPT) (PURPLE)
-
68FA-11416-00-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BLUE)PLANE BEARING, CRANKSHAFT 1 (OPT) (BLUE)
-
68FA-11416-10-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BLACK)PLANE BEARING, CRANKSHAFT 1 (OPT) (BLACK)
-
68FA-11416-20-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BROWN)PLANE BEARING, CRANKSHAFT 1 (OPT) (BROWN)
-
68FA-11416-A0-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (WHITE)PLANE BEARING, CRANKSHAFT 1 (OPT) (WHITE)
-
78HG-11631-00-00 PISTON (STD)PISTON (STD)
-
88HG-11603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
94XV-11633-00-00 PIN, PISTONPIN, PISTON
-
1090468-12069-00 CLIPCLIP
-
1190280-05029-00 KEY, WOODRUFFKEY, WOODRUFF
-
1290105-12032-00 BOLT, FLANGEBOLT, FLANGE
-
1390201-121H0-00 WASHER, PLATEWASHER, PLATE
-
1490101-10009-00 BOLTBOLT
-
1590215-10001-00 WASHER, LOCKWASHER, LOCK
-
168FP-16111-00-00 GEAR, PRIMARY DRIVEGEAR, PRIMARY DRIVE
-
178FP-11406-00-00 SHAFT ASSYSHAFT ASSY
-
188FP-16155-00-00 ...ABSORBER 1...ABSORBER 1
-
198FP-16151-00-00 ...GEAR, PRIMARY DRIVEN...GEAR, PRIMARY DRIVEN
-
2093306-30636-00 ...BEARING...BEARING
-
218FP-16775-00-00 ...HOUSING, BEARING...HOUSING, BEARING
-
2293210-30660-00 ...O-RING...O-RING
-
238FA-11478-00-00 ...COLLAR...COLLAR
-
2493102-40023-00 ...OIL SEAL...OIL SEAL
-
2593210-56459-00 O-RINGO-RING
-
2693306-27209-00 BEARINGBEARING
-
2795812-06025-00 BOLT, FLANGEBOLT, FLANGE
-
2890430-06166-00 GASKETGASKET
