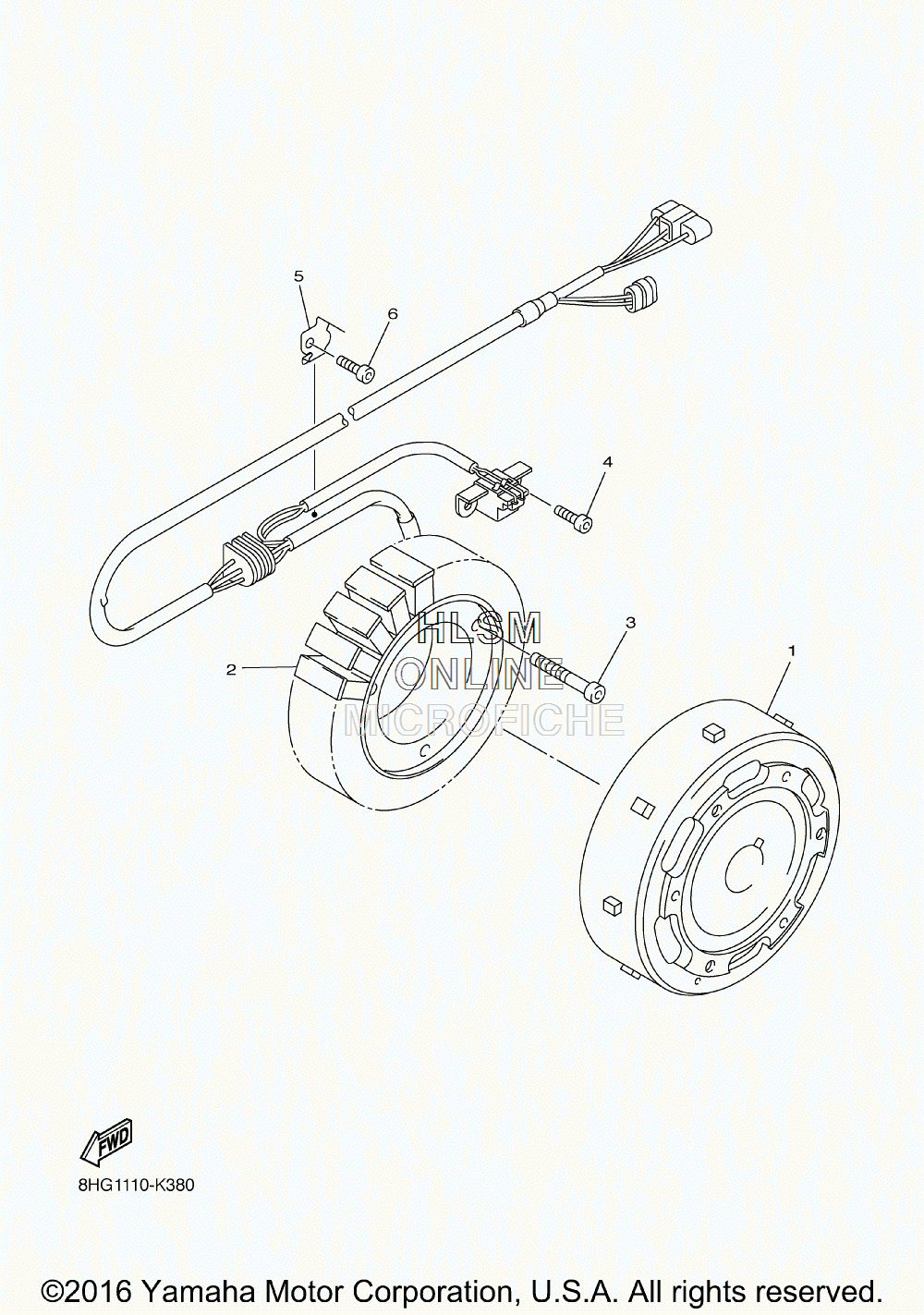

ELECTRICAL - MAGNETO ASSEMBLY для Yamaha APEX XTX - 2017 года выпуска
-
№АртикулНазвание
-
18HG-81450-00-00 ROTOR ASSYROTOR ASSY
-
28HG-81410-00-00 STATOR ASSYSTATOR ASSY
-
390110-06208-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
490110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
58FP-15113-00-00 PLATEPLATE
-
690110-06187-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
