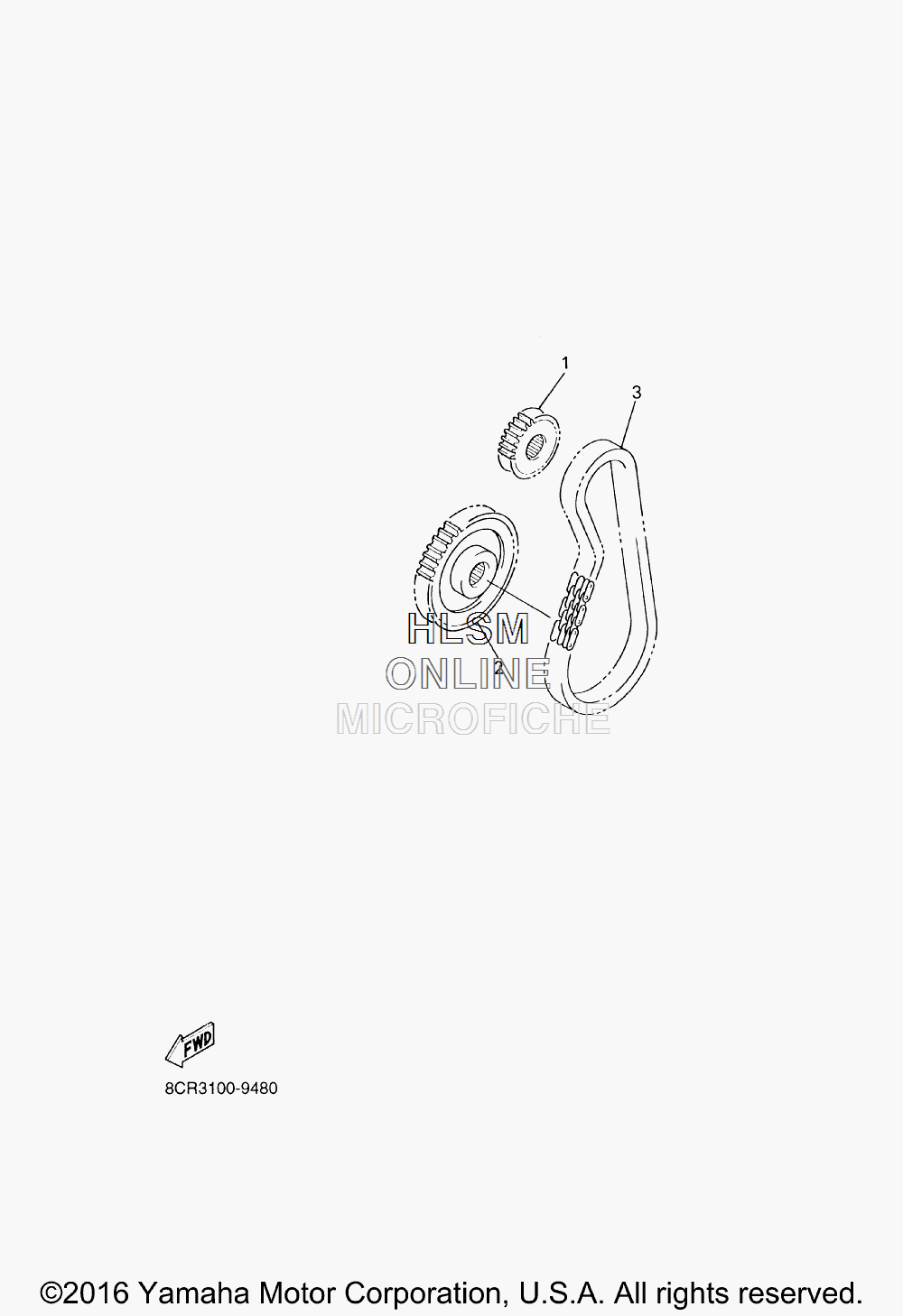

CHAINCASE - SPROCKET AND CHAINS (OPTION) для Yamaha PHAZER RTX - 2017 года выпуска
![](/wa-data/public/shop/sheme/yamaha/snow/b22025a6-83f0-4811-b95c-fd6d5a34b777.gif)
-
№АртикулНазвание
-
18GC-17682-80-00 SPROCKET, CHAIN DRIVE (18T) (OPT)SPROCKET, CHAIN DRIVE (18T) (OPT)
-
18GC-17682-70-00 SPROCKET, CHAIN DRIVE (17T) (OPT)SPROCKET, CHAIN DRIVE (17T) (OPT)
-
18GC-17682-90-00 SPROCKET, CHAIN DRIVE (19T) (OPT)SPROCKET, CHAIN DRIVE (19T) (OPT)
-
18GC-17682-00-00 SPROCKET, CHAIN DRIVE (20T) (OPT)SPROCKET, CHAIN DRIVE (20T) (OPT)
-
28GC-47587-10-00 SPROCKET, CHAIN DRIVEN (41T) (OPT)SPROCKET, CHAIN DRIVEN (41T) (OPT)
-
28GC-47587-60-00 SPROCKET, CHAIN DRIVEN (46T) (OPT)SPROCKET, CHAIN DRIVEN (46T) (OPT)
-
28GC-47587-00-00 SPROCKET, CHAIN DRIVEN (40T) (OPT)SPROCKET, CHAIN DRIVEN (40T) (OPT)
-
28GC-47587-50-00 SPROCKET, CHAIN DRIVEN (45T) (OPT)SPROCKET, CHAIN DRIVEN (45T) (OPT)
-
394591-63080-00 CHAIN (80L) (OPT)CHAIN (80L) (OPT)
-
394591-63082-00 CHAIN (82L) (OPT)CHAIN (82L) (OPT)
