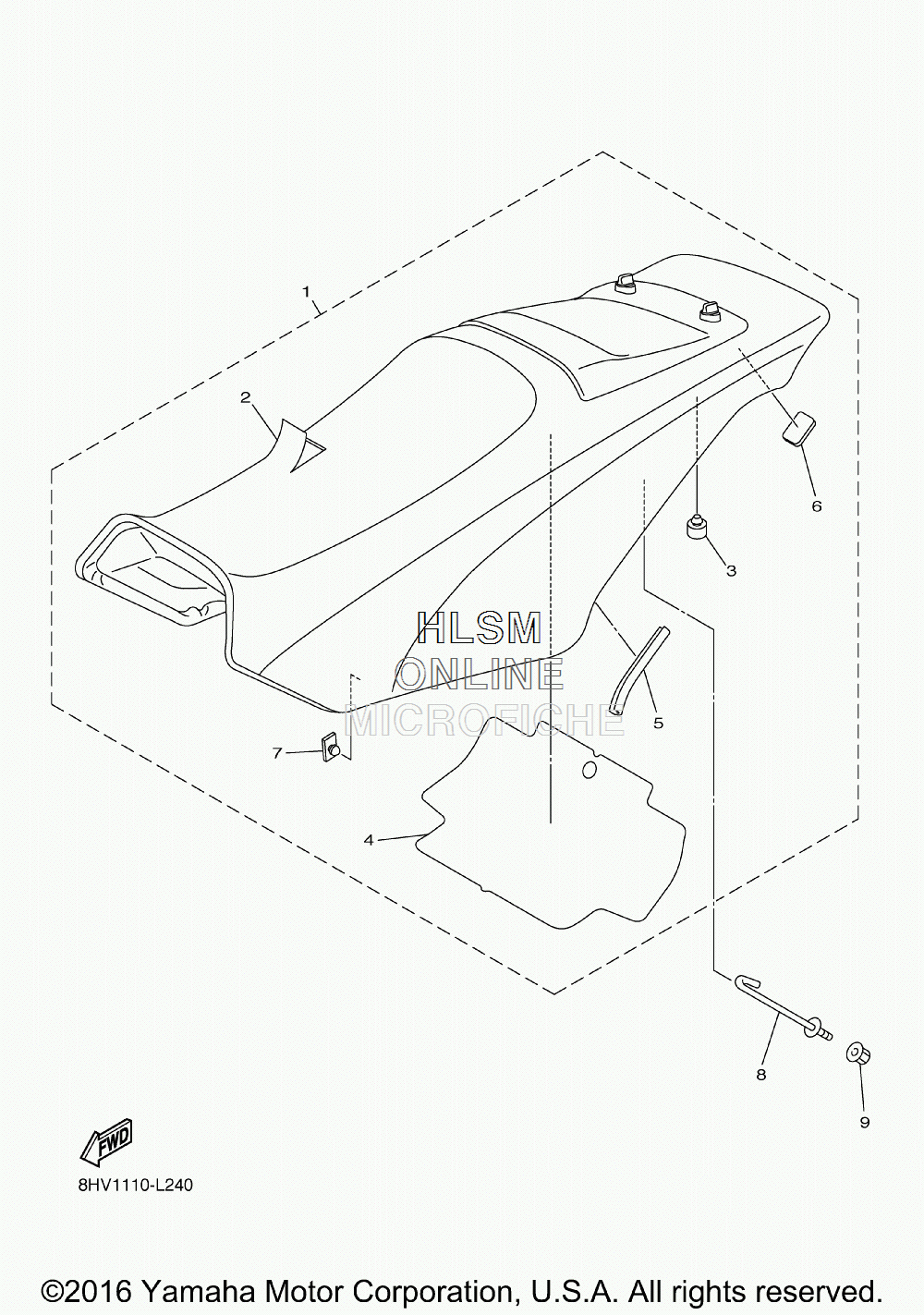

SEAT ASSY для Yamaha RS VECTOR XTX - 2017 года выпуска
-
№АртикулНазвание
-
18HV-24710-30-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
28HV-2470F-30-00 ...SEAT COVER COMP....SEAT COVER COMP.
-
38FA-27114-00-00 ...STOPPER...STOPPER
-
48FA-2476U-10-00 ...PROTECTOR 1...PROTECTOR 1
-
58FP-24747-00-00 ...DAMPER, SEAT...DAMPER, SEAT
-
68FR-2476U-00-00 ...PROTECTOR 1...PROTECTOR 1
-
7509-24724-00-00 ...DAMPER, SEAT...DAMPER, SEAT
-
88FA-24755-00-00 HOOK, SEATHOOK, SEAT
-
995602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
