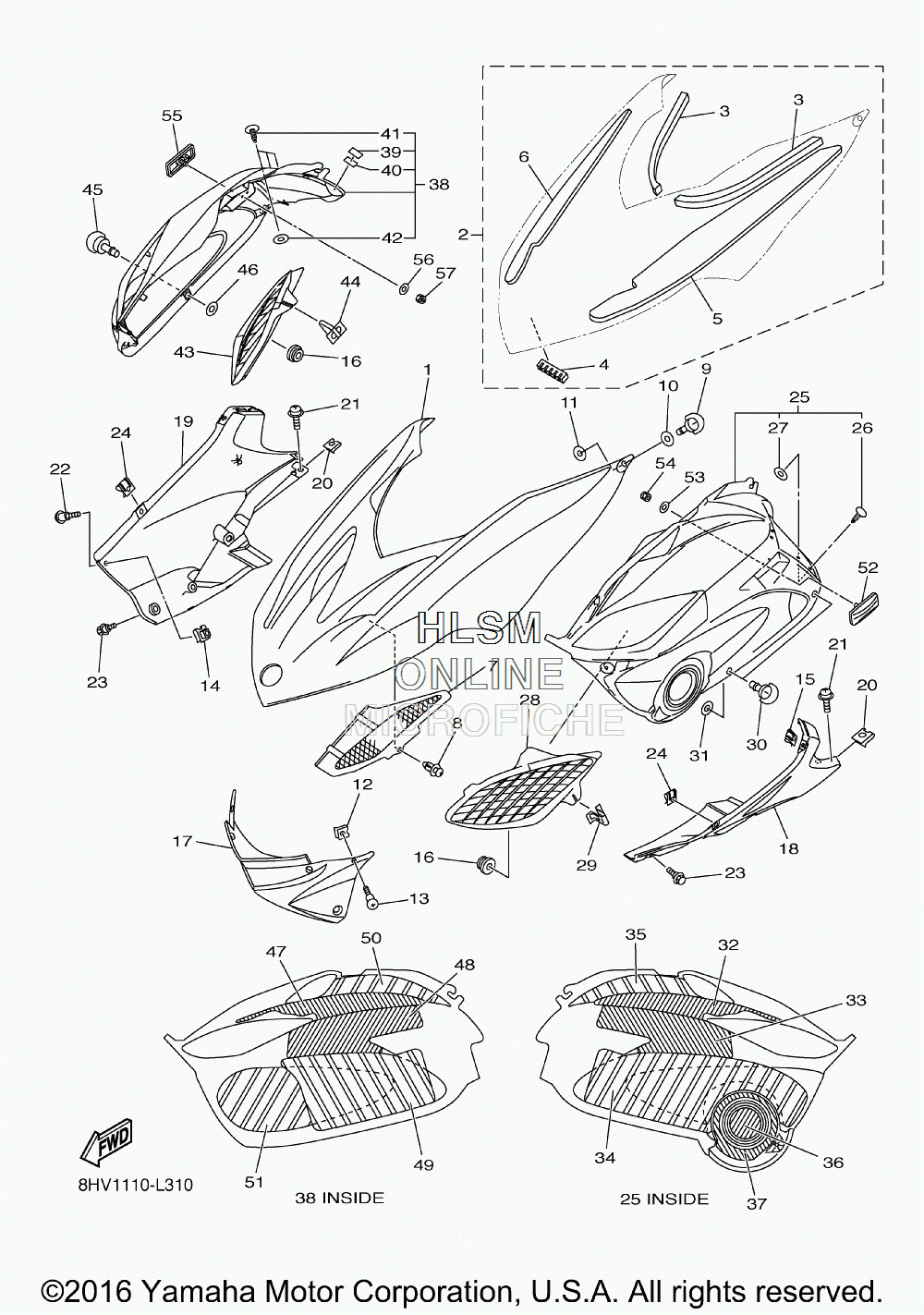

HOOD ASSY для Yamaha RS VECTOR - 2017 года выпуска
-
№АртикулНазвание
-
18FP-77111-00-P0 SHROUD (DPBMC)SHROUD (DPBMC)
-
28FP-W7726-00-00 LINING SETLINING SET
-
38FP-77165-00-00 ...TRIM 1...TRIM 1
-
48FP-77123-00-00 ...GUIDE 1...GUIDE 1
-
58FP-77271-00-00 ...DAMPER, NOISE 11...DAMPER, NOISE 11
-
68FP-77271-10-00 ...DAMPER, NOISE 11...DAMPER, NOISE 11
-
78FP-77133-00-00 LOUVER 3LOUVER 3
-
890269-06081-00 RIVETRIVET
-
98HG-28386-00-00 HEADHEAD
-
108HG-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
118HR-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
1290183-06053-00 NUT, SPRINGNUT, SPRING
-
1390154-06009-00 SCREW, BINDINGSCREW, BINDING
-
1490183-06100-00 NUT, SPRINGNUT, SPRING
-
154XV-2177L-01-00 PLATE, SPRINGPLATE, SPRING
-
1690480-13019-00 GROMMETGROMMET
-
178FA-21912-00-00 PANEL, SUB FRAME 1PANEL, SUB FRAME 1
-
188GM-21982-00-00 HOOD 1HOOD 1
-
198FP-21983-00-00 HOOD 2HOOD 2
-
2090183-06053-00 NUT, SPRINGNUT, SPRING
-
2190159-06011-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
2290154-06009-00 SCREW, BINDINGSCREW, BINDING
-
2390109-06220-00 BOLTBOLT
-
244XV-2177L-01-00 PLATE, SPRINGPLATE, SPRING
-
258GM-2197A-02-00 HOOD ASSY 3HOOD ASSY 3
-
2690269-07064-00 ...RIVET...RIVET
-
2790202-07002-00 ...WASHER, PLATE...WASHER, PLATE
-
288FP-77109-00-00 LOUVER 5LOUVER 5
-
2990468-06001-00 CLIPCLIP
-
308HG-28386-00-00 HEADHEAD
-
318HR-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
328FP-77272-00-00 DAMPER, NOISE 12DAMPER, NOISE 12
-
338FP-77273-00-00 DAMPER, NOISE 13DAMPER, NOISE 13
-
348GM-77274-00-00 DAMPER, NOISE 14DAMPER, NOISE 14
-
358FP-77196-00-00 DAMPER, SHROUDDAMPER, SHROUD
-
368GM-77271-00-00 DAMPER, NOISE 11DAMPER, NOISE 11
-
378GM-77272-00-00 DAMPER, NOISE 12DAMPER, NOISE 12
-
388FR-2198A-03-00 HOOD ASSY 4HOOD ASSY 4
-
398FR-7717F-00-00 ...TAPE 2...TAPE 2
-
408FR-77151-00-00 ...PAD 1...PAD 1
-
4190269-07064-00 ...RIVET...RIVET
-
4290202-07002-00 ...WASHER, PLATE...WASHER, PLATE
-
438FP-77108-00-00 LOUVER 6LOUVER 6
-
4490468-06001-00 CLIPCLIP
-
458HG-28386-00-00 HEADHEAD
-
468HR-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
478FP-77275-00-00 DAMPER, NOISE 15DAMPER, NOISE 15
-
488FP-77276-01-00 DAMPER, NOISE 16DAMPER, NOISE 16
-
498FP-77277-01-00 DAMPER, NOISE 17DAMPER, NOISE 17
-
508FP-77196-10-00 DAMPER, SHROUDDAMPER, SHROUD
-
518FP-78316-10-00 DAMPERDAMPER
-
528FR-77185-00-00 PLATE 1PLATE 1
-
5390201-05036-00 WASHER, PLATEWASHER, PLATE
-
5495702-05300-00 NUT, NYLONNUT, NYLON
-
558FR-77185-00-00 PLATE 1PLATE 1
-
5690201-05036-00 WASHER, PLATEWASHER, PLATE
-
5795702-05300-00 NUT, NYLONNUT, NYLON
