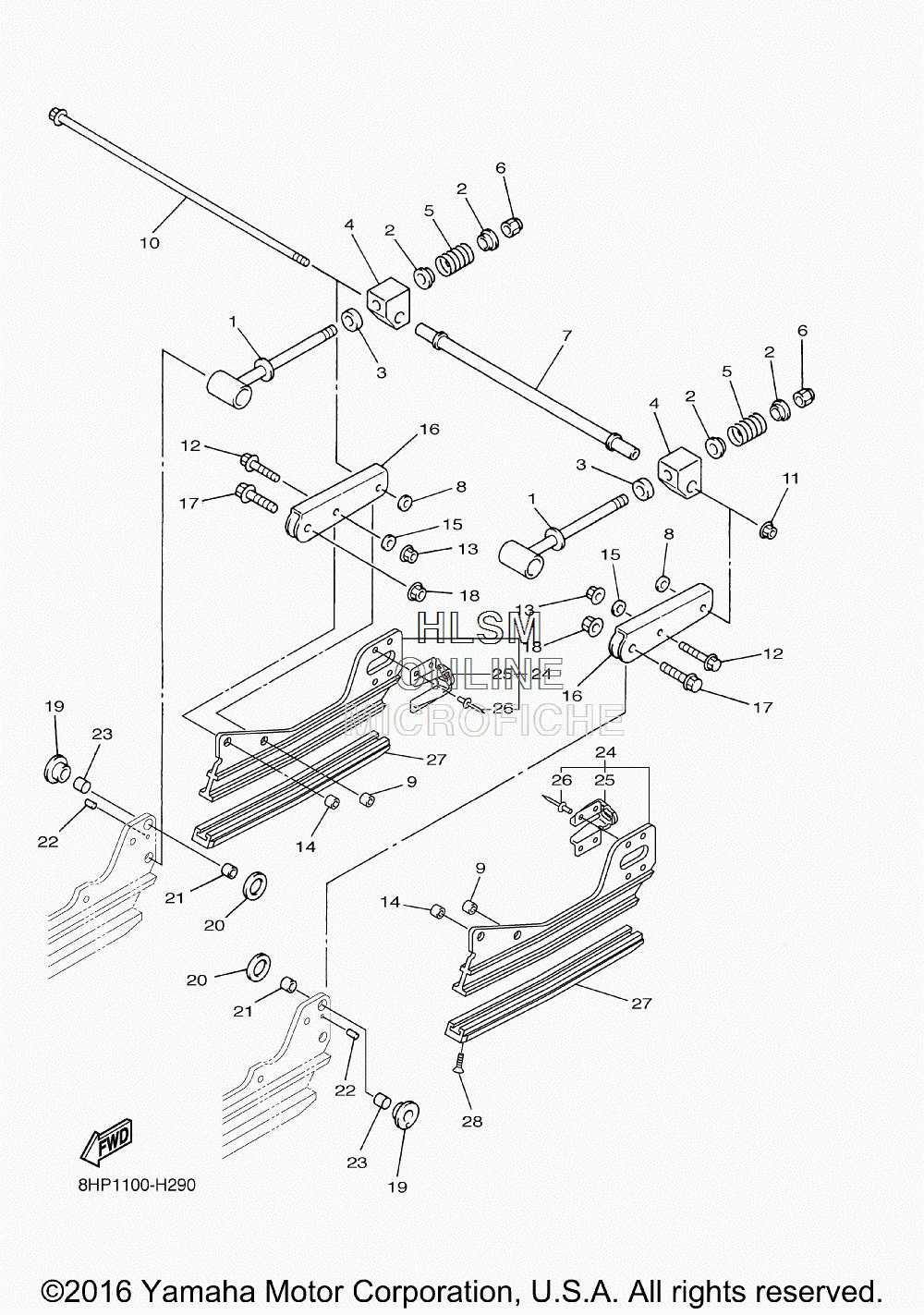

PIVOT ARM W/ SHOCK для Yamaha RS VENTURE TF - 2017 года выпуска
-
№АртикулНазвание
-
183R-47337-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
283R-23768-00-00 SEAT, SPRING 1SEAT, SPRING 1
-
383R-47335-00-00 SPRINGSPRING
-
483R-47446-00-00 HOOK 1HOOK 1
-
590501-407E4-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
695702-12300-00 NUT, NYLONNUT, NYLON
-
78FM-47478-00-00 COLLAR 2COLLAR 2
-
890201-08649-00 WASHER, PLATEWASHER, PLATE
-
990387-082J1-00 COLLARCOLLAR
-
1090105-08069-00 BOLT, FLANGEBOLT, FLANGE
-
1195607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1295812-08035-00 BOLT, FLANGEBOLT, FLANGE
-
1395602-08200-00 NUT, U FLANGENUT, U FLANGE
-
1490387-082J1-00 COLLARCOLLAR
-
1590201-08649-00 WASHER, PLATEWASHER, PLATE
-
168FM-47333-00-00 ARM, PIVOT 3ARM, PIVOT 3
-
1795817-10030-00 BOLT, FLANGEBOLT, FLANGE
-
1890185-10115-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1990387-1815A-00 COLLARCOLLAR
-
2090202-22238-00 WASHER, PLATEWASHER, PLATE
-
2190387-1014Y-00 COLLARCOLLAR
-
2291609-30008-00 PIN, SPRINGPIN, SPRING
-
2390380-16109-00 BUSH, SOLIDBUSH, SOLID
-
248FM-W4741-10-00 FRAME, SLIDINGFRAME, SLIDING
-
258DM-4741B-00-00 ...BRACKET...BRACKET
-
268V0-47468-00-00 ...RIVET...RIVET
-
278FM-47424-00-00 RUNNER, SLIDING 4RUNNER, SLIDING 4
-
2890151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
