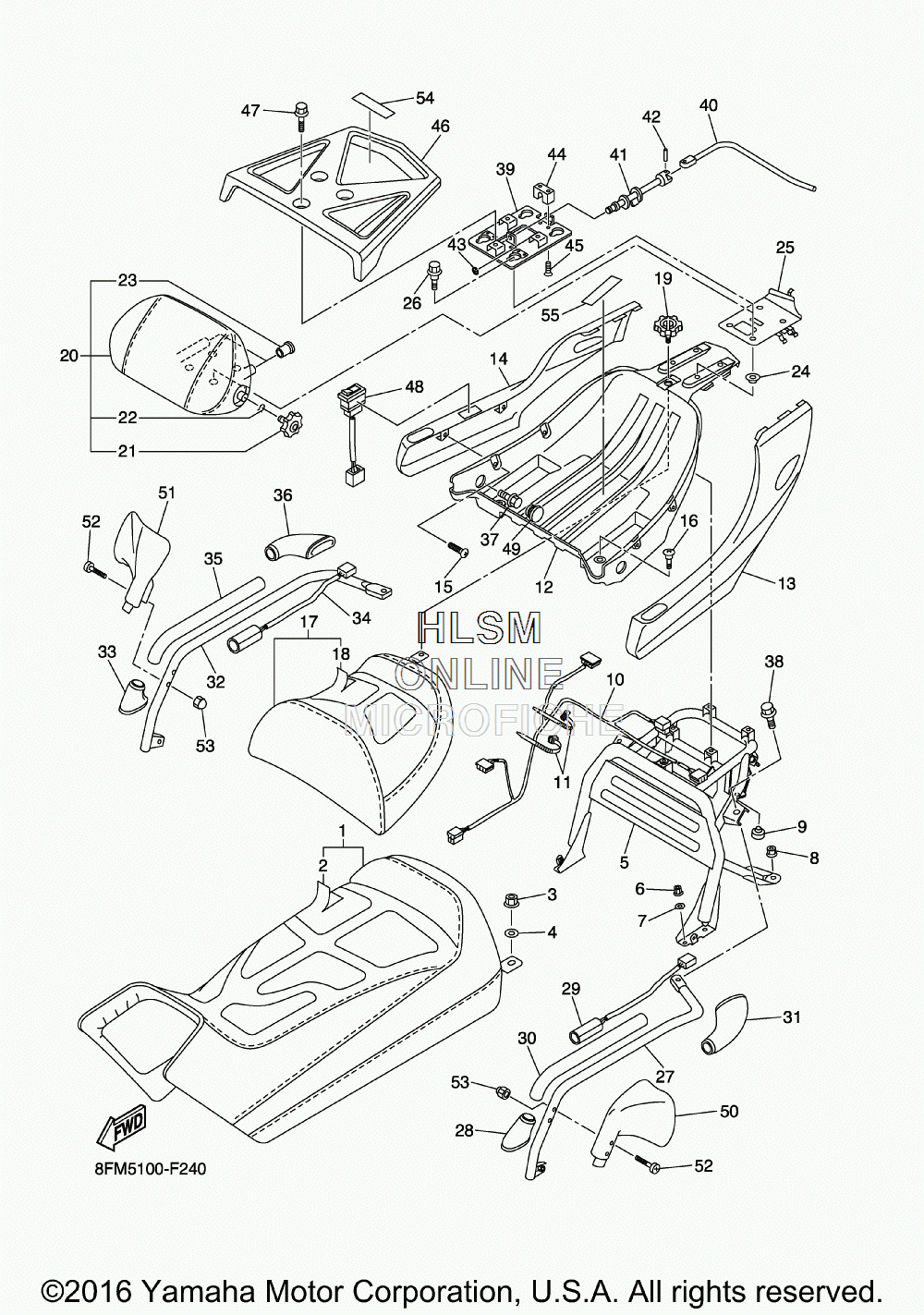

SEAT ASSY для Yamaha RS VENTURE - 2017 года выпуска
-
№АртикулНазвание
-
18ET-24710-00-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
28ET-2470F-00-00 ...SEAT COVER COMP....SEAT COVER COMP.
-
395702-08300-00 NUT, NYLONNUT, NYLON
-
490201-08053-00 WASHER, PLATEWASHER, PLATE
-
58ET-24766-01-00 REINFORCEMENTREINFORCEMENT
-
695702-08300-00 NUT, NYLONNUT, NYLON
-
790201-08053-00 WASHER, PLATEWASHER, PLATE
-
895602-08200-00 NUT, U FLANGENUT, U FLANGE
-
98FA-24768-00-00 STOPPERSTOPPER
-
108ET-84717-00-00 CORD, TAILLIGHTCORD, TAILLIGHT
-
1190464-13073-00 CLAMPCLAMP
-
128ET-24756-01-00 COVER, TAILCOVER, TAIL
-
138ET-2471K-00-00 COVER, TAIL 1COVER, TAIL 1
-
148ET-2472K-00-00 COVER, TAIL 2COVER, TAIL 2
-
1597707-50025-00 SCREW, TAPPINGSCREW, TAPPING
-
1690154-06009-00 SCREW, BINDINGSCREW, BINDING
-
178ET-24750-00-00 TANDEM SEAT ASSYTANDEM SEAT ASSY
-
188ET-2470H-00-00 ......SEAT COVER COMP., 2......SEAT COVER COMP., 2
-
198ET-24598-00-00 KNOBKNOB
-
208ET-24790-10-00 SEAT BACK ASSYSEAT BACK ASSY
-
218DM-24598-01-00 ...KNOB...KNOB
-
228DM-24519-00-00 ...CLIP...CLIP
-
2390338-18122-00 ...PLUG...PLUG
-
2490387-072Y3-00 COLLARCOLLAR
-
258ET-2479K-00-00 PLATE, LOCKPLATE, LOCK
-
268ET-24834-00-00 BOLTBOLT
-
278ET-2474F-00-00 STAY, FRONT 1STAY, FRONT 1
-
288ET-2842M-00-00 COVER 1COVER 1
-
298GS-2474B-00-00 ASSIST GRIP WARMER ASSY 1ASSIST GRIP WARMER ASSY 1
-
308ET-24796-00-00 COVERCOVER
-
318ET-2843J-00-00 COVER 3COVER 3
-
328ET-2474G-00-00 STAY, FRONT 2STAY, FRONT 2
-
338ET-2842N-00-00 COVER 2COVER 2
-
348GS-2474B-00-00 ASSIST GRIP WARMER ASSY 1ASSIST GRIP WARMER ASSY 1
-
358ET-24796-00-00 COVERCOVER
-
368ET-2844J-00-00 COVER 4COVER 4
-
3795822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
3895822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
398ET-2476E-00-00 PLATE, GUIDE 2PLATE, GUIDE 2
-
408ET-2477F-00-00 LEVER, SEATLEVER, SEAT
-
418ET-2478C-00-00 BAR, SEAT LEVERBAR, SEAT LEVER
-
4291609-40020-00 PIN, SPRINGPIN, SPRING
-
4399001-07600-00 CIRCLIPCIRCLIP
-
448ET-24847-00-00 HOLDER 1HOLDER 1
-
4590151-06036-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
468ET-24842-00-00 CARRIER, REARCARRIER, REAR
-
4795827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
488ET-82917-00-00 SWITCHSWITCH
-
4990338-28242-00 PLUGPLUG
-
508ET-26141-00-00 GUARD, BRUSH 1GUARD, BRUSH 1
-
518ET-26142-00-00 GUARD, BRUSH 2GUARD, BRUSH 2
-
5298907-06030-00 SCREW, BINDSCREW, BIND
-
5395304-06800-00 NUT, CROWNNUT, CROWN
-
548ET-24897-00-00 EMBLEMEMBLEM
-
558FM-24897-01-00 EMBLEMEMBLEM
