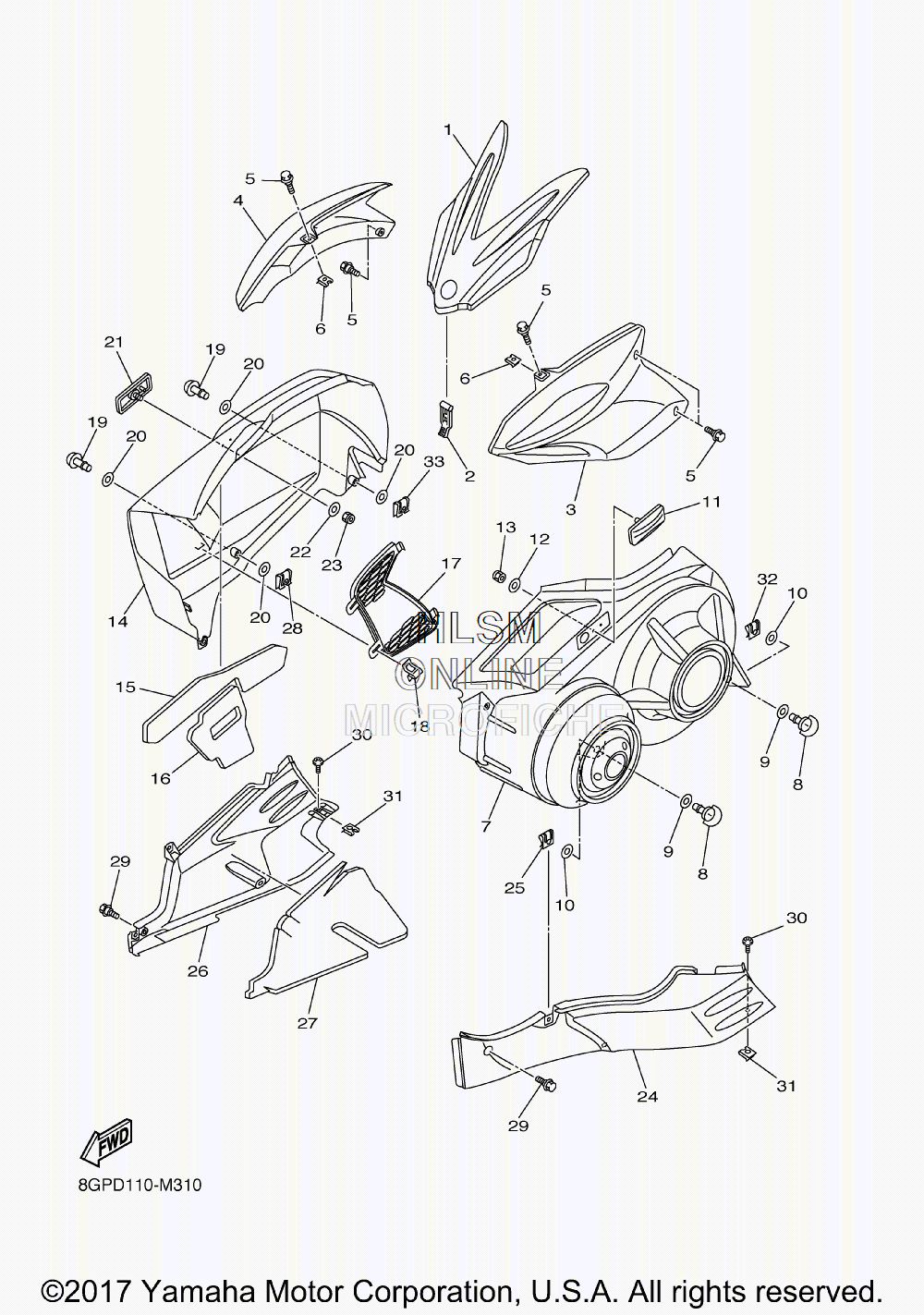

HOOD ASSY для Yamaha PHAZER XTX - 2018 года выпуска
-
№АртикулНазвание
-
18GC-77111-30-00 SHROUDSHROUD
-
259V-21646-00-00 BANDBAND
-
38GC-2835U-30-00 PANEL 1PANEL 1
-
48GC-2835V-30-00 PANEL 2PANEL 2
-
590109-06220-00 BOLTBOLT
-
690183-06100-00 NUT, SPRINGNUT, SPRING
-
78GC-2197H-00-00 HOOD 3HOOD 3
-
88HG-28386-00-00 HEADHEAD
-
98HG-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
108HR-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
118FR-77185-00-00 PLATE 1PLATE 1
-
1290201-05036-00 WASHER, PLATEWASHER, PLATE
-
1395702-05300-00 NUT, NYLONNUT, NYLON
-
148GC-2198H-01-00 HOOD 4HOOD 4
-
158GP-77271-00-00 DAMPER, NOISE 11DAMPER, NOISE 11
-
168GP-77272-00-00 DAMPER, NOISE 12DAMPER, NOISE 12
-
178GC-77134-00-00 LOUVER 4LOUVER 4
-
1890468-06001-00 CLIPCLIP
-
195PW-28386-00-00 HEADHEAD
-
208HW-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
218FR-77185-00-00 PLATE 1PLATE 1
-
2290201-05036-00 WASHER, PLATEWASHER, PLATE
-
2395702-05300-00 NUT, NYLONNUT, NYLON
-
248GC-2196A-00-00 FRAME UNDER 1FRAME UNDER 1
-
254XV-2177L-01-00 PLATE, SPRINGPLATE, SPRING
-
268GC-2196E-00-00 FRAME, UNDER 2FRAME, UNDER 2
-
278GP-77273-00-00 DAMPER, NOISE 13DAMPER, NOISE 13
-
285PW-2177L-01-00 PLATE, SPRINGPLATE, SPRING
-
2990109-06220-00 BOLTBOLT
-
3090149-06105-00 SCREWSCREW
-
3190183-06100-00 NUT, SPRINGNUT, SPRING
-
324XV-2177L-01-00 PLATE, SPRINGPLATE, SPRING
-
335PW-2177L-01-00 PLATE, SPRINGPLATE, SPRING
