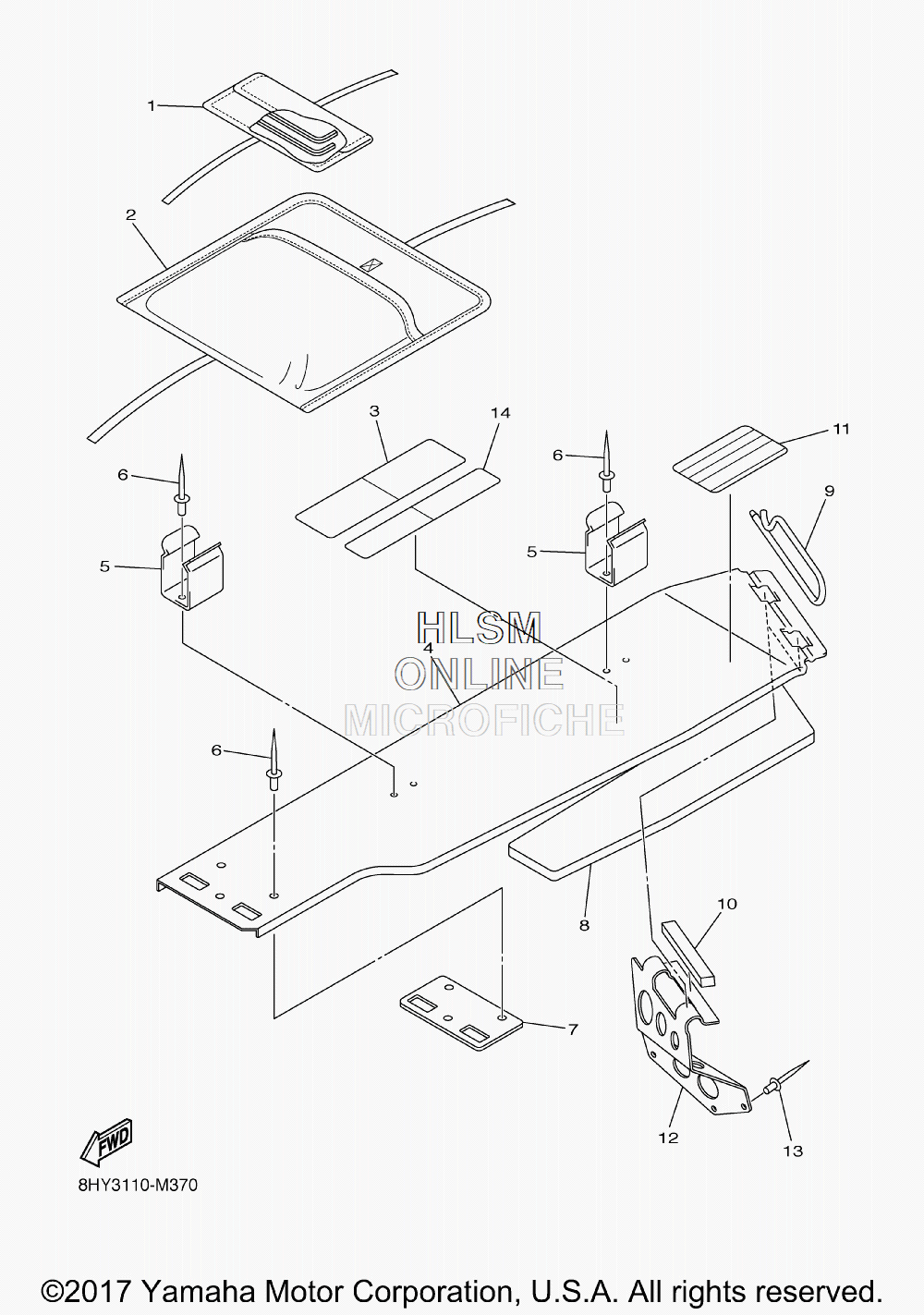

BELT GUARD W/ TOOL BOX для Yamaha RS VENTURE TF BAT - 2018 года выпуска
-
№АртикулНазвание
-
18HF-28100-01-00 TOOL KITTOOL KIT
-
28HF-2811E-00-00 BAGBAG
-
38ES-47578-00-00 LABEL 1LABEL 1
-
48FP-77311-00-00 GUARD, DRIVEGUARD, DRIVE
-
58CR-77338-00-00 STAY, BELTSTAY, BELT
-
690267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
78FP-77373-00-00 PROTECTORPROTECTOR
-
88FP-77461-00-00 DAMPER 1DAMPER 1
-
98CR-77384-01-00 PINPIN
-
108CR-77319-00-00 DAMPER 1DAMPER 1
-
118BD-77762-00-00 LABEL, WARNING 2LABEL, WARNING 2
-
128FA-21973-00-00 HOOKHOOK
-
1390267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
148HF-1417E-00-00 LABEL, CAUTIONLABEL, CAUTION
