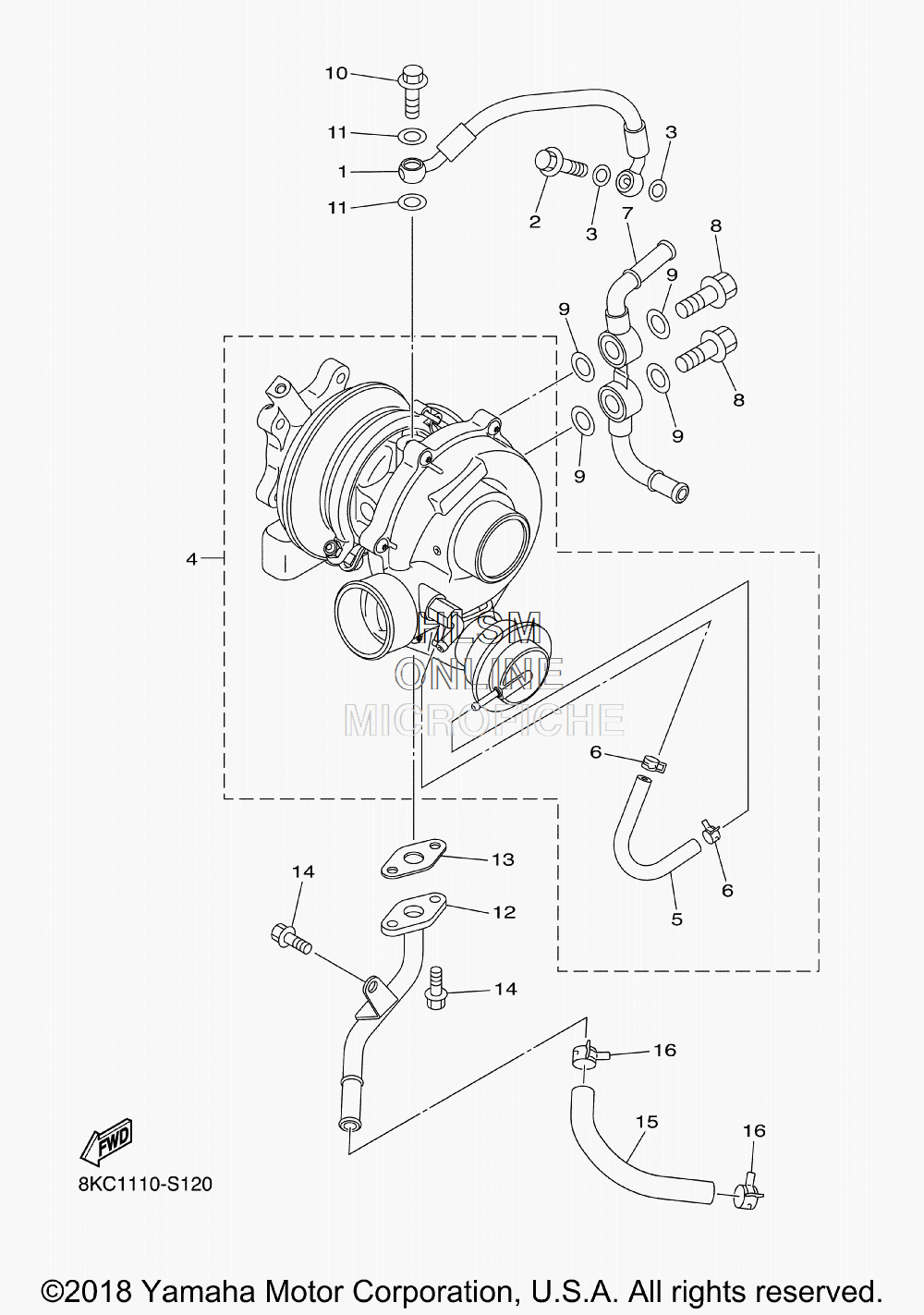

TURBO CHARGER для Yamaha SIDEWINDER B RX LE 153 50TH - 2018 года выпуска
-
№АртикулНазвание
-
18KJ-13465-00-00 HOSE, OIL 2HOSE, OIL 2
-
290401-08004-00 BOLT, UNIONBOLT, UNION
-
390430-08119-00 GASKETGASKET
-
48KJ-14690-00-00 TURBO SUPERCHARGER ASSYTURBO SUPERCHARGER ASSY
-
58KJ-14694-00-00 ...HOSE, TURBO 1...HOSE, TURBO 1
-
68KJ-14919-00-00 ...CLIP...CLIP
-
78KJ-12581-00-00 JOINT, HOSE 1JOINT, HOSE 1
-
890401-12122-00 BOLT, UNION (L=28, P=1.25X2)BOLT, UNION (L=28, P=1.25X2)
-
990430-12202-00 GASKETGASKET
-
1090401-10048-00 BOLT, UNIONBOLT, UNION
-
1190430-10005-00 GASKETGASKET
-
128KJ-13266-00-00 CONNECTOR, OILCONNECTOR, OIL
-
13N26-13477-00-00 GASKETGASKET
-
1495812-06012-00 BOLT, FLANGEBOLT, FLANGE
-
158KC-E3464-00-00 HOSE, OIL 1HOSE, OIL 1
-
168KC-RAC01-00-00 CLIP, 2CLIP, 2
