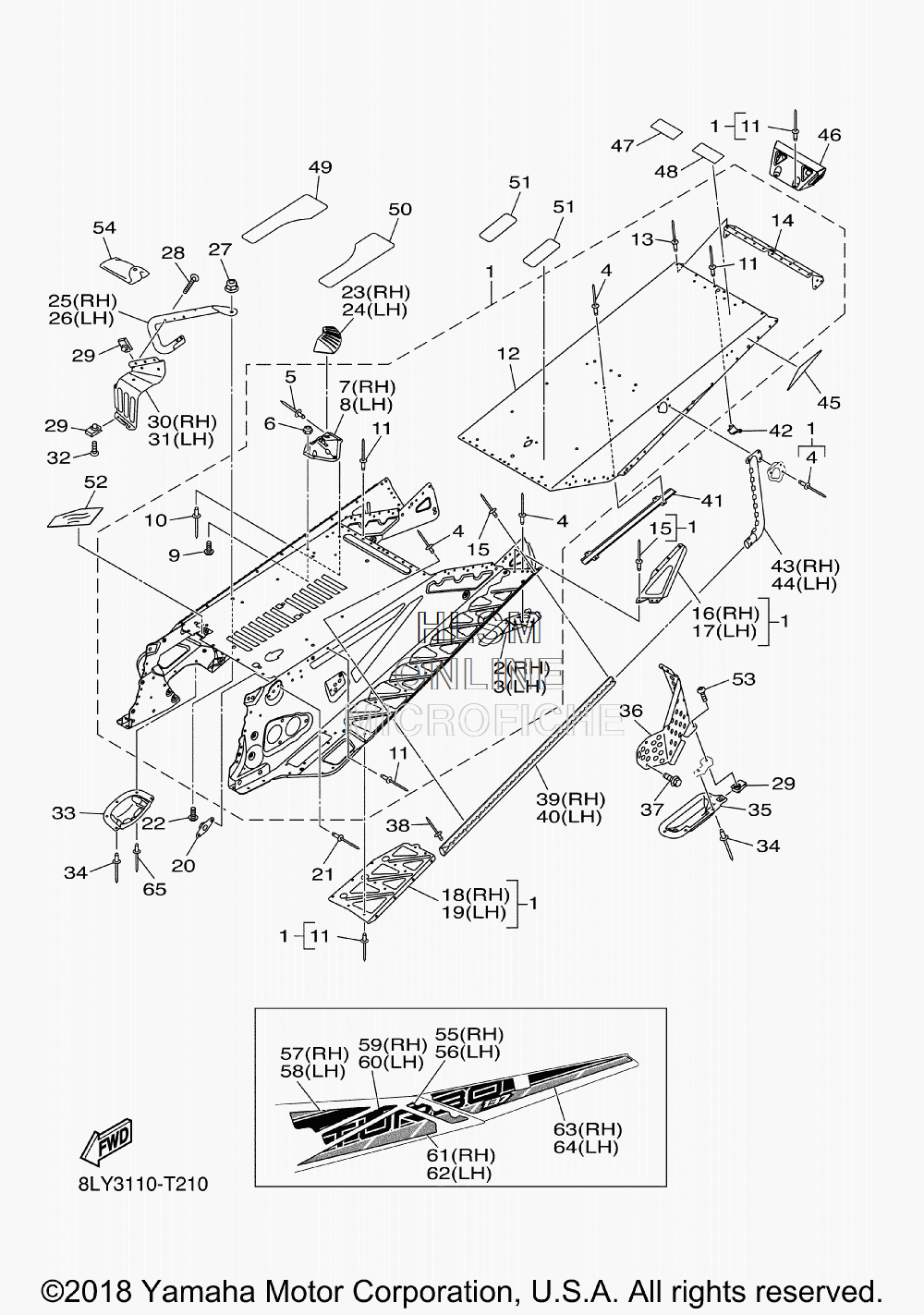

TUNNEL EXTENSION ASSEMBLY для Yamaha SIDEWINDER L TX LE 50TH (EARLY BUILD) - 2018 года выпуска
-
№АртикулНазвание
-
18LY-F1950-10-00 REAR FRAME COMP.REAR FRAME COMP.
-
28LY-F1954-00-00 ...BRACKET, REAR TRACK SUSPENSION...BRACKET, REAR TRACK SUSPENSION
-
38LY-F1944-00-00 ...BRACKET, REAR TRACK SUSPENSION...BRACKET, REAR TRACK SUSPENSION
-
48JP-RA520-00-00 ...RIVET, 11...RIVET, 11
-
58JP-RA532-00-00 ...RIVET, 20...RIVET, 20
-
68JP-RA370-00-00 ...NUT, HEX LOCKING...NUT, HEX LOCKING
-
78LY-F115M-00-00 ...BRACKET, MEMBER 2...BRACKET, MEMBER 2
-
88LY-F115L-00-00 ...BRACKET, MEMBER 1...BRACKET, MEMBER 1
-
98JP-RA239-00-00 ...SCREW, 5...SCREW, 5
-
108JP-RA528-00-00 ...RIVET, 3/16...RIVET, 3/16
-
118JP-RA529-00-00 ...RIVET, 17...RIVET, 17
-
128LY-F1912-00-00 ...PANEL, SUB FRAME 1...PANEL, SUB FRAME 1
-
138JP-RA514-10-00 ...RIVET, 5...RIVET, 5
-
148MT-F1923-00-00 ...REINEFORCEMENT, FRAME REAR 1...REINEFORCEMENT, FRAME REAR 1
-
158JP-RA527-00-00 ...RIVET, 3/16...RIVET, 3/16
-
168LY-F1135-00-00 ...GUSSET...GUSSET
-
178LY-F1134-00-00 ...GUSSET...GUSSET
-
188LR-F1931-00-00 ...REINFORCEMENT, FRAME FRONT 2...REINFORCEMENT, FRAME FRONT 2
-
198LR-F1921-00-00 ...REINEFORCEMENT, FRAME REAR 1...REINEFORCEMENT, FRAME REAR 1
-
208JP-F1919-00-00 BRACKETBRACKET
-
218JP-RA519-00-00 RIVET, 10RIVET, 10
-
228JP-RA272-00-00 SCREW, M8X1.25X20SCREW, M8X1.25X20
-
238JP-F2556-00-00 SUPPORT, FUEL TANK 2SUPPORT, FUEL TANK 2
-
248JP-F2555-00-00 SUPPORT, FUEL TANK 1SUPPORT, FUEL TANK 1
-
258KC-F192E-00-00 REINFORCEMENT, FRAMEREINFORCEMENT, FRAME
-
268KC-F1929-00-00 REINFORCEMENT, FRAME SIDEREINFORCEMENT, FRAME SIDE
-
278JM-RA301-00-00 NUT, SELF-LOCKING M8-1.25NUT, SELF-LOCKING M8-1.25
-
288JP-RA247-00-00 SCREW, M5X0.8X35SCREW, M5X0.8X35
-
298JP-RA353-00-00 NUT, CLIP M5NUT, CLIP M5
-
308LR-F1996-00-00 REINFORCEMENT SUB FRAME FR 2REINFORCEMENT SUB FRAME FR 2
-
318LR-F1995-00-00 REINFORCEMENT SUB FRAME FR 1REINFORCEMENT SUB FRAME FR 1
-
328JP-RA251-00-00 SCREW, M5X1.0X16SCREW, M5X1.0X16
-
338JP-F2147-00-00 PROTECTOR, CHAINPROTECTOR, CHAIN
-
348JP-RA523-00-00 RIVET, 14RIVET, 14
-
358JP-F5717-00-00 PROTECTOR, DISC BRAKEPROTECTOR, DISC BRAKE
-
368LR-F5718-00-00 PROTECTOR, DISC BRAKEPROTECTOR, DISC BRAKE
-
378JP-RA179-00-00 BOLT, FLANGE M6X1.0X12BOLT, FLANGE M6X1.0X12
-
388JP-RA526-00-00 RIVET, 3/16RIVET, 3/16
-
398LY-F1937-00-00 REINFORCEMENT, REAR FOOTREST 2REINFORCEMENT, REAR FOOTREST 2
-
408LY-F1927-00-00 REINFORCEMENT, REAR FOOTREST 1REINFORCEMENT, REAR FOOTREST 1
-
418MH-H2589-00-00 PROTECTER, WIRE HARNESSPROTECTER, WIRE HARNESS
-
428MG-H258A-00-00 EXTENSION, WIRE HARNESSEXTENSION, WIRE HARNESS
-
438MT-F1137-00-00 GUSSETGUSSET
-
448MT-F1136-00-00 GUSSETGUSSET
-
458JP-F151A-00-00 LABEL 1LABEL 1
-
468MT-F117E-00-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
478JP-K7762-70-00 LABEL, WARNING 2 (ENGLISH)LABEL, WARNING 2 (ENGLISH)
-
488JP-K7762-S0-00 LABEL, WARNING 2 (FRENCH)LABEL, WARNING 2 (FRENCH)
-
498JP-F197C-00-00 PROTECTOR, FRAME 3PROTECTOR, FRAME 3
-
508JP-F197B-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
518LN-F195A-00-00 PROTECTOR, FRAME APROTECTOR, FRAME A
-
528KC-K7557-10-00 PROTECTOR 7PROTECTOR 7
-
538JP-RA244-00-00 SCREW, M5X0.8X20SCREW, M5X0.8X20
-
548JP-F8100-00-00 TOOL KITTOOL KIT
-
558MT-F199N-00-00 GRAPHIC 8GRAPHIC 8
-
568MT-F199M-00-00 GRAPHIC 7GRAPHIC 7
-
578MT-F199D-00-00 GRAPHIC 4GRAPHIC 4
-
588MT-F199C-00-00 GRAPHIC 3GRAPHIC 3
-
598MT-F199L-00-00 GRAPHIC 6GRAPHIC 6
-
608MT-F199K-00-00 GRAPHIC 5GRAPHIC 5
-
618MT-F199B-00-00 GRAPHIC 2GRAPHIC 2
-
628MT-F199A-00-00 GRAPHIC 1GRAPHIC 1
-
638LY-F199R-50-00 GRAPHIC 10GRAPHIC 10
-
648LY-F199P-50-00 GRAPHIC 9GRAPHIC 9
-
658JP-RA524-00-00 RIVET, 15RIVET, 15
