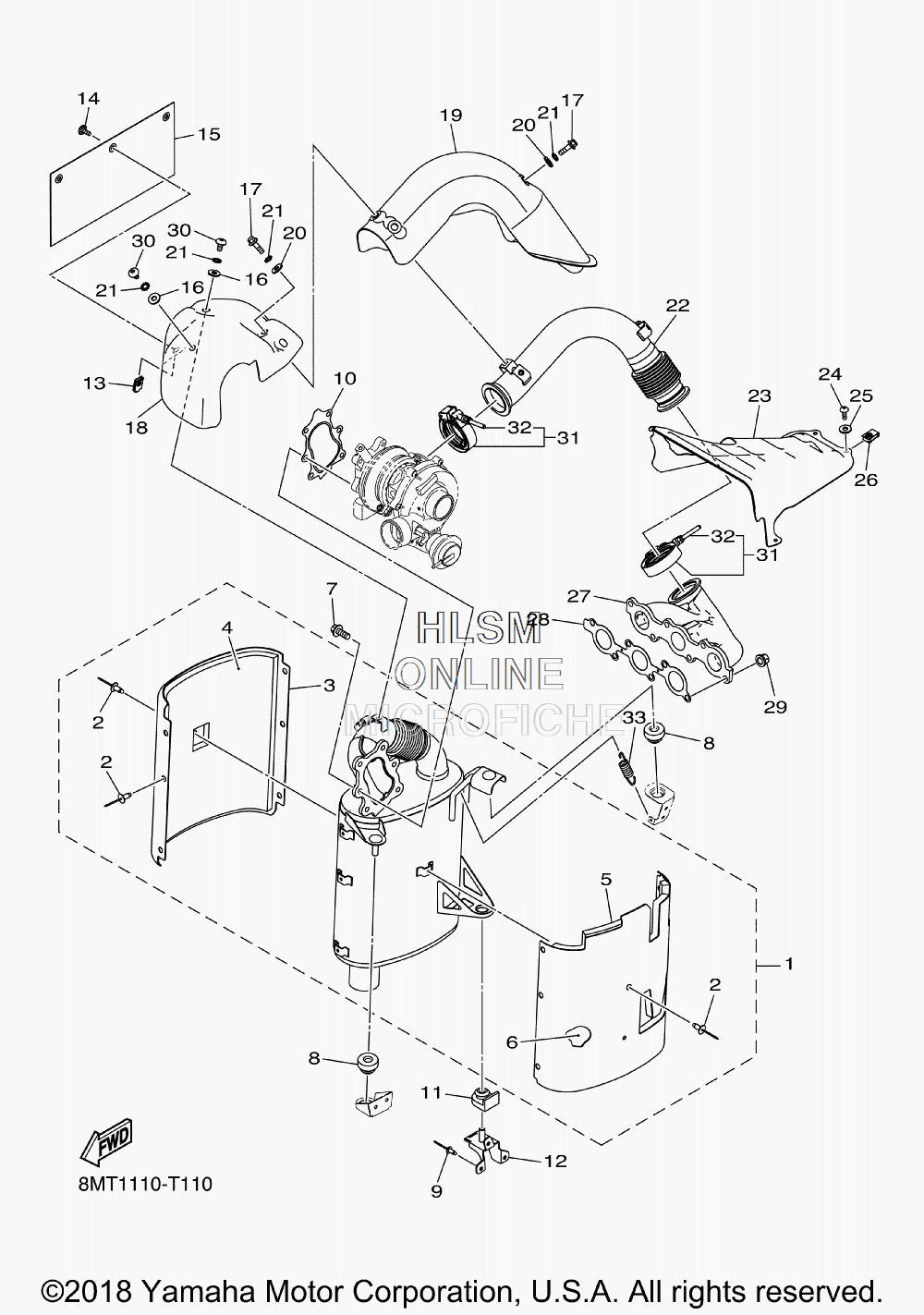

EXHAUST SYSTEM для Yamaha SIDEWINDER X TX SE 141 - 2018 года выпуска
-
№АртикулНазвание
-
18KC-E4750-01-00 SILENCER ASSYSILENCER ASSY
-
28KC-RA510-00-00 ...RIVET, 1...RIVET, 1
-
38KC-E4728-00-00 ...PROTECTOR, MUFFLER 2...PROTECTOR, MUFFLER 2
-
48KC-E4736-00-00 ...MAT 2...MAT 2
-
58KC-E4718-00-00 ...PROTECTOR, MUFFLER 1...PROTECTOR, MUFFLER 1
-
68KC-E4733-00-00 ...MAT 1...MAT 1
-
78KC-RA1B6-00-00 BOLT, FLANGE 2BOLT, FLANGE 2
-
88JP-E5357-00-00 GROMMETGROMMET
-
98JP-RA520-10-00 RIVET, 11RIVET, 11
-
108KC-E4623-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
118JP-E5375-00-00 GROMMETGROMMET
-
128JP-E4744-00-00 BRACKETBRACKET
-
138JP-RA349-00-00 NUT, CLIPNUT, CLIP
-
148JP-RA202-00-00 SCREW, TAPPING 1/4-20X0.5SCREW, TAPPING 1/4-20X0.5
-
158KC-F3892-00-00 SHIELD, HEATSHIELD, HEAT
-
168KC-K7525-00-00 WASHER 1WASHER 1
-
178KC-RA146-00-00 BOLT, FLANGE M6X16BOLT, FLANGE M6X16
-
188KC-E4637-00-00 EXHAUST COVER ASS'YEXHAUST COVER ASS'Y
-
198KJ-14624-01-00 COVER, EXHAUSTCOVER, EXHAUST
-
208JM-RA400-00-00 WASHER, PLAIN 1/4WASHER, PLAIN 1/4
-
218JM-RA407-00-00 WASHER, TOOTHED LOCK 1/4WASHER, TOOTHED LOCK 1/4
-
228KC-E4610-00-00 EXHAUST PIPE ASSY 1EXHAUST PIPE ASSY 1
-
238KC-E4627-00-00 COVER, EXHAUSTCOVER, EXHAUST
-
248JP-RA2A0-00-00 SCREW, 11SCREW, 11
-
258JP-RA441-00-00 WASHER, 1/4X0.625X0.065WASHER, 1/4X0.625X0.065
-
268JP-RA353-00-00 NUT, CLIP M5NUT, CLIP M5
-
278KJ-41131-00-00 MANIFOLD, EXT 1MANIFOLD, EXT 1
-
288KJ-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
2990179-09004-00 NUTNUT
-
308KC-RA1C0-00-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
318KC-E4715-00-00 BAND, MUFFLERBAND, MUFFLER
-
328KC-E22C0-00-00 ...BOLT SET...BOLT SET
-
338JP-RAD14-00-00 SPRING, 3SPRING, 3
