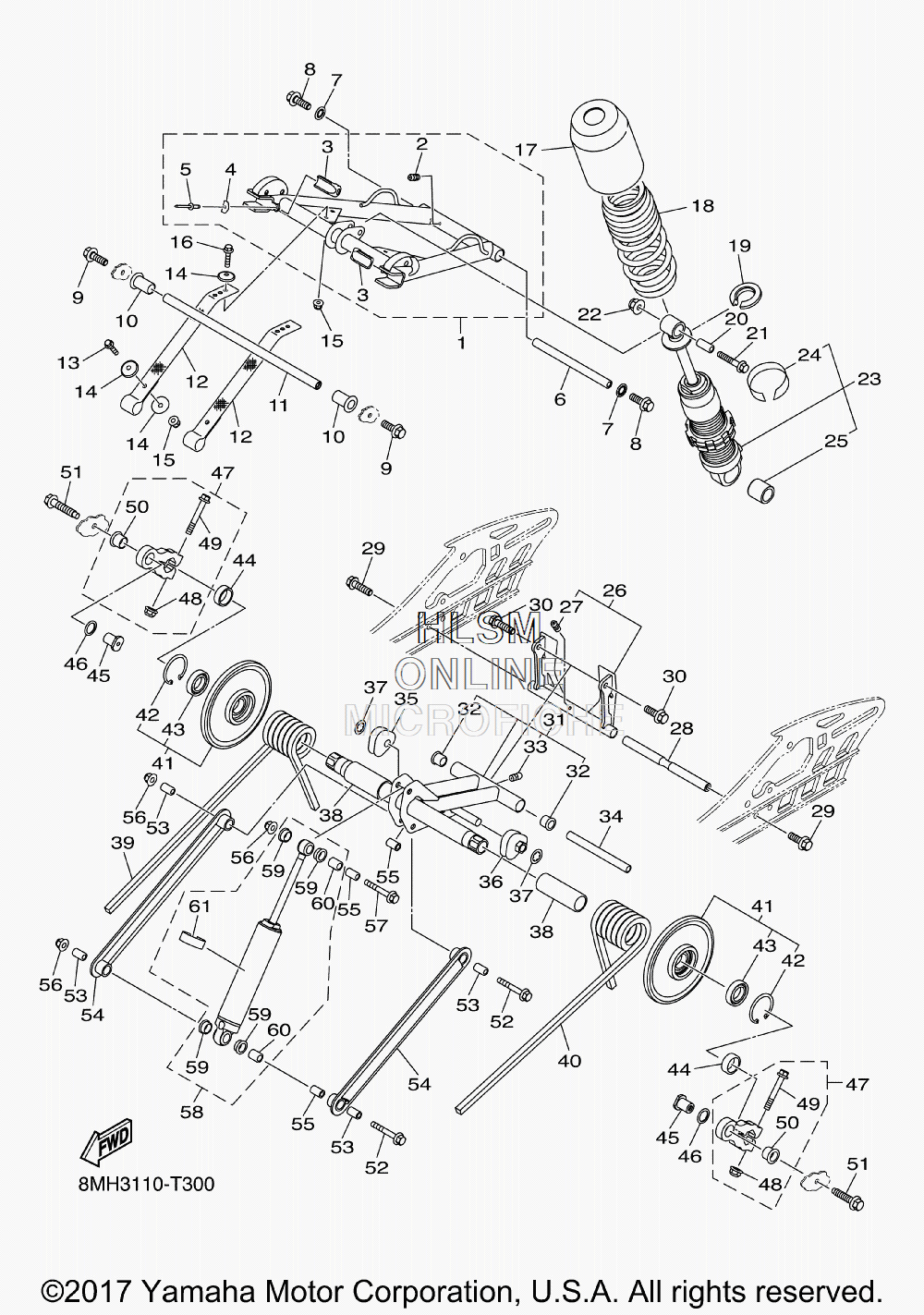

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2 для Yamaha SRVIPER - 2018 года выпуска
-
№АртикулНазвание
-
18LJ-G7331-00-00 ARM, PIVOT 1ARM, PIVOT 1
-
28JP-RAL01-00-00 ...NIPPLE, GREASE 1...NIPPLE, GREASE 1
-
38JP-G7456-00-00 ...DAMPER 1...DAMPER 1
-
48JP-G7359-00-00 ...WASHER...WASHER
-
58JP-RA521-00-00 ...RIVET, 12...RIVET, 12
-
68JP-G7486-20-00 SHAFT 4SHAFT 4
-
78JP-RA457-00-00 WASHER, TOOTH M10WASHER, TOOTH M10
-
88JP-RA199-00-00 BOLT, FLANGE M10X1.25X30BOLT, FLANGE M10X1.25X30
-
98JP-RA1A0-00-00 BOLT, FLANGE M10X1.25X40BOLT, FLANGE M10X1.25X40
-
108JP-RA805-00-00 BUSH, 4BUSH, 4
-
118JP-G7465-00-00 SHAFT 1SHAFT 1
-
128JP-G7495-00-00 STOPPER 1STOPPER 1
-
138JP-RA183-00-00 BOLT, FLANGE M6X1.0X30BOLT, FLANGE M6X1.0X30
-
148JP-RA450-00-00 WASHER, 6.87X25.4X2.32WASHER, 6.87X25.4X2.32
-
158JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
168JP-RA181-00-00 BOLT, FLANGE M6X1.0X20BOLT, FLANGE M6X1.0X20
-
178JP-F2211-00-00 COVERCOVER
-
188JX-G7336-00-00 SPRINGSPRING
-
198JP-F2214-00-00 GUIDE, SPRING 1GUIDE, SPRING 1
-
208JP-RA726-00-00 COLLAR, 14COLLAR, 14
-
218JP-RA1A2-10-00 BOLT, FLANGEBOLT, FLANGE
-
228JP-RA378-01-00 NUT, LOCKNUT, LOCK
-
238JX-F2201-20-00 DAMPER SUB ASSYDAMPER SUB ASSY
-
248JP-F2259-70-00 ...LABEL, WARNING...LABEL, WARNING
-
258JP-RA730-00-00 ...COLLAR, 22.4...COLLAR, 22.4
-
268JP-G7417-00-00 BRACKET 3BRACKET 3
-
278JP-RAL01-00-00 ...NIPPLE, GREASE 1...NIPPLE, GREASE 1
-
288JP-G7488-10-00 SHAFT 6SHAFT 6
-
298JP-RA199-00-00 BOLT, FLANGE M10X1.25X30BOLT, FLANGE M10X1.25X30
-
308JP-RA1A1-00-00 BOLT, FLANGE M10X1.25X40BOLT, FLANGE M10X1.25X40
-
318JP-G7332-00-00 ARM, PIVOT 2ARM, PIVOT 2
-
328JP-RA808-00-00 ...BUSH, 0.628...BUSH, 0.628
-
338JP-RAL01-00-00 ...NIPPLE, GREASE 1...NIPPLE, GREASE 1
-
348JP-G7487-00-00 SHAFT 5SHAFT 5
-
348JP-G7487-00-00 SHAFT 5SHAFT 5
-
358JM-G7448-00-00 HOOK 3HOOK 3
-
368JM-G7447-00-00 HOOK 2HOOK 2
-
378JM-RA315-00-00 NUTNUT
-
388JP-G7445-00-00 PROTECTORPROTECTOR
-
398JX-G7474-00-00 SPRING, REAR 2SPRING, REAR 2
-
408JX-G7473-00-00 SPRING, REAR 1SPRING, REAR 1
-
418JX-G7312-00-00 WHEEL, SUSPENSION 2WHEEL, SUSPENSION 2
-
428JP-RAH04-00-00 ...CIRCLIP, 2...CIRCLIP, 2
-
438JP-RAG03-00-00 ...BEARING, 2...BEARING, 2
-
448JP-RA727-00-00 COLLAR, 12.81COLLAR, 12.81
-
458JP-G7368-00-00 NUTNUT
-
468JP-RA436-00-00 WASHER, 0.035WASHER, 0.035
-
478LJ-G7361-00-00 ARM, REAR PIVOT 1ARM, REAR PIVOT 1
-
488JM-RA301-00-00 ...NUT, SELF-LOCKING M8-1.25...NUT, SELF-LOCKING M8-1.25
-
498JP-RA191-00-00 ......BOLT, FLANGE M8X1.25X60......BOLT, FLANGE M8X1.25X60
-
508JP-RA813-00-00 ...BUSH, 12FDU12...BUSH, 12FDU12
-
518JP-RA196-00-00 BOLT, FLANGE M10X1.25X30BOLT, FLANGE M10X1.25X30
-
528JP-RA1B4-00-00 BOLT, FLANGEBOLT, FLANGE
-
538JP-RA735-00-00 COLLAR, 19COLLAR, 19
-
548JX-G7494-00-00 ROD, RELAYROD, RELAY
-
558JP-RA724-00-00 COLLAR, 12COLLAR, 12
-
568JP-RA378-01-00 NUT, LOCKNUT, LOCK
-
578JP-RA1A2-10-00 BOLT, FLANGEBOLT, FLANGE
-
588JX-G7480-20-00 SHOCK ABSORBERSHOCK ABSORBER
-
598JP-RA804-00-00 ...BUSH, 3...BUSH, 3
-
608JP-RA728-00-00 ...COLLAR, 14.5...COLLAR, 14.5
-
618JP-F2259-70-00 ...LABEL, WARNING...LABEL, WARNING
