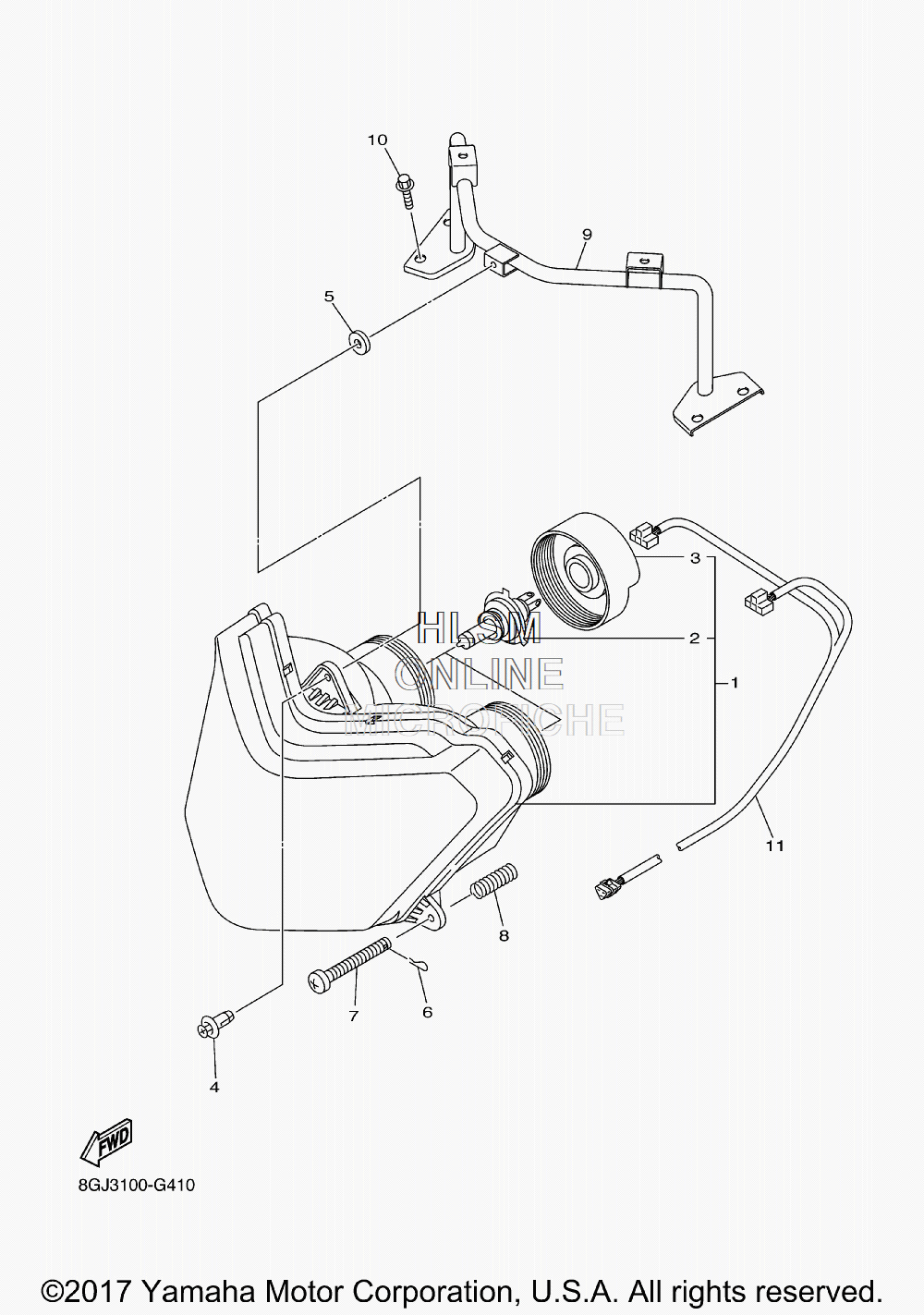

ELECTRICAL - HEADLIGHT ASSY для Yamaha VENTURE MP - 2018 года выпуска
-
№АртикулНазвание
-
18GK-84310-00-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
28G9-84314-00-00 ...BULB (12V-60/55W) (H4)...BULB (12V-60/55W) (H4)
-
38GK-84397-01-00 ...COVER, SOCKET...COVER, SOCKET
-
490269-06046-00 RIVETRIVET
-
590202-06008-00 WASHER, PLATEWASHER, PLATE
-
68K4-84374-00-00 CLIPCLIP
-
78A5-84331-00-00 SCREW, RIM ADJUSTINGSCREW, RIM ADJUSTING
-
88A5-84332-00-00 SPRING, SCREWSPRING, SCREW
-
98GJ-84118-00-00 STAY, HEADLIGHT 1STAY, HEADLIGHT 1
-
1095822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
118GJ-84359-00-00 CORD, HEADLIGHTCORD, HEADLIGHT
