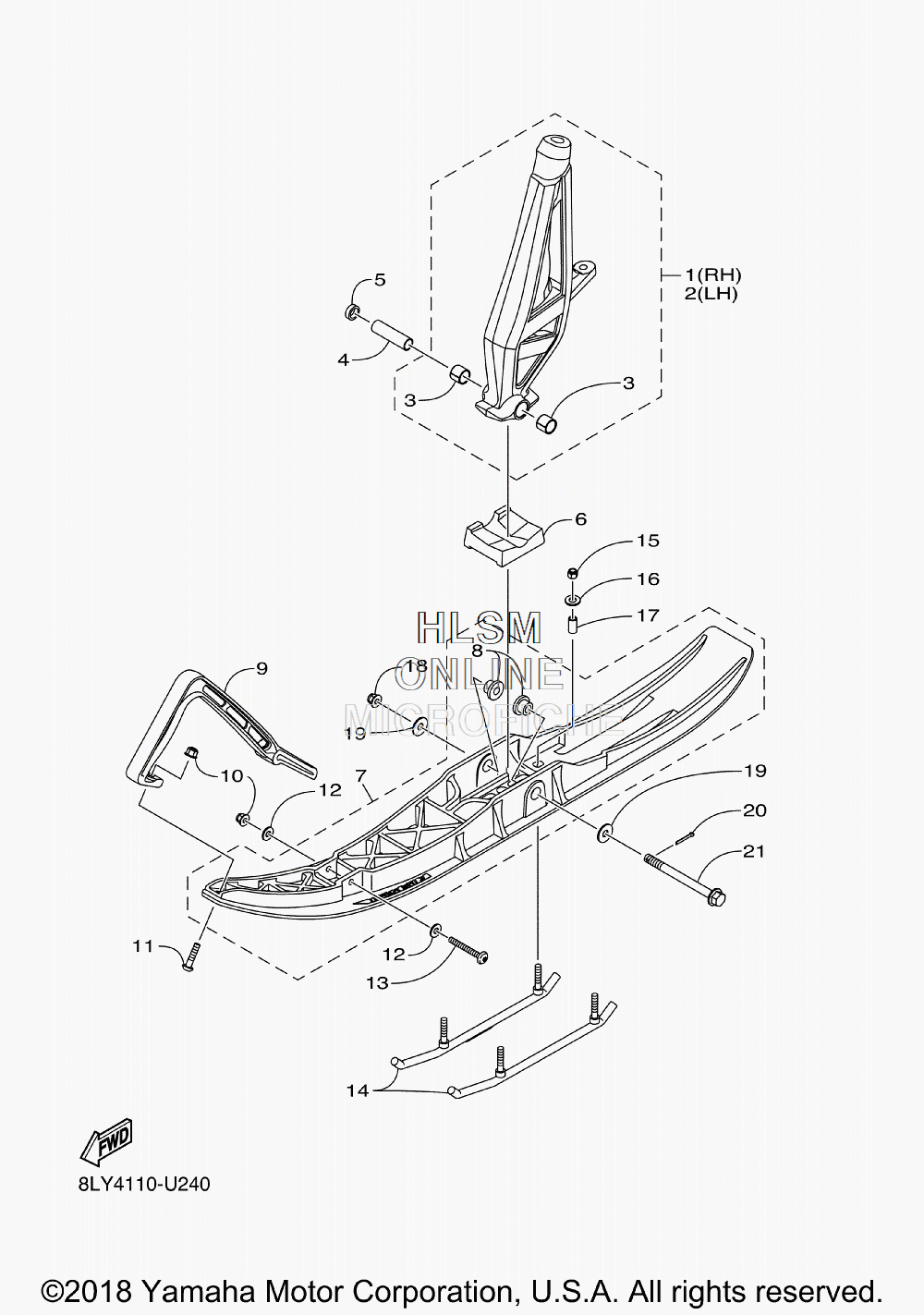

SUSPENSION - FRONT W/ SKI ASSY для Yamaha SIDEWINDER SRX LE - 2019 года выпуска
-
№АртикулНазвание
-
18JP-F3521-30-00 KNUCKLE, STEERING 2KNUCKLE, STEERING 2
-
28JP-F3511-30-00 KNUCKLE, STEERING 1KNUCKLE, STEERING 1
-
38JP-RA806-00-00 ...BUSH...BUSH
-
48JP-RA731-00-00 COLLARCOLLAR
-
58JP-RA718-00-00 COLLAR, 6COLLAR, 6
-
68KN-F3743-00-00 STOPPER 1STOPPER 1
-
78LH-F3710-10-00 SKI COMP 1SKI COMP 1
-
88JH-F3754-00-00 ...COLLAR 1...COLLAR 1
-
98LH-F3712-30-00 REINFORCEMENT, HEADREINFORCEMENT, HEAD
-
108LH-F3778-00-00 NUTNUT
-
118LH-F3755-00-00 BOLT, REINFORCEMENT HEAD 1BOLT, REINFORCEMENT HEAD 1
-
128LH-F3737-00-00 WASHER 1WASHER 1
-
138LH-F3756-00-00 BOLT, REINFORCEMENT HEAD 2BOLT, REINFORCEMENT HEAD 2
-
148KM-F3731-00-00 RUNNER 1RUNNER 1
-
158JH-F3778-00-00 NUTNUT
-
168JH-F3738-00-00 WASHER 2WASHER 2
-
178KN-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
1895602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
1990201-10043-00 WASHER, PLATEWASHER, PLATE
-
2091401-20020-00 PIN, COTTERPIN, COTTER
-
2190105-10070-00 BOLT, FLANGEBOLT, FLANGE
