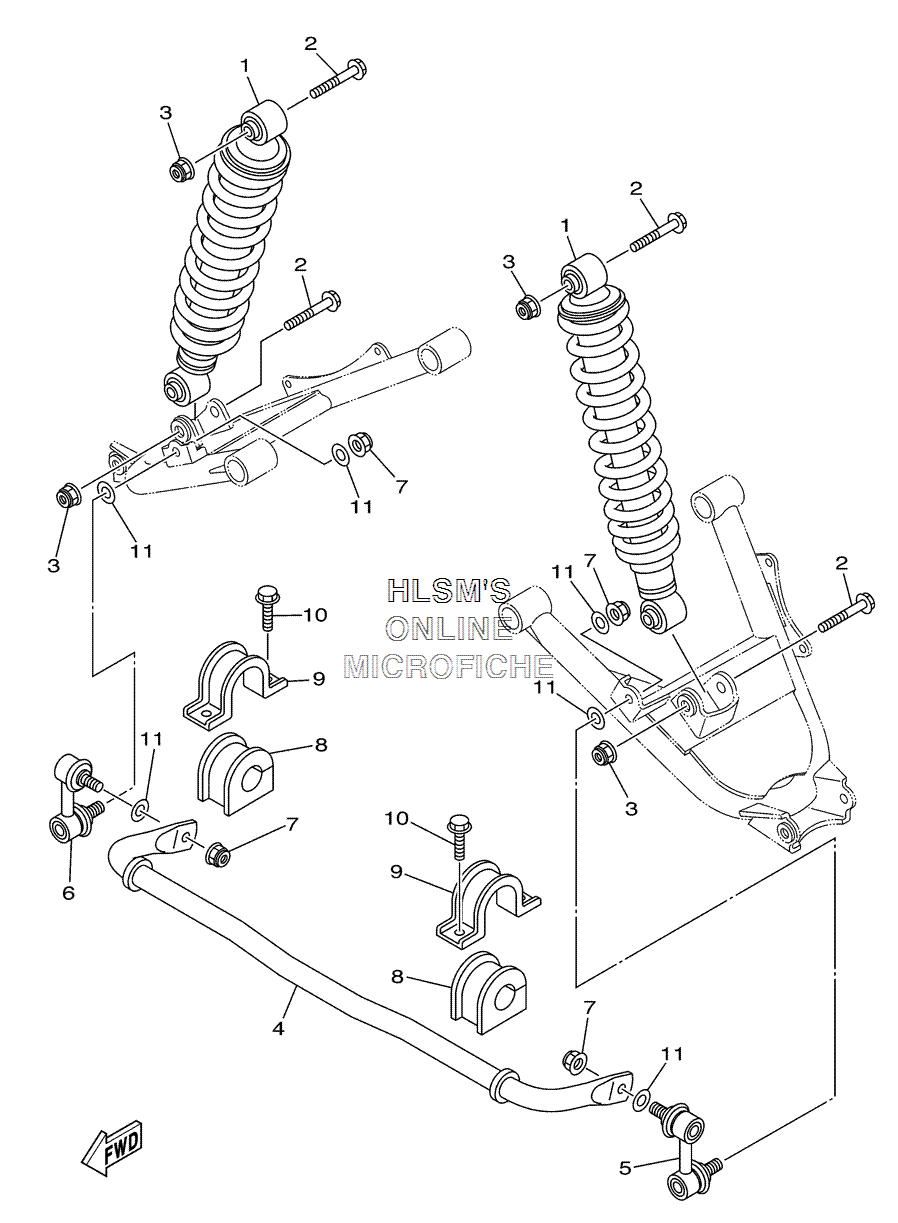

SUSPENSION - REAR SHOCK для Yamaha RHINO 660 HARDWOODS - 2004 года выпуска
-
№АртикулНазвание
-
15UG-F2210-00-00 SHOCK ABSORBER ASSY., REARSHOCK ABSORBER ASSY., REAR
-
290105-12889-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
390185-12072-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
45UG-G7491-00-00 BAR, STABILIZERBAR, STABILIZER
-
55KM-2385L-00-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
65KM-2385M-00-00 JOINT, STABILIZER 2JOINT, STABILIZER 2
-
795607-10200-00 NUT, U FLANGENUT, U FLANGE
-
85UG-F386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
95UG-F386H-00-00 COVER, STABILIZER FRONTCOVER, STABILIZER FRONT
-
1095817-08014-00 BOLT, FLANGEBOLT, FLANGE
-
1190201-108R2-00 WASHER, PLATEWASHER, PLATE
