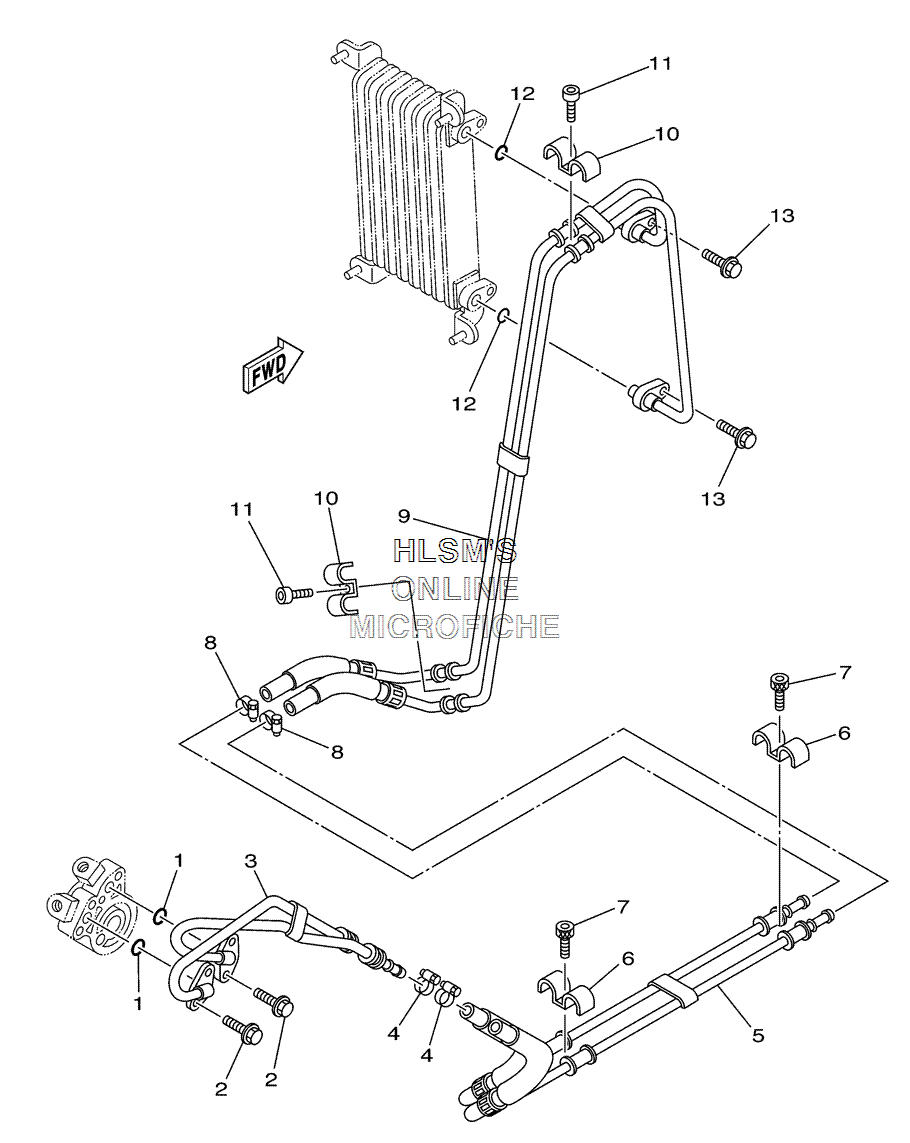

OIL PIPE для Yamaha RHINO - 2005 года выпуска
-
№АртикулНазвание
-
193210-10197-00 O-RINGO-RING
-
295027-06016-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
35UG-E3416-00-00 PIPE, OIL 1PIPE, OIL 1
-
490450-22017-00 HOSE CLAMP ASSY.HOSE CLAMP ASSY.
-
55UG-E3406-00-00 OIL PIPE COMP. 2OIL PIPE COMP. 2
-
690462-15800-00 CLAMPCLAMP
-
790111-06810-00 BOLTBOLT
-
890450-22017-00 HOSE CLAMP ASSY.HOSE CLAMP ASSY.
-
95UG-E3405-00-00 OIL PIPE COMP. 1OIL PIPE COMP. 1
-
1090462-15800-00 CLAMPCLAMP
-
1190111-06810-00 BOLTBOLT
-
1293210-11M59-00 O-RINGO-RING
-
1395807-06020-00 BOLT, FLANGEBOLT, FLANGE
