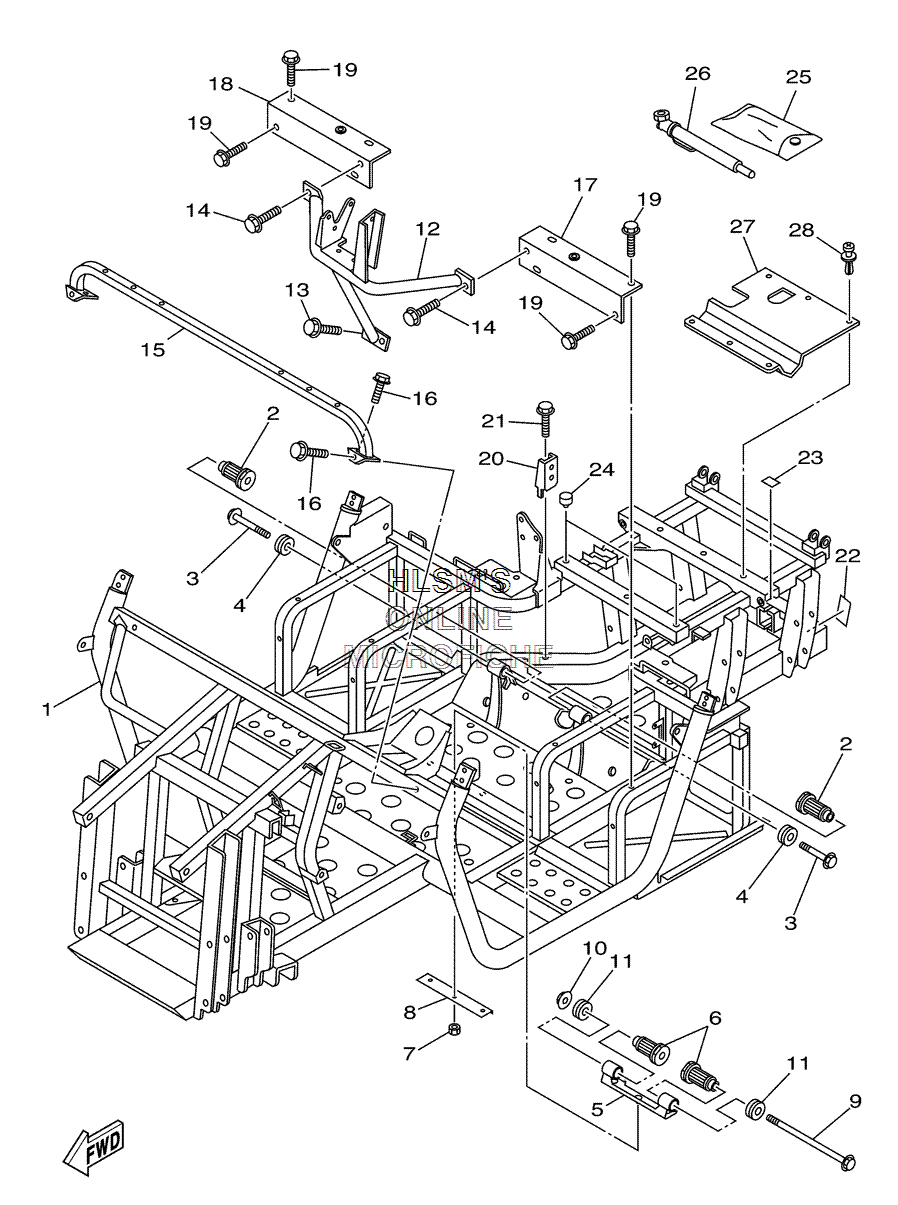

FRAME для Yamaha RHINO 450 4WD (2P51) [YXR45FAVGR] - 2006 года выпуска
-
№АртикулНазвание
-
12P5-F1110-00-00 FRAME COMP. (UNAVAILABLE)FRAME COMP. (UNAVAILABLE)
-
12P5-F1110-09-00 FRAME COMP. (SEE WITH DOORS)FRAME COMP. (SEE WITH DOORS)
-
25UH-E5336-00-00 DAMPER, ENGINE MOUNT 3DAMPER, ENGINE MOUNT 3
-
395817-10080-00 BOLT, FLANGEBOLT, FLANGE
-
45ND-F1486-00-00 DAMPER 2DAMPER 2
-
52P5-F1315-00-00 STAY, ENGINE 2STAY, ENGINE 2
-
65UH-E5336-00-00 DAMPER, ENGINE MOUNT 3DAMPER, ENGINE MOUNT 3
-
795607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
82P5-F2229-00-00 BRACKET, UNDERBRACKET, UNDER
-
990105-10055-00 BOLT, FLANGEBOLT, FLANGE
-
1095607-10200-00 NUT, U FLANGENUT, U FLANGE
-
115ND-F1486-00-00 DAMPER 2DAMPER 2
-
125UG-F1986-00-00 REINFORCEMENT, FRAME 1REINFORCEMENT, FRAME 1
-
1390105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
1495817-10020-00 BOLT, FLANGEBOLT, FLANGE
-
152P5-F1145-00-00 SUPPORTERSUPPORTER
-
1690105-08867-00 BOLT, FLANGEBOLT, FLANGE
-
175UG-F114H-00-00 SUPPORT, SEATSUPPORT, SEAT
-
185UG-F114J-00-00 SUPPORT, SEATSUPPORT, SEAT
-
1990105-08867-00 BOLT, FLANGEBOLT, FLANGE
-
205UG-F116B-00-00 BRKT.BRKT.
-
2190105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
225UG-F151K-02-00 LABEL 7 (ENGLISH)LABEL 7 (ENGLISH)
-
235UG-F151J-00-00 LABEL 6LABEL 6
-
245UG-F7114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
255ND-F8100-00-00 TOOL KITTOOL KIT
-
265UG-F811A-00-00 GAUGE, AIRGAUGE, AIR
-
275UG-F2898-00-00 INSULATOR, HEATINSULATOR, HEAT
-
2890269-06804-00 RIVETRIVET
