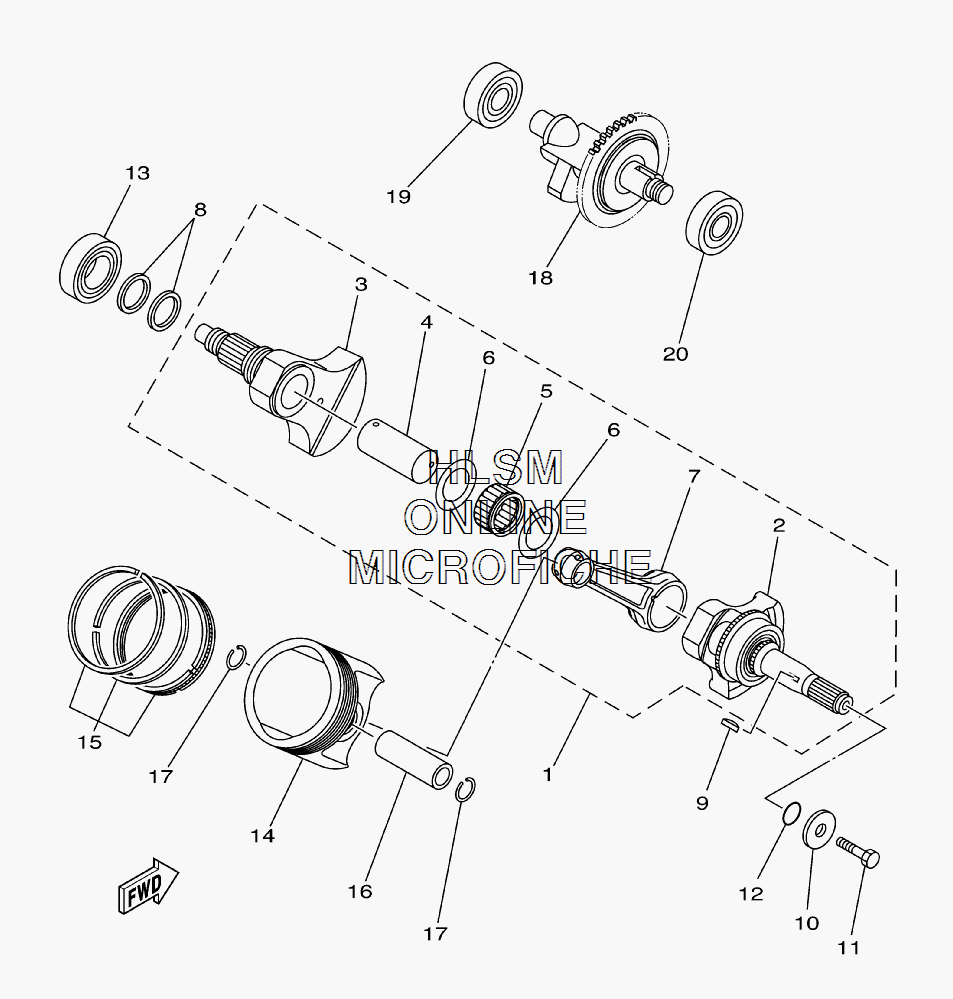

CRANKSHAFT - PISTON для Yamaha RHINO 450 - 2007 года выпуска
-
№АртикулНазвание
-
15ND-11400-00-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
25ND-W1141-00-00 ...CRANK SUB ASSY 1...CRANK SUB ASSY 1
-
35ND-W1142-00-00 ...CRANK SUB ASSY 2...CRANK SUB ASSY 2
-
45GH-11681-00-00 ...PIN, CRANK 1...PIN, CRANK 1
-
593310-635D4-00 ...BEARING...BEARING
-
690201-356K1-00 ...WASHER, PLATE...WASHER, PLATE
-
75GH-11651-01-00 ...ROD, CONNECTING...ROD, CONNECTING
-
85GH-11447-00-00 SEAL, CRANKSEAL, CRANK
-
990280-05048-00 KEY, WOODRUFFKEY, WOODRUFF
-
1090201-10038-00 WASHER, PLATEWASHER, PLATE
-
1190101-10017-00 BOLTBOLT
-
1293210-16290-00 O-RINGO-RING
-
1393306-30629-00 BEARINGBEARING
-
145ND-11631-00-00 PISTON (STD)PISTON (STD)
-
145ND-11636-00-00 PISTON (0.50MM O/S) (OPT)PISTON (0.50MM O/S) (OPT)
-
145ND-11638-00-00 PISTON (1.00MM O/S) (OPT)PISTON (1.00MM O/S) (OPT)
-
155ND-11603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
155ND-11605-00-00 PISTON RING SET (0.50MM O/S) (OPT)PISTON RING SET (0.50MM O/S) (OPT)
-
155ND-11607-00-00 PISTON RING SET (1.00MM O/S) (OPT)PISTON RING SET (1.00MM O/S) (OPT)
-
163LD-11633-00-00 PIN, PISTONPIN, PISTON
-
1793450-22027-00 CIRCLIP, INNERCIRCLIP, INNER
-
185ND-11500-00-00 BALANCER ASSYBALANCER ASSY
-
1993306-30315-00 BEARINGBEARING
-
2093306-30438-00 BEARINGBEARING
