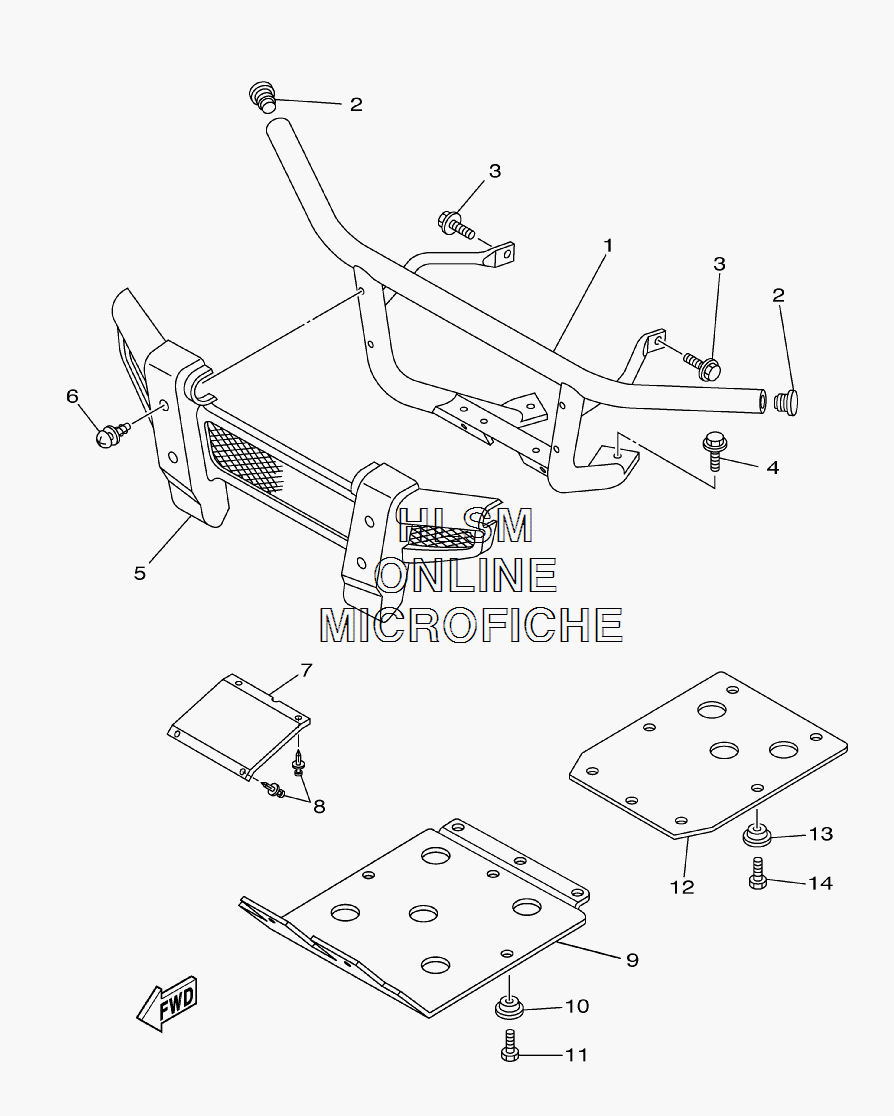

RACK AND BUMPER для Yamaha RHINO 660 4x4 DUCKS UNLIMITED - 2007 года выпуска
-
№АртикулНазвание
-
12P5-F845N-20-00 BAR, CARRY FRONTBAR, CARRY FRONT
-
25UG-F2417-00-00 PLUGPLUG
-
395817-10020-00 BOLT, FLANGEBOLT, FLANGE
-
49581P-12025-00 BOLT, FLANGEBOLT, FLANGE
-
55UG-F842A-00-00 COVER 5COVER 5
-
690119-06868-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
75UG-F835L-00-00 COVER, COOLERCOVER, COOLER
-
890269-06800-00 RIVETRIVET
-
92P5-F8385-00-00 COVER, LOWERCOVER, LOWER
-
105UG-F8329-00-00 SPACERSPACER
-
1190105-06832-00 BOLT, FLANGEBOLT, FLANGE
-
125UG-F8395-00-00 COVER, UNDERCOVER, UNDER
-
135UG-F8329-00-00 SPACERSPACER
-
1490105-06832-00 BOLT, FLANGEBOLT, FLANGE
