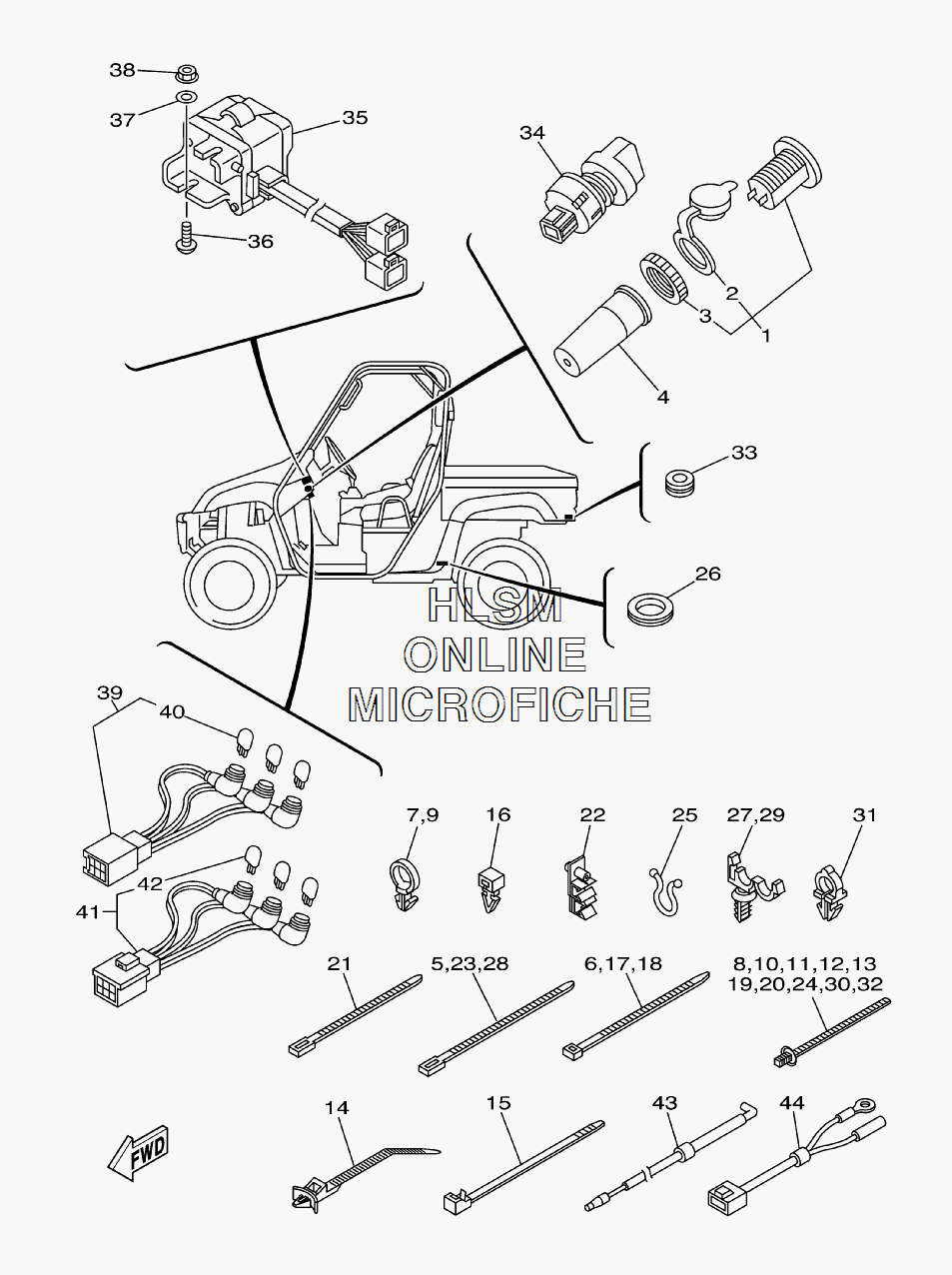

REFLECTOR ASSY для Yamaha RHINO 660 4x4 EXPLORING EDITION - 2007 года выпуска
-
№АртикулНазвание
-
15FU-H1920-10-00 TERMINAL ASSYTERMINAL ASSY
-
25FU-H1942-10-00 ...COVER...COVER
-
35FU-H191B-10-00 ...NUT...NUT
-
45FU-H2599-01-00 COVER, CONNECTERCOVER, CONNECTER
-
590464-40825-00 CLAMPCLAMP
-
690464-48800-00 CLAMPCLAMP
-
790464-19815-00 CLAMPCLAMP
-
890464-20005-00 CLAMPCLAMP
-
990464-19815-00 CLAMPCLAMP
-
1090464-20005-00 CLAMPCLAMP
-
1190464-20005-00 CLAMPCLAMP
-
1290464-20005-00 CLAMPCLAMP
-
1390464-20005-00 CLAMPCLAMP
-
1490464-38800-00 CLAMPCLAMP
-
1590464-51800-00 CLAMPCLAMP
-
165UG-F2465-00-00 HOLDERHOLDER
-
1790464-48800-00 CLAMPCLAMP
-
1890464-48800-00 CLAMPCLAMP
-
1990464-20005-00 CLAMPCLAMP
-
2090464-20005-00 CLAMPCLAMP
-
2190464-31827-00 CLAMPCLAMP
-
225UG-F481H-00-00 CLAMPCLAMP
-
2390464-40825-00 CLAMPCLAMP
-
2490464-20005-00 CLAMPCLAMP
-
2590464-20804-00 CLAMPCLAMP
-
2690480-25856-00 GROMMETGROMMET
-
2790464-12830-00 CLAMPCLAMP
-
2890464-40825-00 CLAMPCLAMP
-
2990464-12830-00 CLAMPCLAMP
-
3090464-20005-00 CLAMPCLAMP
-
3190464-10833-00 CLAMPCLAMP
-
3290464-20005-00 CLAMPCLAMP
-
3390480-15235-00 GROMMETGROMMET
-
345UG-H2526-00-00 SWITCH, LAMPSWITCH, LAMP
-
355UG-83976-10-00 SWITCH, HANDLE 1SWITCH, HANDLE 1
-
3690149-05299-00 SCREWSCREW
-
3790201-05029-00 WASHER, PLATEWASHER, PLATE
-
3895707-05300-00 NUT, FLANGENUT, FLANGE
-
395UG-83530-10-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
405GH-83516-00-00 ...BULB (14V-1.7W)...BULB (14V-1.7W)
-
415UG-83530-01-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
425GH-83516-00-00 ...BULB (14V-1.7W)...BULB (14V-1.7W)
-
435KM-82541-00-00 WIRE, LEADWIRE, LEAD
-
445KM-82509-10-00 WIRE, SUB LEADWIRE, SUB LEAD
