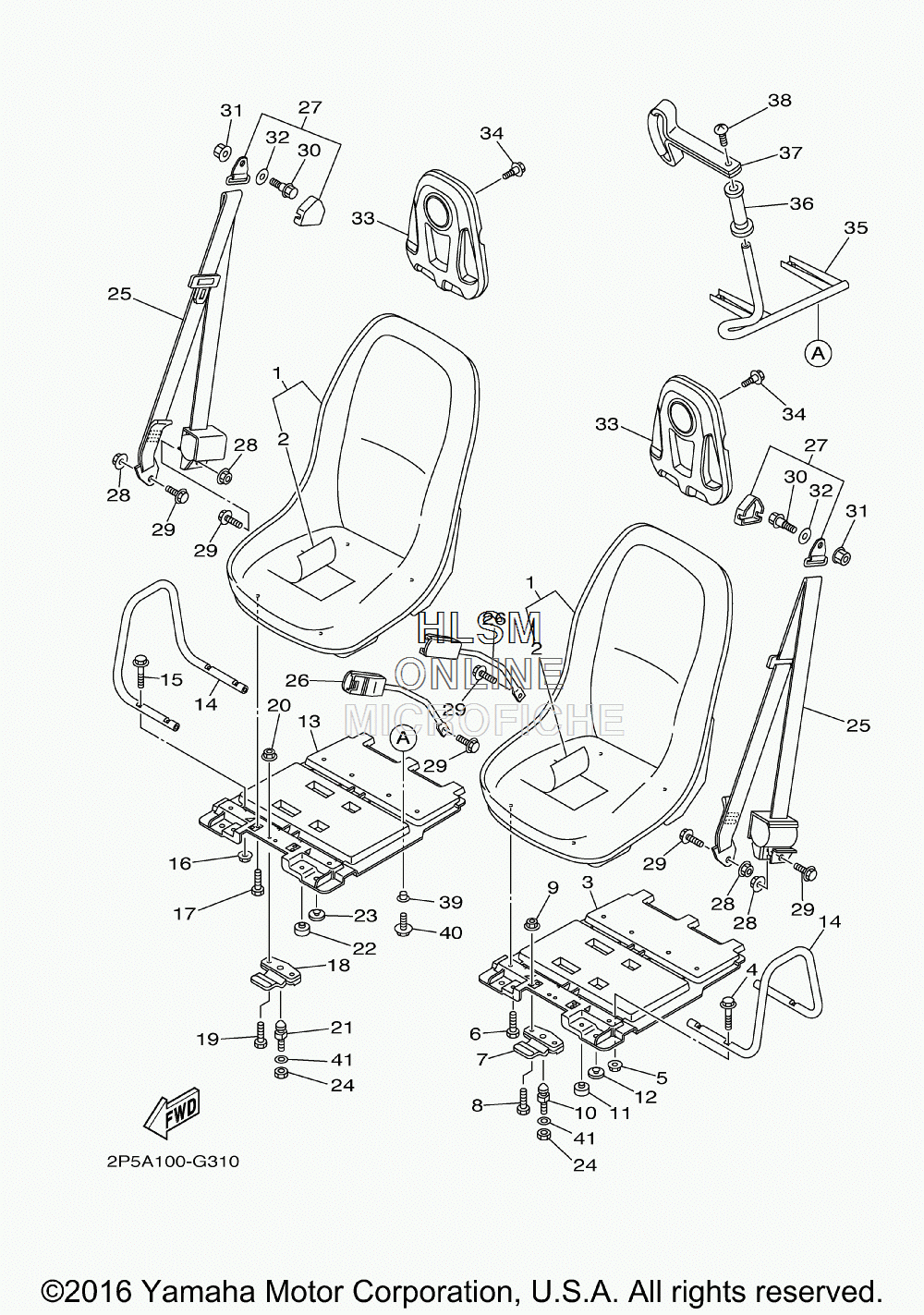

SEAT для Yamaha RHINO 700 FI (ROMANTIQUE ROUGE) - 2008 года выпуска
-
№АртикулНазвание
-
15UG-F4710-00-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
25UG-F470F-00-00 ...SEAT COVER COMP....SEAT COVER COMP.
-
35UG-F470E-01-00 BOTTOM PLATE COMP.BOTTOM PLATE COMP.
-
495812-08030-00 BOLT, FLANGEBOLT, FLANGE
-
595602-08200-00 NUT, U FLANGENUT, U FLANGE
-
695822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
7F1B-U3850-02-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
895822-06040-00 BOLT, FLANGEBOLT, FLANGE
-
995602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
10GH1-U3774-00-00 PINPIN
-
114XE-F4747-00-00 DAMPER, SEATDAMPER, SEAT
-
12371-82121-00-00 PAD, BATTERYPAD, BATTERY
-
135UG-F470E-01-00 BOTTOM PLATE COMP.BOTTOM PLATE COMP.
-
142P5-F474W-00-00 ASSIST, GRIP 2ASSIST, GRIP 2
-
1595812-08030-00 BOLT, FLANGEBOLT, FLANGE
-
1695602-08200-00 NUT, U FLANGENUT, U FLANGE
-
1795822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
18F1B-U3850-02-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
1995822-06040-00 BOLT, FLANGEBOLT, FLANGE
-
2095602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
21GH1-U3774-00-00 PINPIN
-
224XE-F4747-00-00 DAMPER, SEATDAMPER, SEAT
-
23371-82121-00-00 PAD, BATTERYPAD, BATTERY
-
2490185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
255UG-G6241-00-00 BELTBELT
-
265UG-G6242-00-00 BELT 2BELT 2
-
275UG-F4796-00-00 COVERCOVER
-
2895602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
2995812-10022-00 BOLT, FLANGEBOLT, FLANGE
-
305UG-F3394-00-00 BOLT, SPECIALBOLT, SPECIAL
-
315UG-F4735-01-00 SPEED NUTSPEED NUT
-
3290201-11801-00 WASHER, PLATEWASHER, PLATE
-
335UG-F472L-50-00 HEAD RESTHEAD REST
-
3490109-063F5-00 BOLTBOLT
-
355B4-F474A-00-00 ASSIST, GRIPASSIST, GRIP
-
365B4-F6241-00-00 GRIPGRIP
-
375B4-F4773-00-00 HANDLE, SEATHANDLE, SEAT
-
3898907-06020-00 SCREW, BINDSCREW, BIND
-
3990387-06210-00 COLLARCOLLAR
-
4090105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
4190201-109U6-00 WASHER, PLATEWASHER, PLATE
