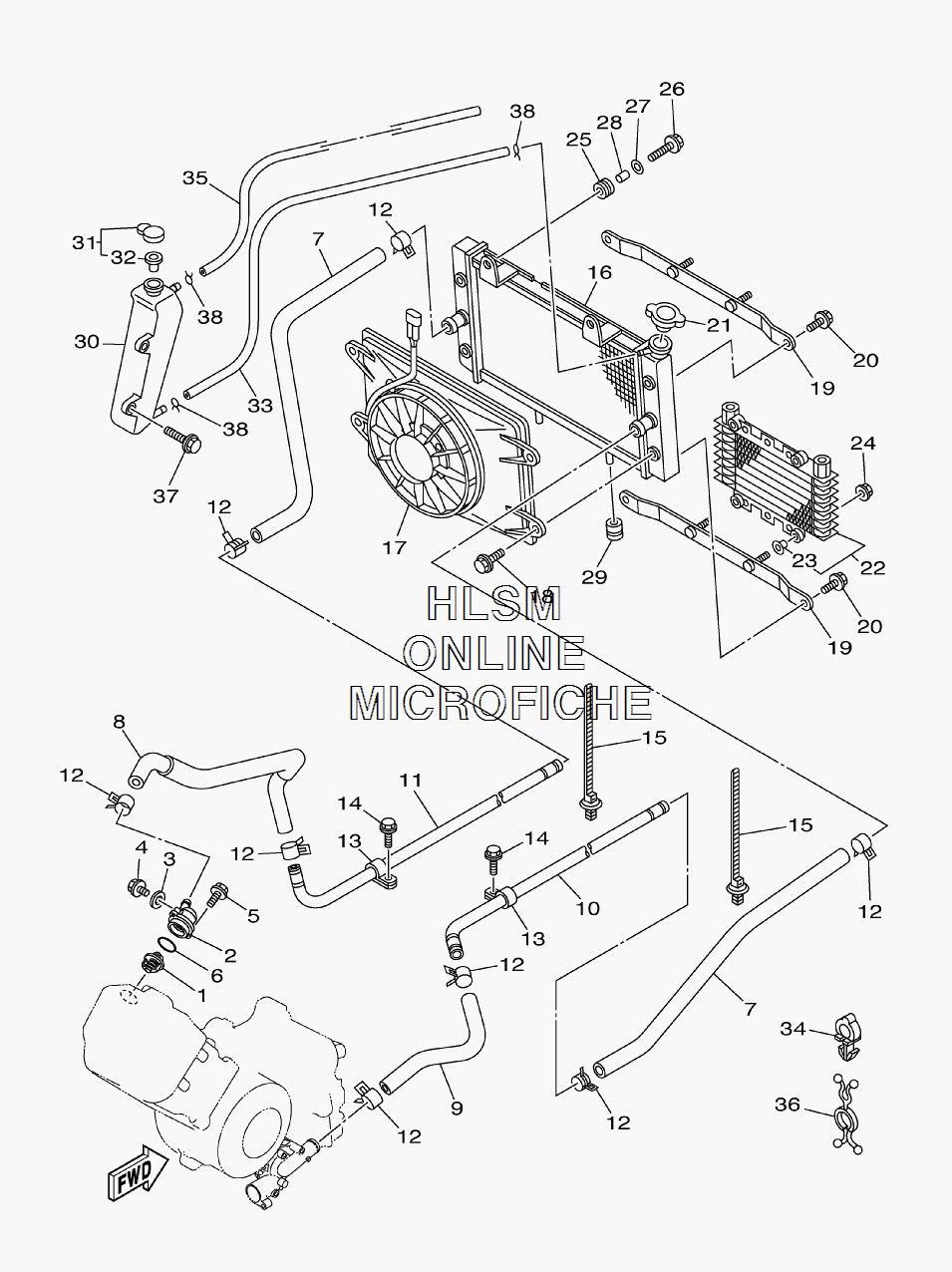

RADIATOR ASSY для Yamaha RHINO 700 FI SPECIAL EDITION 1 - 2008 года выпуска
-
№АртикулНазвание
-
13B4-12411-00-00 THERMOSTATTHERMOSTAT
-
25B4-12413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
390430-06014-00 GASKETGASKET
-
495022-06010-00 BOLT, FLANGEBOLT, FLANGE
-
595022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
693210-41042-00 O-RINGO-RING
-
75UG-E2576-00-00 HOSE 1HOSE 1
-
85B4-E2577-00-00 HOSE 2HOSE 2
-
95B4-E2579-00-00 HOSE 4HOSE 4
-
105B4-E2564-00-00 PIPE, WATERPIPE, WATER
-
115B4-E2483-00-00 PIPE 3PIPE 3
-
1290467-26189-00 CLIPCLIP
-
1390461-12800-00 CLAMPCLAMP
-
1490105-06833-00 BOLT, FLANGEBOLT, FLANGE
-
1590464-20005-00 CLAMPCLAMP
-
165B4-E2461-00-00 RADIATOR ASSYRADIATOR ASSY
-
175B4-E2405-00-00 BLOWER ASSYBLOWER ASSY
-
185B4-E2675-00-00 BOLT, BLOWER HOLDINGBOLT, BLOWER HOLDING
-
195B4-E244E-00-00 BRACKET 1BRACKET 1
-
205B4-E2623-00-00 BOLTBOLT
-
215B4-E2462-00-00 CAP, RADIATORCAP, RADIATOR
-
225B4-E3470-00-00 OIL COOLER ASSYOIL COOLER ASSY
-
235B4-E2662-00-00 ...COLLAR 1...COLLAR 1
-
2495702-06500-00 NUT, FLANGENUT, FLANGE
-
2590480-15363-00 GROMMETGROMMET
-
2690105-06833-00 BOLT, FLANGEBOLT, FLANGE
-
2790201-06033-00 WASHER, PLATEWASHER, PLATE
-
2890387-06131-00 COLLARCOLLAR
-
2990480-17800-00 GROMMETGROMMET
-
305B4-F1871-00-00 TANK, RECOVERYTANK, RECOVERY
-
311AA-21815-00-00 CAPCAP
-
321AA-21874-00-00 ...GASKET...GASKET
-
335B4-F247A-00-00 HOSE 1HOSE 1
-
3490464-10833-00 CLAMPCLAMP
-
355B4-F247B-00-00 HOSE 2HOSE 2
-
3690464-29179-00 CLAMPCLAMP
-
3790119-06868-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3890467-08003-00 CLIPCLIP
