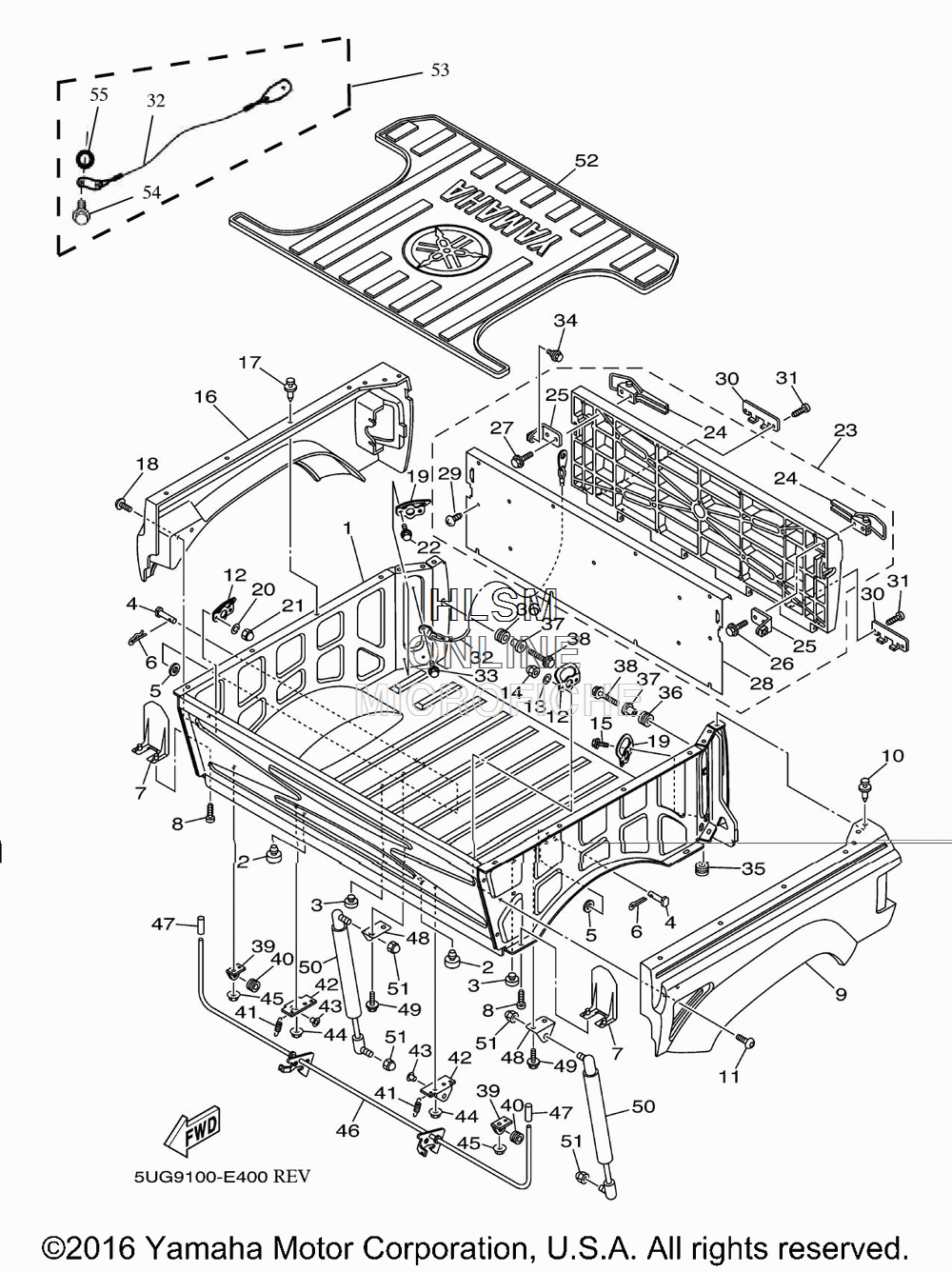

CARRIER для Yamaha RHINO 450 (2P5G) [YXR45FYGR] - 2009 года выпуска
-
№АртикулНазвание
-
12P5-F4850-02-00 CARRIER BOX ASSYCARRIER BOX ASSY
-
24X4-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
3128-27114-00-00 STOPPERSTOPPER
-
490240-12002-00 PIN, CLEVISPIN, CLEVIS
-
590201-12049-00 WASHER, PLATEWASHER, PLATE
-
691401-30025-00 PIN, COTTERPIN, COTTER
-
72P5-F6123-00-00 GUARD, LEVERGUARD, LEVER
-
890167-06800-00 SCREW, TAPPINGSCREW, TAPPING
-
95UG-K8191-00-00 PANEL, REAR FENDER 1 (OPT) (PDG)PANEL, REAR FENDER 1 (OPT) (PDG)
-
95UG-K8191-30-00 PANEL, REAR FENDER 1 (OPT) (RTR)PANEL, REAR FENDER 1 (OPT) (RTR)
-
1090269-06800-00 RIVETRIVET
-
1190110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
125UG-F4867-00-00 HOOKHOOK
-
1392902-06100-00 WASHER, SPRINGWASHER, SPRING
-
1495307-06800-00 NUTNUT
-
1595817-06016-00 BOLT, FLANGEBOLT, FLANGE
-
165UG-K8192-10-00 PANEL, REAR FENDER 2 (OPT) (PDG)PANEL, REAR FENDER 2 (OPT) (PDG)
-
165UG-K8192-30-00 PANEL, REAR FENDER 2 (OPT) (RTR)PANEL, REAR FENDER 2 (OPT) (RTR)
-
1790269-06800-00 RIVETRIVET
-
1890110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
195UG-F4867-00-00 HOOKHOOK
-
2092902-06100-00 WASHER, SPRINGWASHER, SPRING
-
2195307-06800-00 NUTNUT
-
2295817-06016-00 BOLT, FLANGEBOLT, FLANGE
-
235UG-K810N-20-00 REAR STORAGE LID COMP.REAR STORAGE LID COMP.
-
245UG-F389E-00-00 ...LATCH...LATCH
-
255UG-F849R-00-00 ...BRACKET,TRANK STOPPER...BRACKET,TRANK STOPPER
-
2695822-06025-00 ...BOLT, FLANGE...BOLT, FLANGE
-
2795822-06025-00 ...BOLT, FLANGE...BOLT, FLANGE
-
285UG-K8365-00-00 ...CASE...CASE
-
2990167-05030-00 ...SCREW, TAPPING...SCREW, TAPPING
-
305UG-F4669-00-00 COVER, HINGECOVER, HINGE
-
3190167-05025-00 SCREW, TAPPINGSCREW, TAPPING
-
325UG-K7195-10-00 HOLDER, CABLE (TB: SXS2009-007)HOLDER, CABLE (TB: SXS2009-007)
-
3395817-06016-00 BOLT, FLANGEBOLT, FLANGE
-
3490109-060F3-00 BOLTBOLT
-
3590480-15235-00 GROMMETGROMMET
-
3690480-18290-00 GROMMETGROMMET
-
3790387-066J1-00 COLLARCOLLAR
-
3895822-06025-00 BOLT, FLANGEBOLT, FLANGE
-
392P5-K7175-00-00 HOLDER, LATCHHOLDER, LATCH
-
4090480-15235-00 GROMMETGROMMET
-
4190506-16451-00 SPRING, TENSIONSPRING, TENSION
-
422P5-K7185-00-00 PLATE 1PLATE 1
-
432P5-K7515-00-00 BUSH, RUBBER 1BUSH, RUBBER 1
-
4495702-08500-00 NUT, FLANGENUT, FLANGE
-
4595702-06500-00 NUT, FLANGENUT, FLANGE
-
462P5-K7180-00-00 LATCH ASSYLATCH ASSY
-
475UG-K818M-00-00 CAP, PROTECTOR END 4CAP, PROTECTOR END 4
-
485UG-F1798-11-00 BRACKET, DAMPERBRACKET, DAMPER
-
4990105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
505UG-F8415-00-00 DAMPER 1DAMPER 1
-
5195602-08200-00 NUT, U FLANGENUT, U FLANGE
-
525UG-F483J-00-00 MAT REAR CARGO BEDMAT REAR CARGO BED
-
535UG-K7195-10-KT TAILGATE HOLDER CABLE KIT (TB: SXS2009-007)TAILGATE HOLDER CABLE KIT (TB: SXS2009-007)
-
5490109-060F3-00 ...BOLT...BOLT
-
5592990-06200-00 ...WASHER, PLAIN...WASHER, PLAIN
