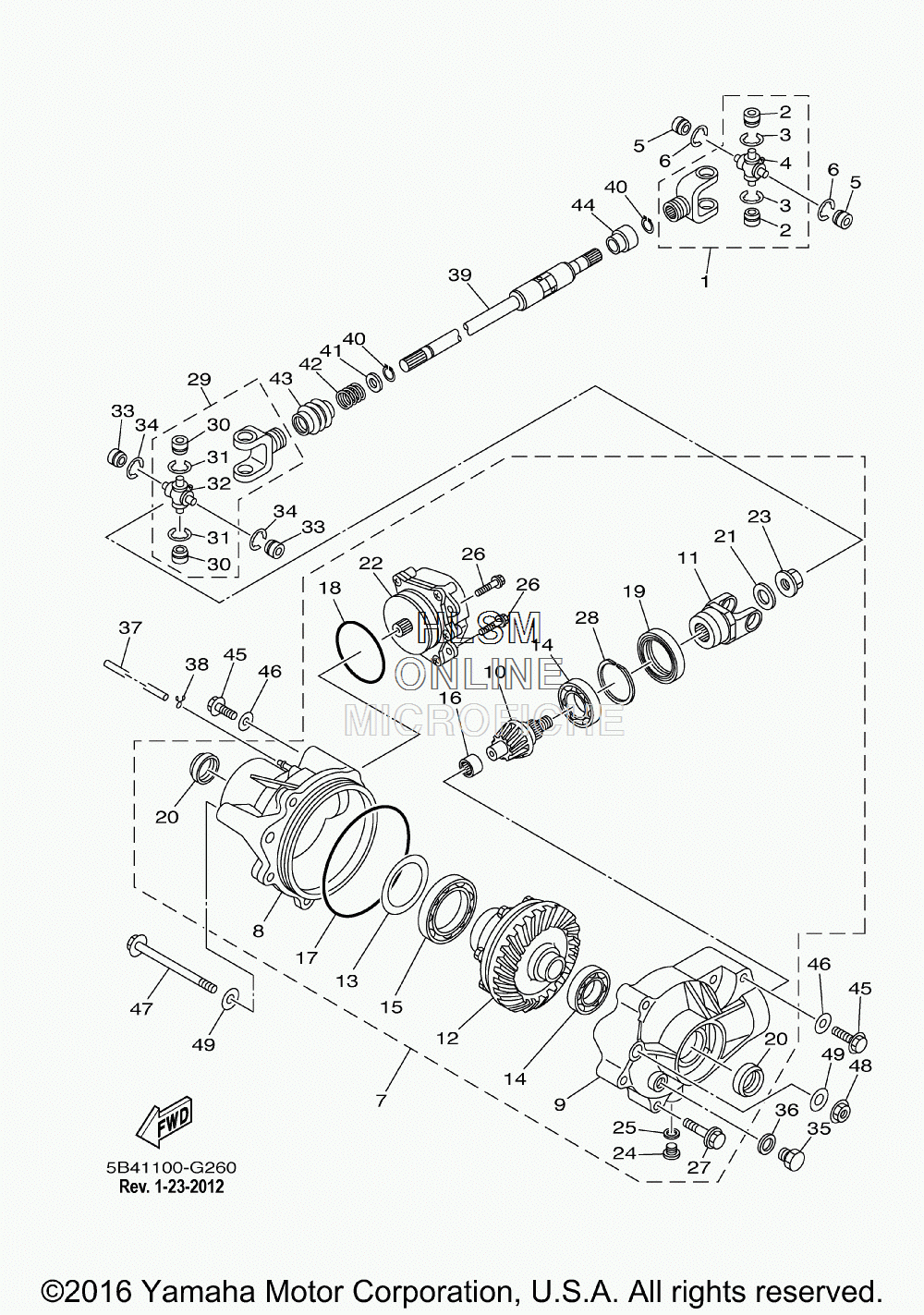

DIFFERENTIAL - FRONT для Yamaha RHINO 700 FI (5B4H) [YXR7FYGR] - 2009 года выпуска
-
№АртикулНазвание
-
12P5-46108-01-00 CROSS JOINT COMP. 3CROSS JOINT COMP. 3
-
293399-99948-00 ...BEARING...BEARING
-
393440-20088-00 ...CIRCLIP...CIRCLIP
-
45GT-46187-00-00 ...SPIDER...SPIDER
-
593399-99948-00 BEARINGBEARING
-
693440-20088-00 CIRCLIPCIRCLIP
-
75B4-46160-00-00 FRONT AXLE GEAR CASE COMP.FRONT AXLE GEAR CASE COMP.
-
85B4-46162-00-00 ...HOUSING, BEARING 2...HOUSING, BEARING 2
-
95B4-46161-00-00 ...HOUSING, SHAFT DRIVE 2...HOUSING, SHAFT DRIVE 2
-
103B4-46141-00-00 ...PINION, DRIVE 2...PINION, DRIVE 2
-
114S1-46146-00-00 ...YOKE, JOINT 2...YOKE, JOINT 2
-
123B4-46470-01-00 ...LIMITED SLIP DIFF. ASSY...LIMITED SLIP DIFF. ASSY
-
133B4-46117-10-00 ...SHIM, RING GEAR (0.2T) (OPT)...SHIM, RING GEAR (0.2T) (OPT)
-
133B4-46117-20-00 ...SHIM, RING GEAR (0.3T) (OPT)...SHIM, RING GEAR (0.3T) (OPT)
-
133B4-46117-00-00 ...SHIM, RING GEAR (0.1T) (OPT)...SHIM, RING GEAR (0.1T) (OPT)
-
133B4-46117-30-00 ...SHIM, RING GEAR (0.4T) (OPT)...SHIM, RING GEAR (0.4T) (OPT)
-
1493306-00613-00 ...BEARING...BEARING
-
153B4-46164-00-00 ...BEARING 1...BEARING 1
-
163B4-46166-00-00 ...BEARING 3...BEARING 3
-
173B4-46134-00-00 ...O-RING 1...O-RING 1
-
183B4-46135-00-00 ...O-RING 2...O-RING 2
-
1993105-46001-00 ...OIL SEAL...OIL SEAL
-
203B4-46163-00-00 ...SEAL, OIL 1...SEAL, OIL 1
-
213B4-47359-00-00 ...WASHER...WASHER
-
223B4-4616A-00-00 ...SERVO MOTOR COMP...SERVO MOTOR COMP
-
234WV-46145-10-00 ...NUT 1...NUT 1
-
2490340-10001-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
2590430-10003-00 ...GASKET...GASKET
-
2695812-06014-00 ...BOLT, FLANGE...BOLT, FLANGE
-
2795812-08040-00 ...BOLT, FLANGE...BOLT, FLANGE
-
283B4-46142-00-00 ...RING,HOLE SNAP 1...RING,HOLE SNAP 1
-
292P5-46108-01-00 CROSS JOINT COMP. 3CROSS JOINT COMP. 3
-
3093399-99948-00 ...BEARING...BEARING
-
3193440-20088-00 ...CIRCLIP...CIRCLIP
-
325GT-46187-00-00 ...SPIDER...SPIDER
-
3393399-99948-00 BEARINGBEARING
-
3493440-20088-00 CIRCLIPCIRCLIP
-
3590340-14029-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
36214-11198-01-00 GASKETGASKET
-
3790445-070G6-00 HOSE (L1700)HOSE (L1700)
-
3890467-07029-00 CLIPCLIP
-
395B4-46171-00-00 SHAFT DRIVE ASSYSHAFT DRIVE ASSY
-
4099009-19400-00 CIRCLIPCIRCLIP
-
4190201-20266-00 WASHER, PLATE (T=1.0)WASHER, PLATE (T=1.0)
-
4290501-235L9-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
435GT-46136-00-00 SEAL 1SEAL 1
-
445GT-46137-00-00 SEAL 2SEAL 2
-
4595812-10030-00 BOLT, FLANGEBOLT, FLANGE
-
4690201-10035-00 WASHER, PLATEWASHER, PLATE
-
4790105-10230-00 BOLT, FLANGEBOLT, FLANGE
-
4890185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4990201-10035-00 WASHER, PLATEWASHER, PLATE
