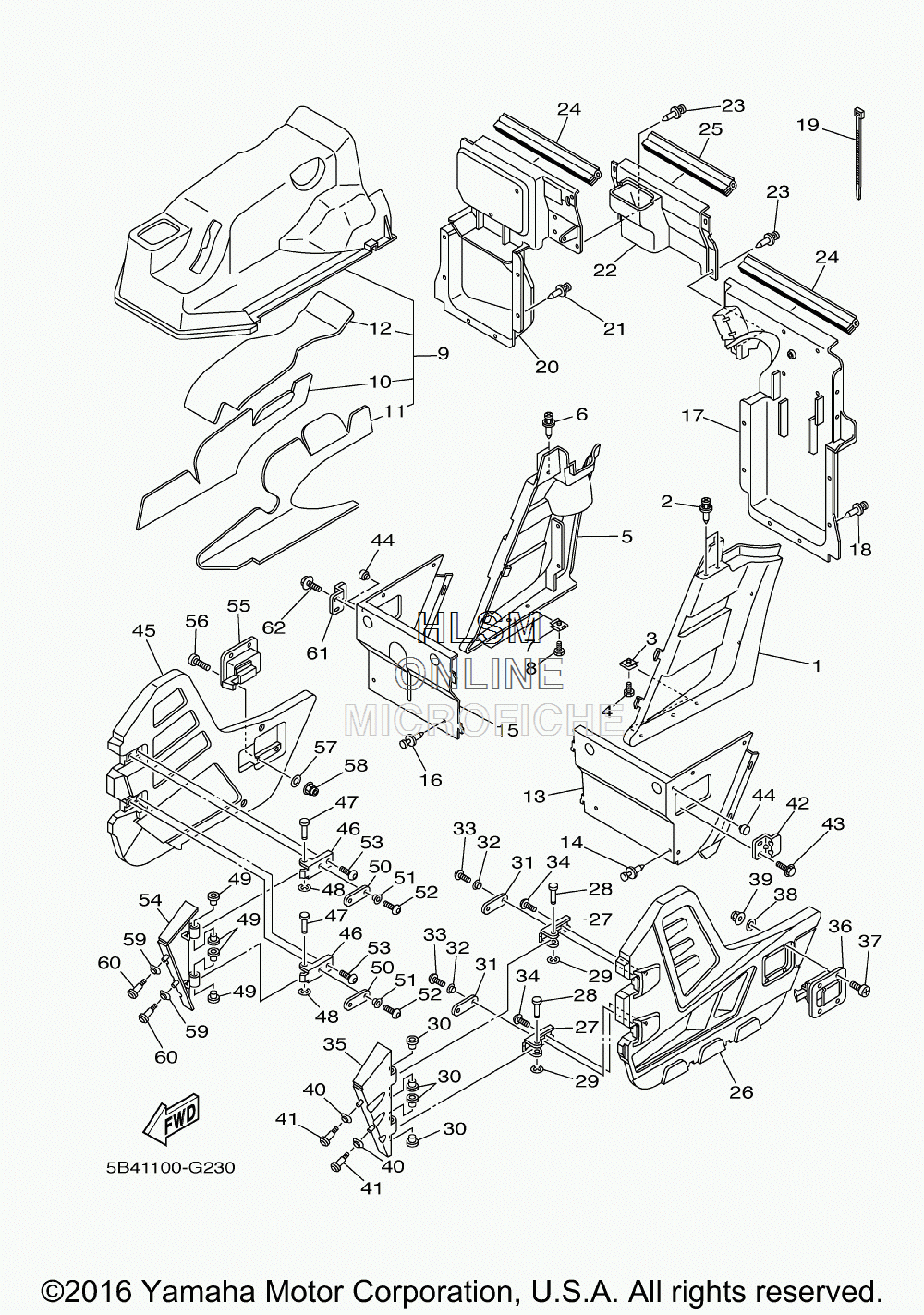

SIDE COVER для Yamaha RHINO 700 FI (5B4H) [YXR7FYL] - 2009 года выпуска
-
№АртикулНазвание
-
15UG-K810F-01-00 SIDE PANEL COMP.(L.H)SIDE PANEL COMP.(L.H)
-
290269-06800-00 RIVETRIVET
-
390183-05008-00 NUT, SPRINGNUT, SPRING
-
490119-05023-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
55UG-K810G-01-00 SIDE PANEL COMP.(R.H)SIDE PANEL COMP.(R.H)
-
690269-06800-00 RIVETRIVET
-
790183-05008-00 NUT, SPRINGNUT, SPRING
-
890119-05023-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
95B4-F8108-00-00 COVER ASSYCOVER ASSY
-
105B4-F2873-00-00 ...SEAL 1...SEAL 1
-
115B4-F2875-00-00 ...SEAL 3...SEAL 3
-
125B4-F2878-00-00 ...SEAL 6...SEAL 6
-
135UG-F254J-11-00 SUPPORT, SIDE PANELSUPPORT, SIDE PANEL
-
1490269-06800-00 RIVETRIVET
-
155UG-F254K-11-00 SUPPORT, SIDE PANEL 2SUPPORT, SIDE PANEL 2
-
1690269-06800-00 RIVETRIVET
-
175B4-K7561-00-00 PROTECTOR, SIDE 1PROTECTOR, SIDE 1
-
1890269-06800-00 RIVETRIVET
-
1990464-48800-00 CLAMPCLAMP
-
205B4-F4141-00-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
2190269-06800-00 RIVETRIVET
-
225B4-F4113-10-00 PLATE, CONNECTINGPLATE, CONNECTING
-
2390269-06800-00 RIVETRIVET
-
245B4-F41A4-00-00 SEAL 4SEAL 4
-
255B4-F41A5-00-00 SEAL 5SEAL 5
-
265B4-F2864-00-00 COVER, SIDE 1COVER, SIDE 1
-
275B4-F1797-00-00 HINGEHINGE
-
285B4-F146A-00-00 PIN 1PIN 1
-
295B4-F3447-00-00 CLIPCLIP
-
302P5-K7515-00-00 BUSH, RUBBER 1BUSH, RUBBER 1
-
315B4-F2929-00-00 BAND, RUBBERBAND, RUBBER
-
3290387-06089-00 COLLARCOLLAR
-
335B4-F1739-00-00 BOLTBOLT
-
345B4-F1722-00-00 BOLT 2BOLT 2
-
355B4-F197J-00-00 HINGE 1HINGE 1
-
365B4-F389F-00-00 HANDLE, LATCHHANDLE, LATCH
-
3798907-05020-00 SCREW, BINDSCREW, BIND
-
385B4-F2149-00-00 WASHERWASHER
-
3995602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
405UG-K7526-00-00 WASHER 2WASHER 2
-
415B4-K7519-00-00 BOLTBOLT
-
425B4-F389E-00-00 LATCHLATCH
-
435B4-F1738-00-00 BOLTBOLT
-
445TG-82121-10-00 PAD, BATTERYPAD, BATTERY
-
455B4-F2868-00-00 COVER, SIDE 2COVER, SIDE 2
-
465B4-F1797-00-00 HINGEHINGE
-
475B4-F146A-00-00 PIN 1PIN 1
-
485B4-F3447-00-00 CLIPCLIP
-
492P5-K7515-00-00 BUSH, RUBBER 1BUSH, RUBBER 1
-
505B4-F2929-00-00 BAND, RUBBERBAND, RUBBER
-
5190387-06089-00 COLLARCOLLAR
-
525B4-F1739-00-00 BOLTBOLT
-
535B4-F1722-00-00 BOLT 2BOLT 2
-
545B4-F197K-00-00 HINGE 2HINGE 2
-
555B4-F389F-00-00 HANDLE, LATCHHANDLE, LATCH
-
5698907-05020-00 SCREW, BINDSCREW, BIND
-
575B4-F2149-00-00 WASHERWASHER
-
5895602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
595UG-K7526-00-00 WASHER 2WASHER 2
-
605B4-K7519-00-00 BOLTBOLT
-
615B4-F389E-00-00 LATCHLATCH
-
625B4-F1738-00-00 BOLTBOLT
