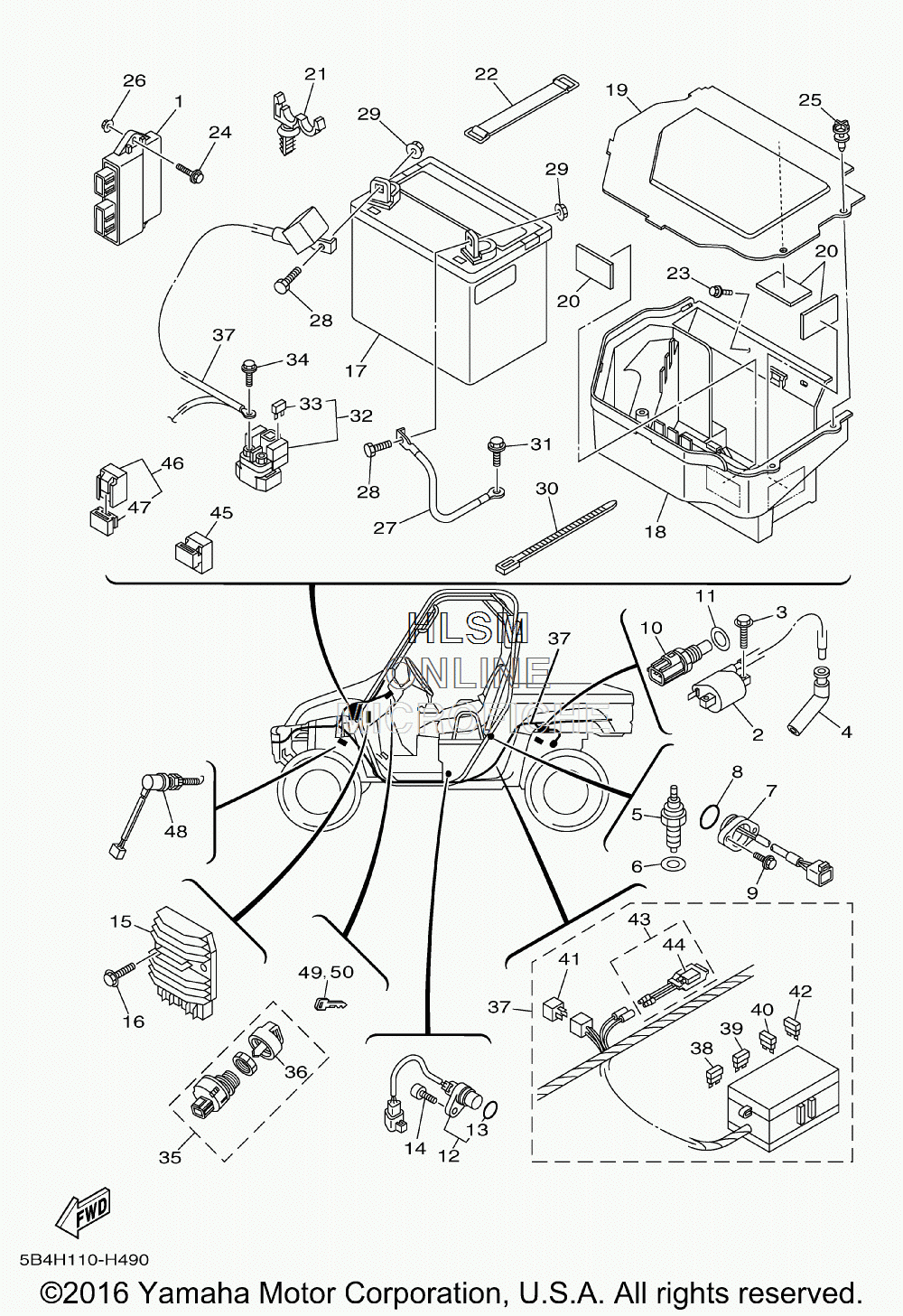

ELECTRICAL для Yamaha RHINO 700 FI SPECIAL EDITION II - 2009 года выпуска
-
№АртикулНазвание
-
15B4-8591A-01-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
25YU-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
397002-06020-00 BOLTBOLT
-
45B4-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
53GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
690430-10148-00 GASKETGASKET
-
73B4-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
893210-29196-00 O-RINGO-RING
-
990119-06137-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
108CC-85790-01-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
1190430-12202-00 GASKETGASKET
-
123B4-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
134D9-81168-00-00 ...O-RING...O-RING
-
1491312-06020-00 BOLTBOLT
-
151D7-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1690105-06833-00 BOLT, FLANGEBOLT, FLANGE
-
17BTG-11U1L-D0-00 BATTERY ASSY (GS U1L-11)BATTERY ASSY (GS U1L-11)
-
185B4-H212B-00-00 BOX, BATTERY 1BOX, BATTERY 1
-
195B4-H2129-00-00 COVER, BATTERYCOVER, BATTERY
-
204XE-F4145-00-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
2190464-12830-00 CLAMPCLAMP
-
223L8-82131-01-00 BAND, BATTERYBAND, BATTERY
-
2390119-06868-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2495812-06025-00 BOLT, FLANGEBOLT, FLANGE
-
255UG-F3483-00-00 RIVETRIVET
-
2695702-06500-00 NUT, FLANGENUT, FLANGE
-
275B4-H2116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
2897080-08020-00 BOLTBOLT
-
2990179-08015-00 NUTNUT
-
3090464-31827-00 CLAMPCLAMP
-
3195822-06014-00 BOLT, FLANGEBOLT, FLANGE
-
325B4-81940-00-00 STARTER RELAY ASSY (RC19-080A)STARTER RELAY ASSY (RC19-080A)
-
3342X-82151-00-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
3495022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
355UG-H2510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
365UG-H2579-00-00 ...CAP, KEY...CAP, KEY
-
375B4-82590-20-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
385JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
395JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
405PS-82151-00-00 ...FUSE (40A)...FUSE (40A)
-
414WA-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
425JJ-82151-70-00 ...FUSE (25A-BL)...FUSE (25A-BL)
-
435B4-82180-00-00 ...CIRCUIT BREAKER ASSY...CIRCUIT BREAKER ASSY
-
445B4-82560-00-00 ......THERMO SWITCH ASSY......THERMO SWITCH ASSY
-
455DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
465EA-81950-20-00 RELAY ASSY (5EA-02)RELAY ASSY (5EA-02)
-
475EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
484KB-82530-10-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
495UG-H2511-09-00 KEY BLANK (A) (5000~5149) (OPT)KEY BLANK (A) (5000~5149) (OPT)
-
505UG-H2511-19-00 KEY BLANK (B) (5150~5299) (OPT)KEY BLANK (B) (5150~5299) (OPT)
