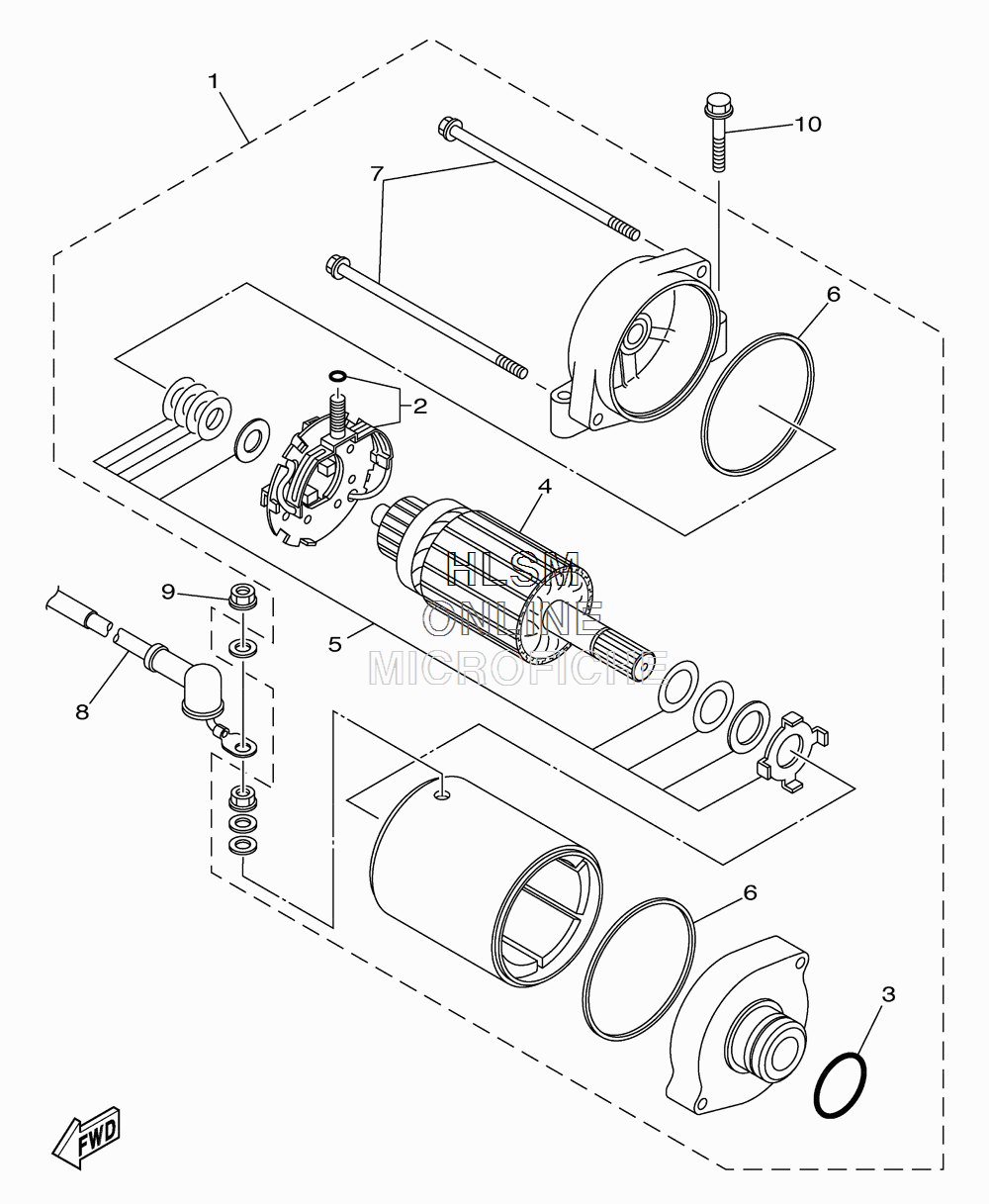

STARTING MOTOR для Yamaha RHINO 700 FI SPORT EDITION - 2011 года выпуска
-
№АртикулНазвание
-
11S3-81890-00-00 MOTOR ASSYMOTOR ASSY
-
23AJ-81801-00-00 BRUSH SETBRUSH SET
-
31FK-81847-00-00 O-RINGO-RING
-
44NK-81850-00-00 ARMATURE ASSYARMATURE ASSY
-
53KS-81809-00-00 WASHER KITWASHER KIT
-
611H-81844-00-00 GASKETGASKET
-
73AJ-81826-00-00 BOLTBOLT
-
85UG-H1815-02-00 CORD, STARTER MOTORCORD, STARTER MOTOR
-
94XV-8182A-00-00 NUTNUT
-
1095022-06030-00 BOLT, FLANGEBOLT, FLANGE
