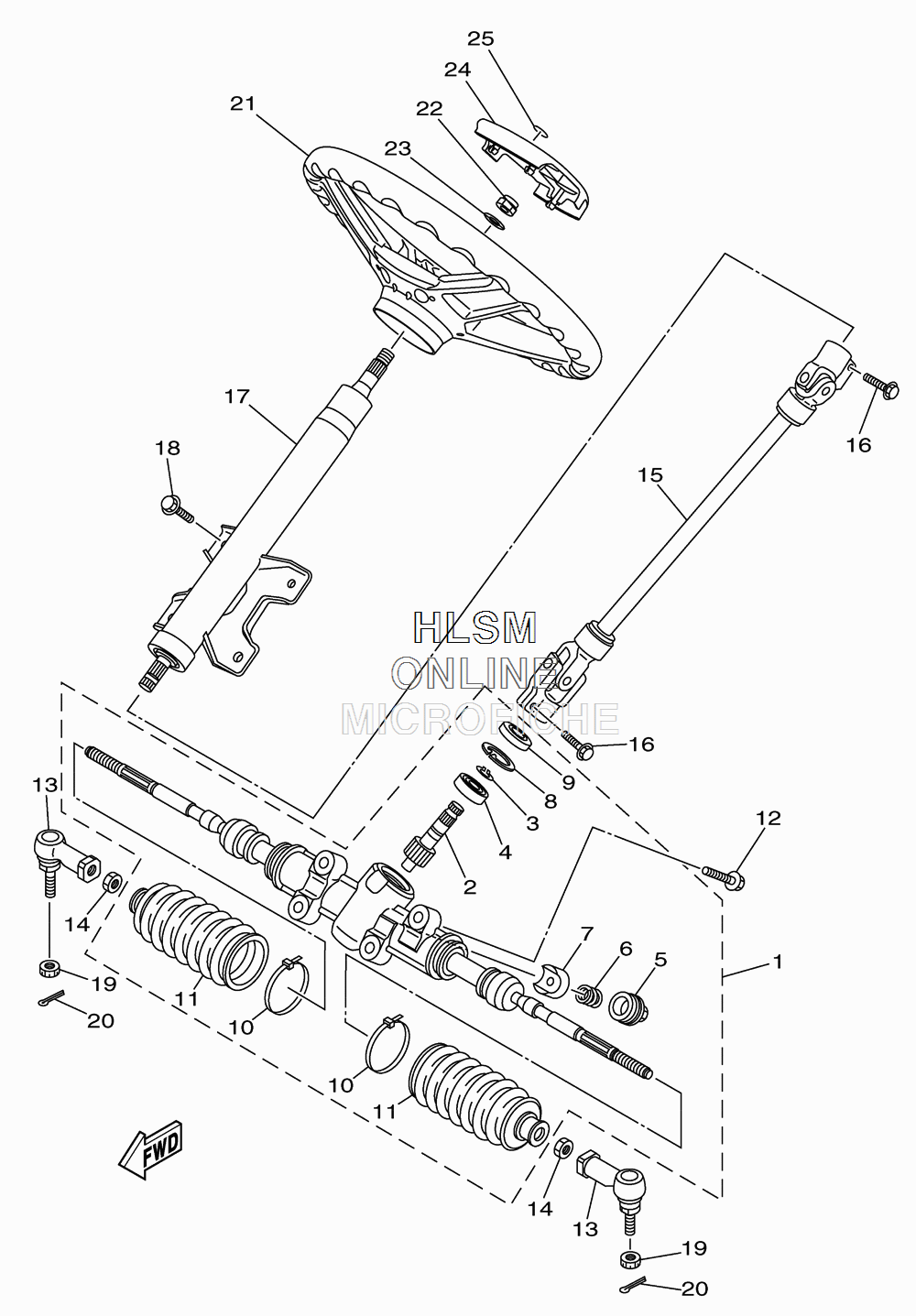

STEERING для Yamaha RHINO 700 FI - 2011 года выпуска
-
№АртикулНазвание
-
15UG-F3400-00-00 STEERING ASSYSTEERING ASSY
-
25UG-F3863-00-00 GEAR, STEERING DRIVEGEAR, STEERING DRIVE
-
35UG-F3183-00-00 CIRCLIPCIRCLIP
-
45UG-F3812-00-00 PLANE BEARING, STEERINGPLANE BEARING, STEERING
-
55UG-F387G-00-00 COVER, ADJUSTCOVER, ADJUST
-
65UG-F387K-00-00 SPRING, PRESSURESPRING, PRESSURE
-
75UG-F387F-00-00 PAD, PRESSUREPAD, PRESSURE
-
85UG-F387J-00-00 RING, STOPPERRING, STOPPER
-
95UG-F3844-00-00 SEALSEAL
-
105UG-F3489-00-00 BANDBAND
-
115UG-F3527-00-00 SEAL, DUST 1SEAL, DUST 1
-
1295022-10025-00 BOLT, FLANGEBOLT, FLANGE
-
135B4-23841-00-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
141P0-F3833-00-00 NUT 1NUT 1
-
155UG-F3840-01-00 STEERING SHAFT ASSYSTEERING SHAFT ASSY
-
1695022-08025-00 BOLT, FLANGEBOLT, FLANGE
-
175UG-F3811-10-00 COLUMN, STEERINGCOLUMN, STEERING
-
1895812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
1990171-12001-00 NUT, CASTLENUT, CASTLE
-
2091402-20020-00 PIN, COTTERPIN, COTTER
-
2116B-F3838-00-00 WHEEL, STEERINGWHEEL, STEERING
-
2290185-12008-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2392902-12200-00 WASHERWASHER
-
2416B-F3818-00-00 COVER, STEERINGCOVER, STEERING
-
2516B-F175B-10-00 TUNING FORK MARKTUNING FORK MARK
