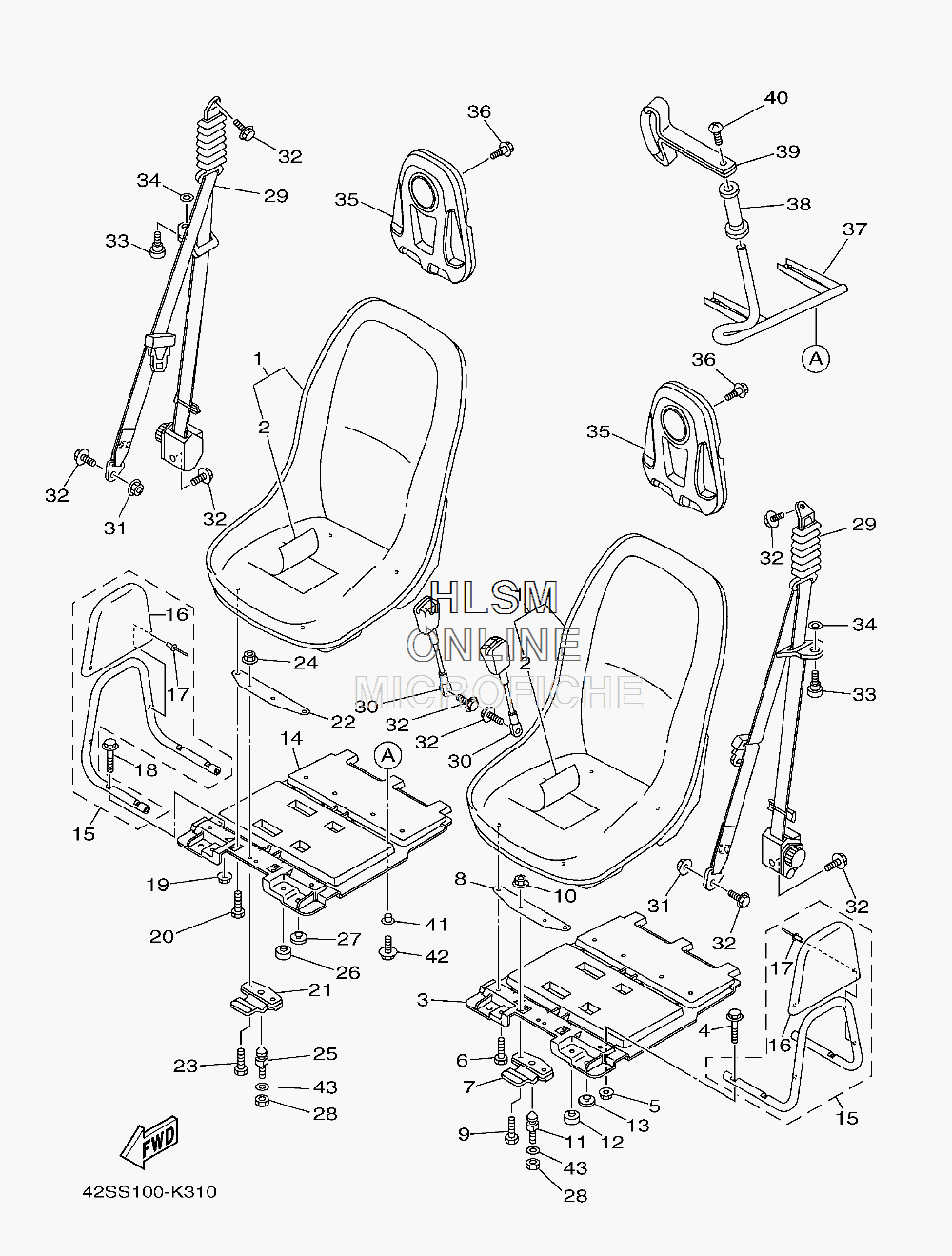

SEAT для Yamaha RHINO 700 SPECIAL EDITION - 2012 года выпуска
-
№АртикулНазвание
-
15UG-F4710-60-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
25UG-F470F-60-00 ...SEAT COVER COMP....SEAT COVER COMP.
-
35UG-F470E-01-00 BOTTOM PLATE COMP.BOTTOM PLATE COMP.
-
495812-08030-00 BOLT, FLANGEBOLT, FLANGE
-
595602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
695822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
7F1B-U3850-02-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
85B4-F4761-00-00 HANDLE, SEATHANDLE, SEAT
-
995822-06040-00 BOLT, FLANGEBOLT, FLANGE
-
1095602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
11GH1-U3774-00-00 PINPIN
-
124XE-F4747-00-00 DAMPER, SEATDAMPER, SEAT
-
13371-82121-00-00 PAD, BATTERYPAD, BATTERY
-
145UG-F470E-01-00 BOTTOM PLATE COMP.BOTTOM PLATE COMP.
-
155B4-F470K-00-00 ASSIST GRIP ASSY., 2ASSIST GRIP ASSY., 2
-
165B4-F475X-00-00 ...COVER, GRIP ASSIST 2...COVER, GRIP ASSIST 2
-
1790267-32806-00 ...RIVET, BLIND...RIVET, BLIND
-
1895812-08030-00 BOLT, FLANGEBOLT, FLANGE
-
1995602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2095822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
21F1B-U3850-02-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
225B4-F4761-00-00 HANDLE, SEATHANDLE, SEAT
-
2395822-06040-00 BOLT, FLANGEBOLT, FLANGE
-
2495602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
25GH1-U3774-00-00 PINPIN
-
264XE-F4747-00-00 DAMPER, SEATDAMPER, SEAT
-
27371-82121-00-00 PAD, BATTERYPAD, BATTERY
-
2890185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2916B-F470L-01-00 FRONT SEAT BELT ASSY., 1FRONT SEAT BELT ASSY., 1
-
305B4-F470R-00-00 FRONT BELT RECEIVER ASSYFRONT BELT RECEIVER ASSY
-
3195602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3295812-12020-00 BOLT, FLANGEBOLT, FLANGE
-
3316B-F3394-01-00 BOLT, SPECIALBOLT, SPECIAL
-
3490201-11801-00 WASHER, PLATEWASHER, PLATE
-
355UG-F472L-50-00 HEAD RESTHEAD REST
-
3690109-063F5-00 BOLTBOLT
-
375B4-F474A-00-00 ASSIST, GRIPASSIST, GRIP
-
385B4-F6241-00-00 GRIPGRIP
-
395B4-F4773-00-00 HANDLE, SEATHANDLE, SEAT
-
4098902-06020-00 SCREW, BINDSCREW, BIND
-
4190387-06210-00 COLLARCOLLAR
-
4290105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
4390201-109U6-00 WASHER, PLATEWASHER, PLATE
