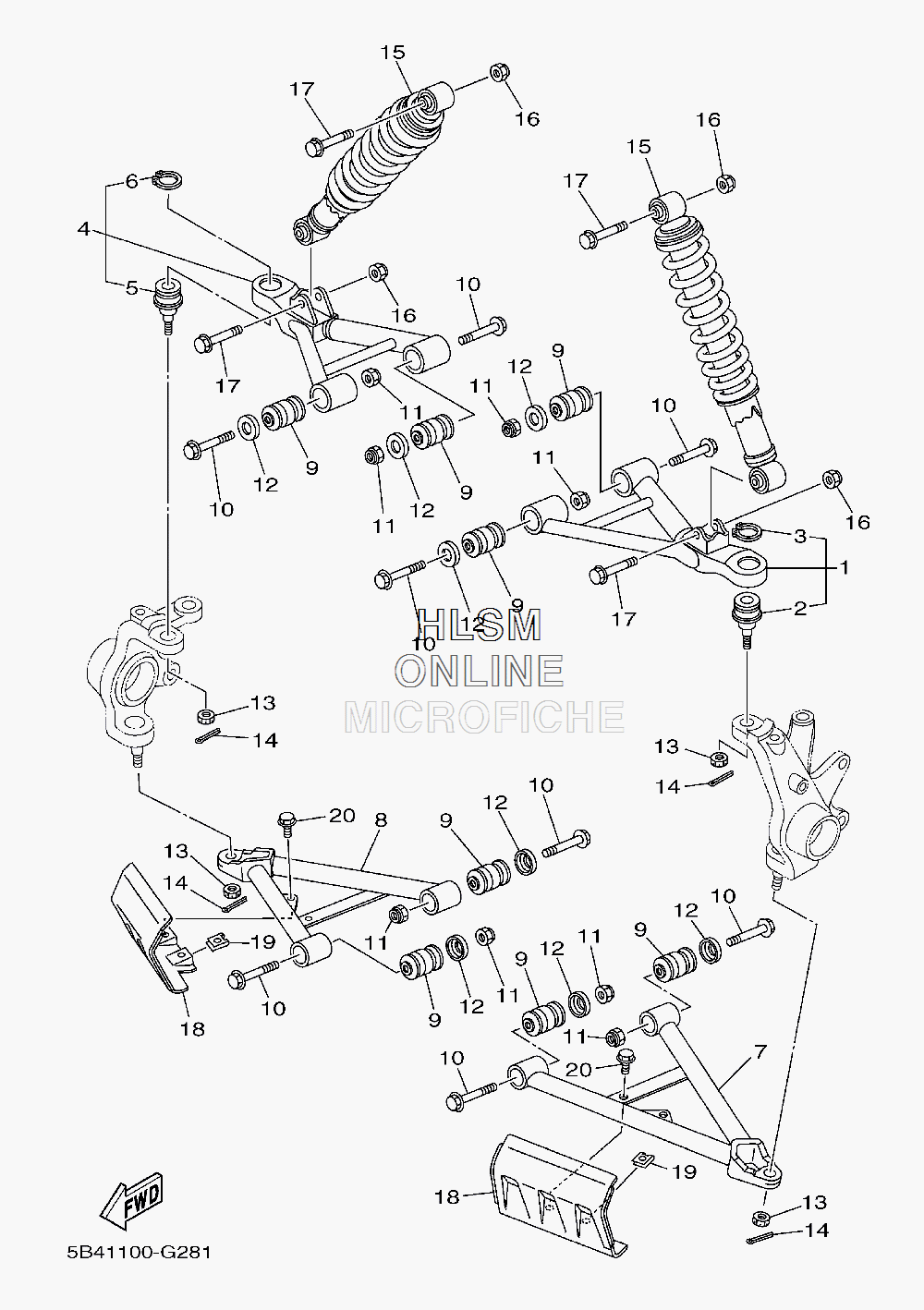

SUSPENSION - FRONT WHEEL для Yamaha RHINO 700 - 2012 года выпуска
-
№АртикулНазвание
-
15UG-F3540-01-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
237S-23549-01-00 ...BALL JOINT 1...BALL JOINT 1
-
399009-32400-00 ...CIRCLIP...CIRCLIP
-
45UG-F3550-01-00 FRONT UPPER ARM COMP. (RIGHT)FRONT UPPER ARM COMP. (RIGHT)
-
537S-23549-01-00 ...BALL JOINT 1...BALL JOINT 1
-
699009-32400-00 ...CIRCLIP...CIRCLIP
-
75UG-F357A-00-00 ARM, FRONT LOWER (LEFT)ARM, FRONT LOWER (LEFT)
-
85UG-F358A-00-00 ARM, FRONT LOWER (RIGHT)ARM, FRONT LOWER (RIGHT)
-
95KM-23526-00-00 BUSHBUSH
-
1090105-10267-00 BOLT, FLANGEBOLT, FLANGE
-
1190185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
125KM-22149-10-00 WASHERWASHER
-
1390171-12001-00 NUT, CASTLENUT, CASTLE
-
1491402-25020-00 PIN, COTTERPIN, COTTER
-
155B4-F3350-00-00 SHOCK ABSORBER ASSYSHOCK ABSORBER ASSY
-
1690185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1790105-10841-00 BOLT, FLANGEBOLT, FLANGE
-
185B4-F3123-00-00 COVER, UNDER 1COVER, UNDER 1
-
1990183-06053-00 NUT, SPRINGNUT, SPRING
-
2095812-06012-00 BOLT, FLANGEBOLT, FLANGE
