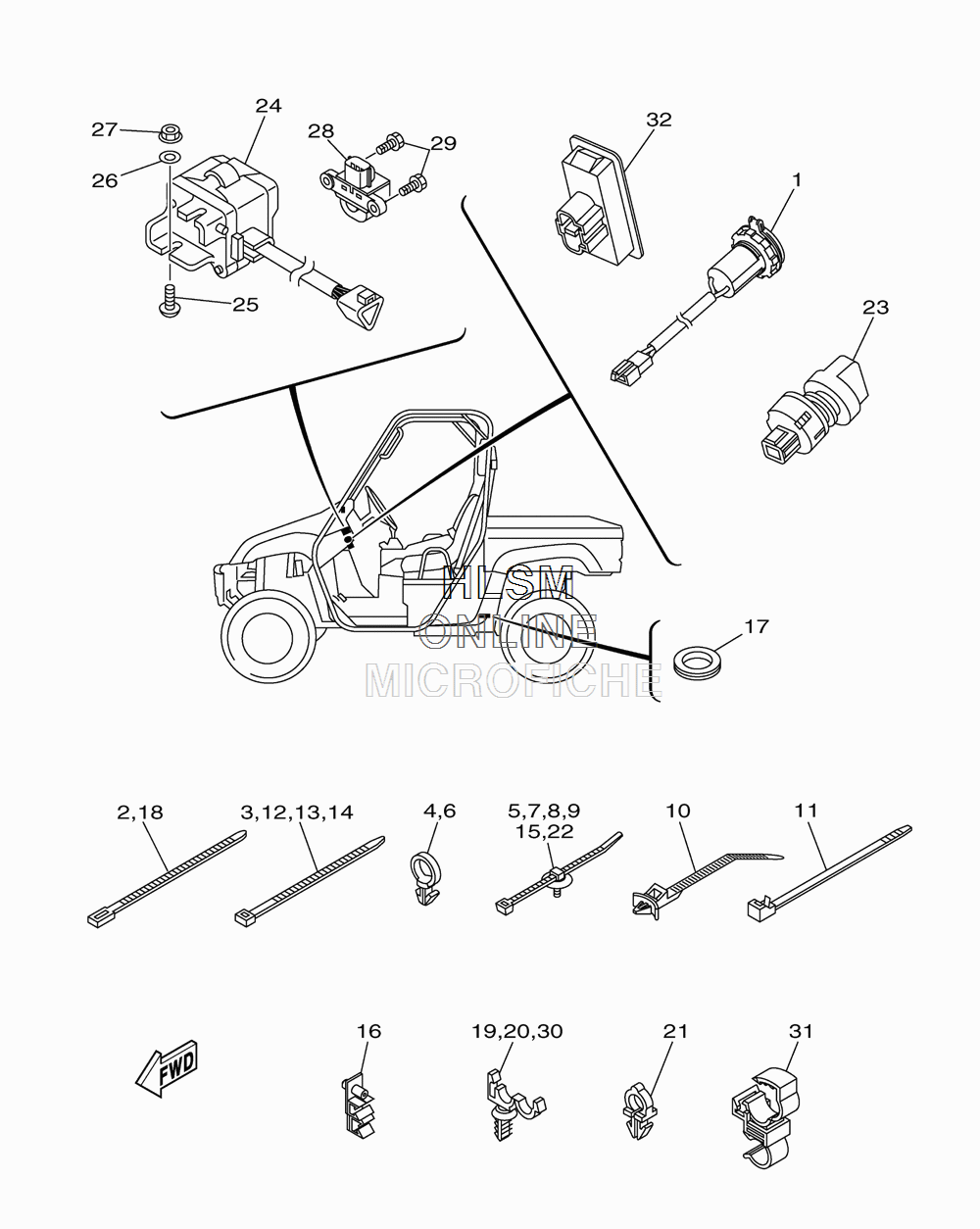

REFLECTOR ASSY для Yamaha RHINO 700 - 2013 года выпуска
-
№АртикулНазвание
-
11HP-H254B-00-00 TERMINAL COMP.TERMINAL COMP.
-
290464-40825-00 CLAMPCLAMP
-
390464-48800-00 CLAMPCLAMP
-
490464-19815-00 CLAMPCLAMP
-
55B4-F1338-00-00 CLAMPCLAMP
-
690464-19815-00 CLAMPCLAMP
-
75B4-F1338-00-00 CLAMPCLAMP
-
85B4-F1338-00-00 CLAMPCLAMP
-
95B4-F1338-00-00 CLAMPCLAMP
-
1090464-38800-00 CLAMPCLAMP
-
1190464-51800-00 CLAMP (213X7.60)CLAMP (213X7.60)
-
1290464-48800-00 CLAMPCLAMP
-
1390464-48800-00 CLAMPCLAMP
-
1490464-48800-00 CLAMPCLAMP
-
155B4-F1338-00-00 CLAMPCLAMP
-
165UG-F481H-00-00 CLAMPCLAMP
-
1790480-25856-00 GROMMETGROMMET
-
1890464-40825-00 CLAMPCLAMP
-
1990464-12830-00 CLAMP (D:12MM)CLAMP (D:12MM)
-
2090464-12830-00 CLAMP (D:12MM)CLAMP (D:12MM)
-
2190464-10833-00 CLAMPCLAMP
-
225B4-F1338-00-00 CLAMPCLAMP
-
235UG-H2526-00-00 SWITCH, LAMPSWITCH, LAMP
-
241RB-83976-00-00 SWITCH, HANDLE 1SWITCH, HANDLE 1
-
2590149-05299-00 SCREWSCREW
-
2690201-05039-00 WASHER, PLATEWASHER, PLATE
-
2795702-05300-00 NUT, NYLONNUT, NYLON
-
283B4-82576-00-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
29JW1-F3394-00-00 BOLT, SPECIALBOLT, SPECIAL
-
3090464-12830-00 CLAMP (D:12MM)CLAMP (D:12MM)
-
3190464-12012-00 CLAMPCLAMP
-
325B4-H3530-00-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
