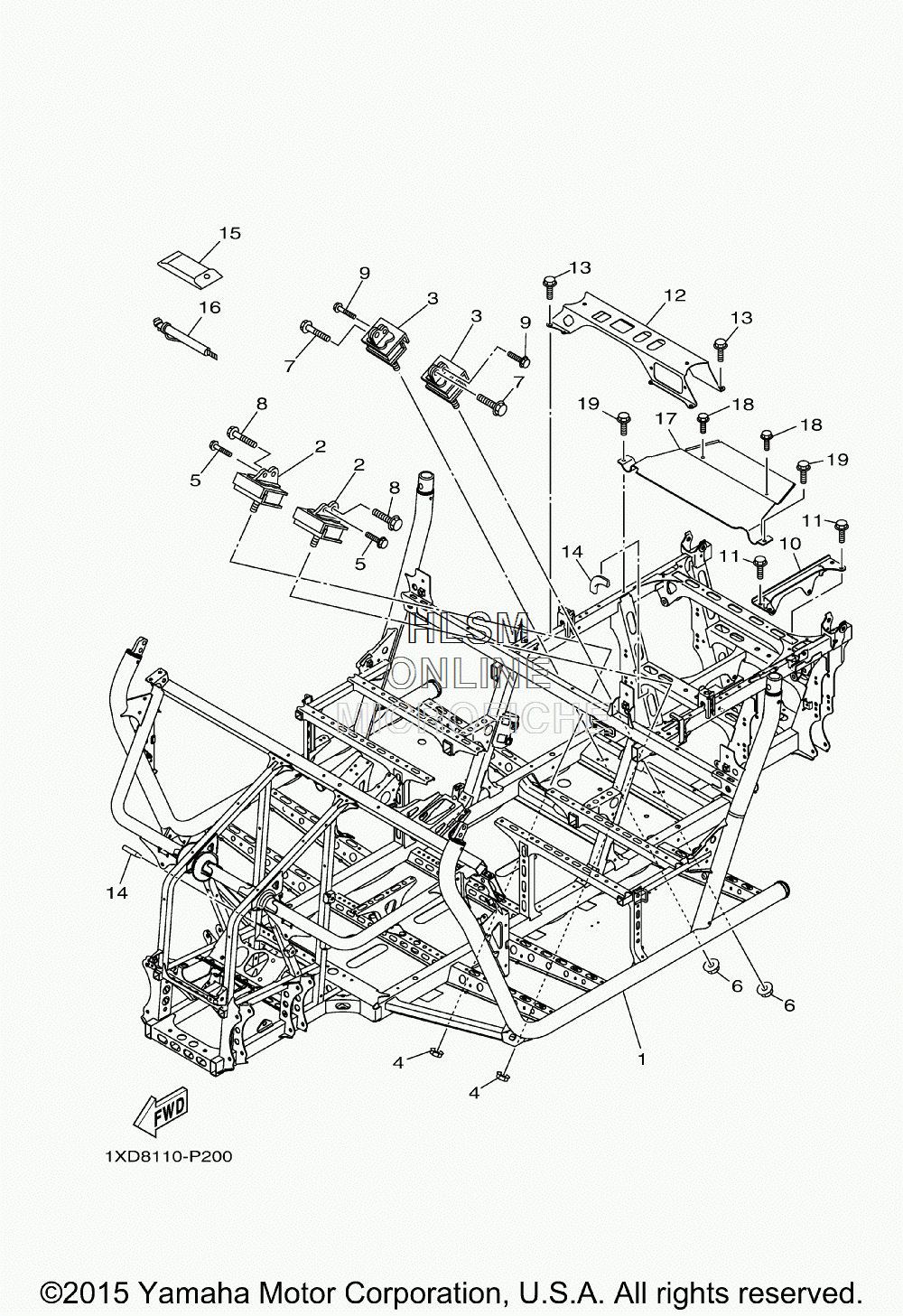

FRAME для Yamaha VIKING 700 EPS SE - 2015 года выпуска
-
№АртикулНазвание
-
11XD-F1110-10-00 FRAME COMP.FRAME COMP.
-
25B4-21485-01-00 DAMPER, RUBBER 1DAMPER, RUBBER 1
-
35B4-21485-01-00 DAMPER, RUBBER 1DAMPER, RUBBER 1
-
490185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
590105-06639-00 BOLT, FLANGEBOLT, FLANGE
-
690185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
795812-10035-00 BOLT, FLANGEBOLT, FLANGE
-
890105-10314-00 BOLT, FLANGEBOLT, FLANGE
-
990105-06639-00 BOLT, FLANGEBOLT, FLANGE
-
102PG-F831T-00-00 STAY, SUPPORT 1STAY, SUPPORT 1
-
1195812-08016-00 BOLT, FLANGEBOLT, FLANGE
-
121XD-F834V-00-00 PROTECTOR 1PROTECTOR 1
-
1390105-08867-00 BOLT, FLANGEBOLT, FLANGE
-
144XY-28347-00-00 MOLE 3MOLE 3
-
155B4-F8100-00-00 TOOL KITTOOL KIT
-
161XD-F811A-00-00 GAUGE, AIRGAUGE, AIR
-
171XD-F2898-10-00 INSULATOR, HEATINSULATOR, HEAT
-
1890105-08867-00 BOLT, FLANGEBOLT, FLANGE
-
1990105-08867-00 BOLT, FLANGEBOLT, FLANGE
