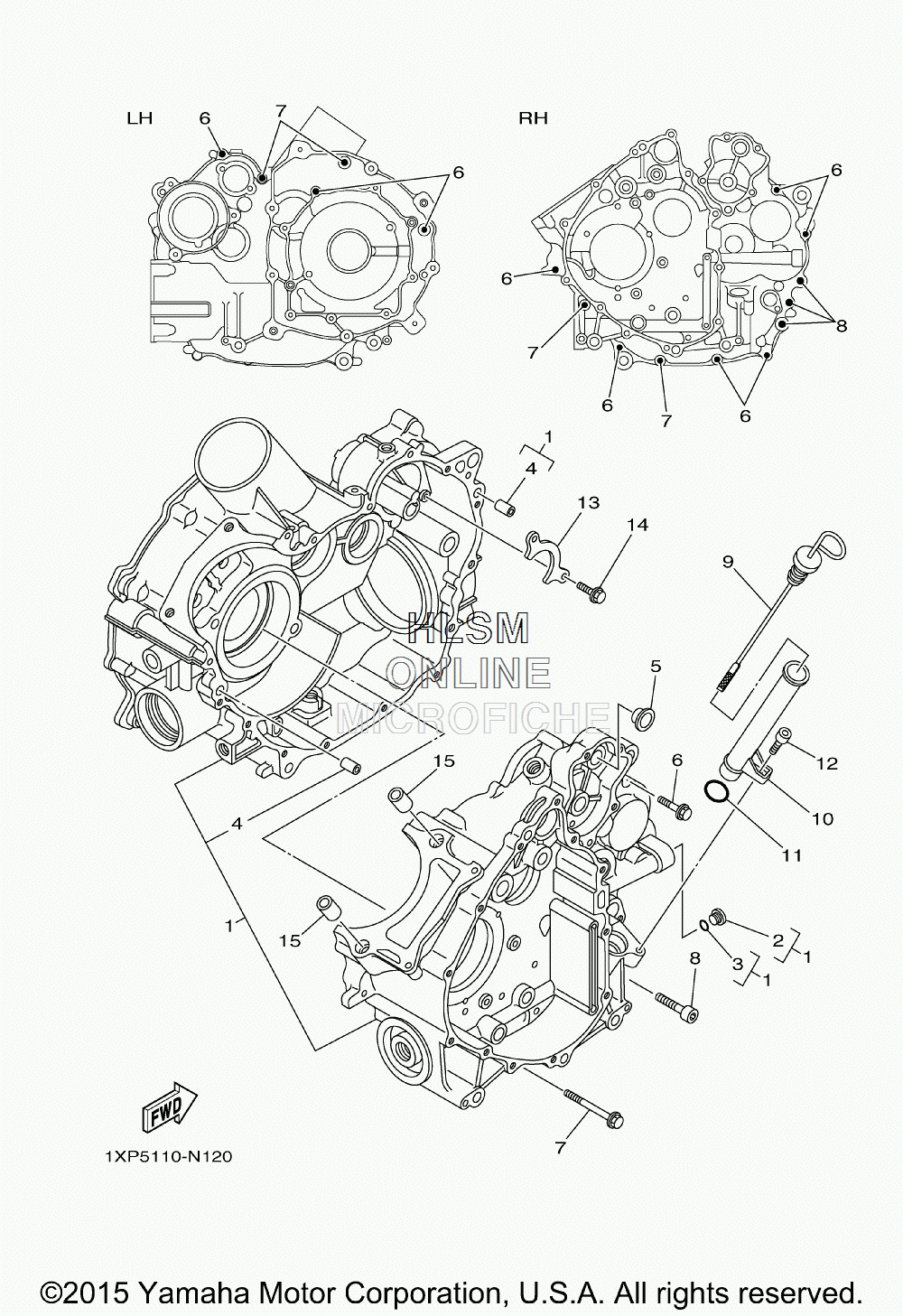

CRANKCASE для Yamaha VIKING 700 HUNTER - 2015 года выпуска
-
№АртикулНазвание
-
13B4-15100-28-00 CRANKCASE ASSYCRANKCASE ASSY
-
236Y-15189-00-00 ...PLUG...PLUG
-
393210-16325-00 ...O-RING...O-RING
-
499530-10116-00 ...PIN, DOWEL...PIN, DOWEL
-
53B4-18581-00-00 SPACER, CAM SHAFTSPACER, CAM SHAFT
-
695022-06030-00 BOLT, FLANGEBOLT, FLANGE
-
795022-06060-00 BOLT, FLANGEBOLT, FLANGE
-
891312-08040-00 BOLTBOLT
-
95B4-15362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
105B4-15112-00-00 PIPE, OILPIPE, OIL
-
1193210-21631-00 O-RINGO-RING
-
1291312-06012-00 BOLT, HEXT. SOCKET HEADBOLT, HEXT. SOCKET HEAD
-
133B4-15388-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
1490105-06082-00 BOLT, FLANGEBOLT, FLANGE
-
1599530-14016-00 PIN, DOWELPIN, DOWEL
Все узлы модели:
- AIR CLEANER W/ INTAKE
- BRAKE - BRAKE SYSTEM
- BRAKE - FRONT CALIPER
- BRAKE - MASTER CYLINDER
- BRAKE - REAR CALIPER
- CAMSHAFT W/ CHAIN
- CARRIER
- CLUTCH
- • CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT - PISTON
- CYLINDER
- CYLINDER HEAD
- DECALS
- DIFFERENTIAL - FRONT
- DIFFERENTIAL - REAR W/ DRIVE SHAFT
- ELECTRICAL
- ELECTRICAL SYSTEM - CONNECTORS
- EXHAUST
- FENDER - FRONT
- FOOTREST
- FRAME
- FUEL TANK
- GENERATOR
- GUARD - ROOF
- HEADLIGHT
- INSTRUMENT PANEL
- MIDDLE DRIVE GEAR
- MODEL INFO - MANUALS
- OIL PUMP
- OPTONAL PARTS
- PARKING BRAKE ASSY
- RACK AND BUMPER
- RADIATOR ASSY
- SEAT
- SEAT 2
- SHIFT CAM W/ FORK
- SHIFT SHAFT
- SIDE COVER
- SIDE COVER 2
- STARTER CLUTCH
- STARTING MOTOR
- STEERING
- SUSPENSION - FRONT WHEEL
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- TAILLIGHT
- THROTTLE BODY ASSY.
- TRANSMISSION
- VALVE ASSY
- WATER PUMP ASSY
- WHEEL - FRONT RIGHT SIDE W/ AXLE ASSY
- WHEEL - FRONT W/ AXLE ASSY
- WHEEL - REAR RIGHT SIDE W/ AXLE ASSY
- WHEEL - REAR W/ AXLE ASSY
