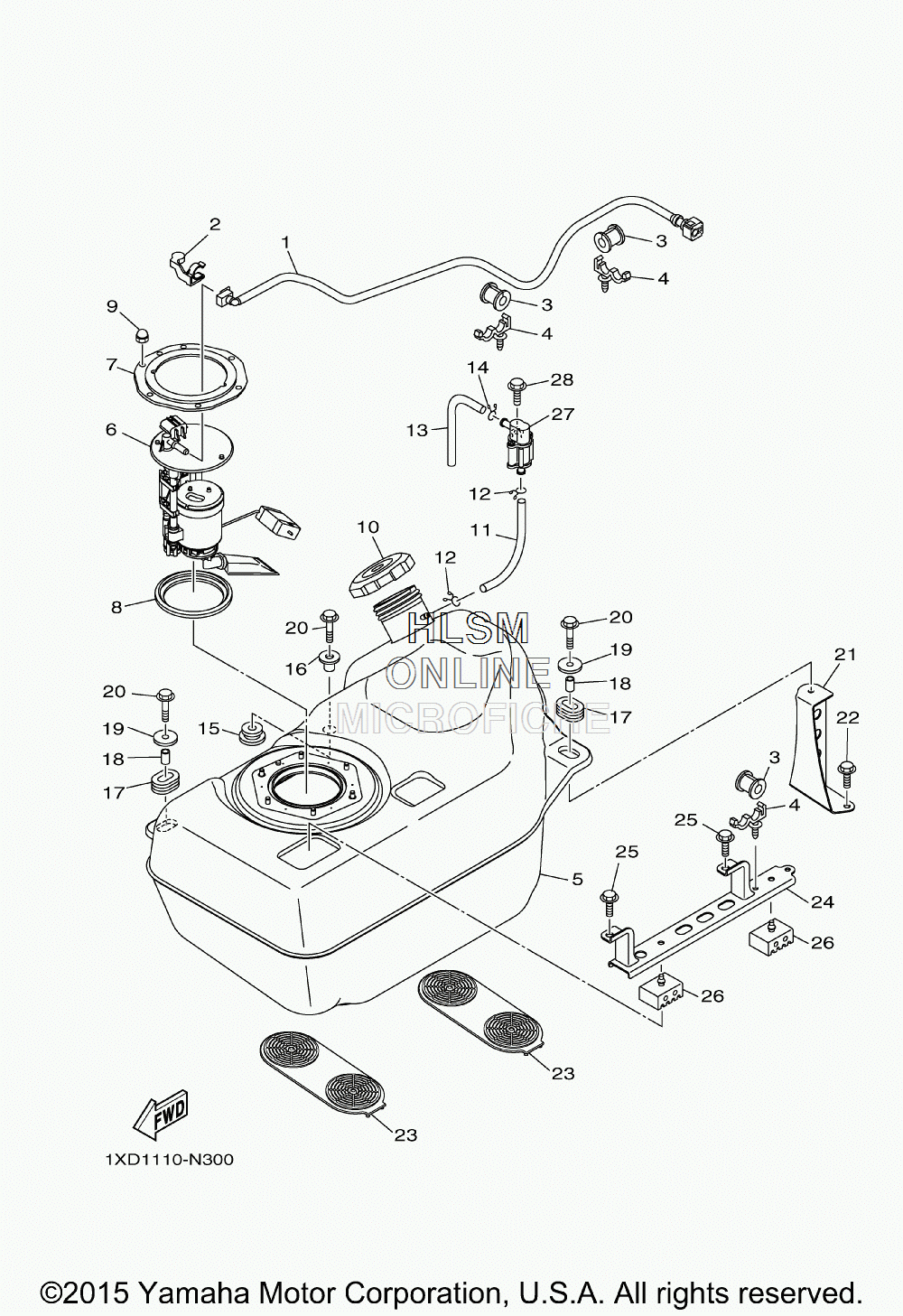

FUEL TANK для Yamaha VIKING VI 700 EPS SE - 2015 года выпуска
-
№АртикулНазвание
-
11XD-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
290464-14004-00 CLAMPCLAMP
-
390480-20543-00 GROMMETGROMMET
-
490464-20010-00 CLAMPCLAMP
-
51XD-F4110-00-00 FUEL TANK COMP.FUEL TANK COMP.
-
63B4-13907-10-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
73B4-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
81S3-24486-00-00 O-RINGO-RING
-
995302-06800-00 NUT, CROWNNUT, CROWN
-
102P5-24610-00-00 CAP ASSYCAP ASSY
-
1190445-09827-00 HOSE (L160)HOSE (L160)
-
1290467-09006-00 CLIPCLIP
-
1390445-09826-00 HOSE (L85)HOSE (L85)
-
1490467-09006-00 CLIPCLIP
-
1590480-18016-00 GROMMETGROMMET
-
1690387-07021-00 COLLARCOLLAR
-
1790480-01400-00 GROMMETGROMMET
-
1890387-061V1-00 COLLARCOLLAR
-
1990201-065G8-00 WASHER, PLATEWASHER, PLATE
-
2095802-06030-00 BOLT, FLANGEBOLT, FLANGE
-
211XD-F4291-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
2290105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
231XD-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
241XD-F4157-00-00 STAY, FUEL TANK 1STAY, FUEL TANK 1
-
2590105-08867-00 BOLT, FLANGEBOLT, FLANGE
-
261XD-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
2728P-24380-00-00 PIPE JOINT ASSYPIPE JOINT ASSY
-
2890105-06832-00 BOLT, FLANGEBOLT, FLANGE
