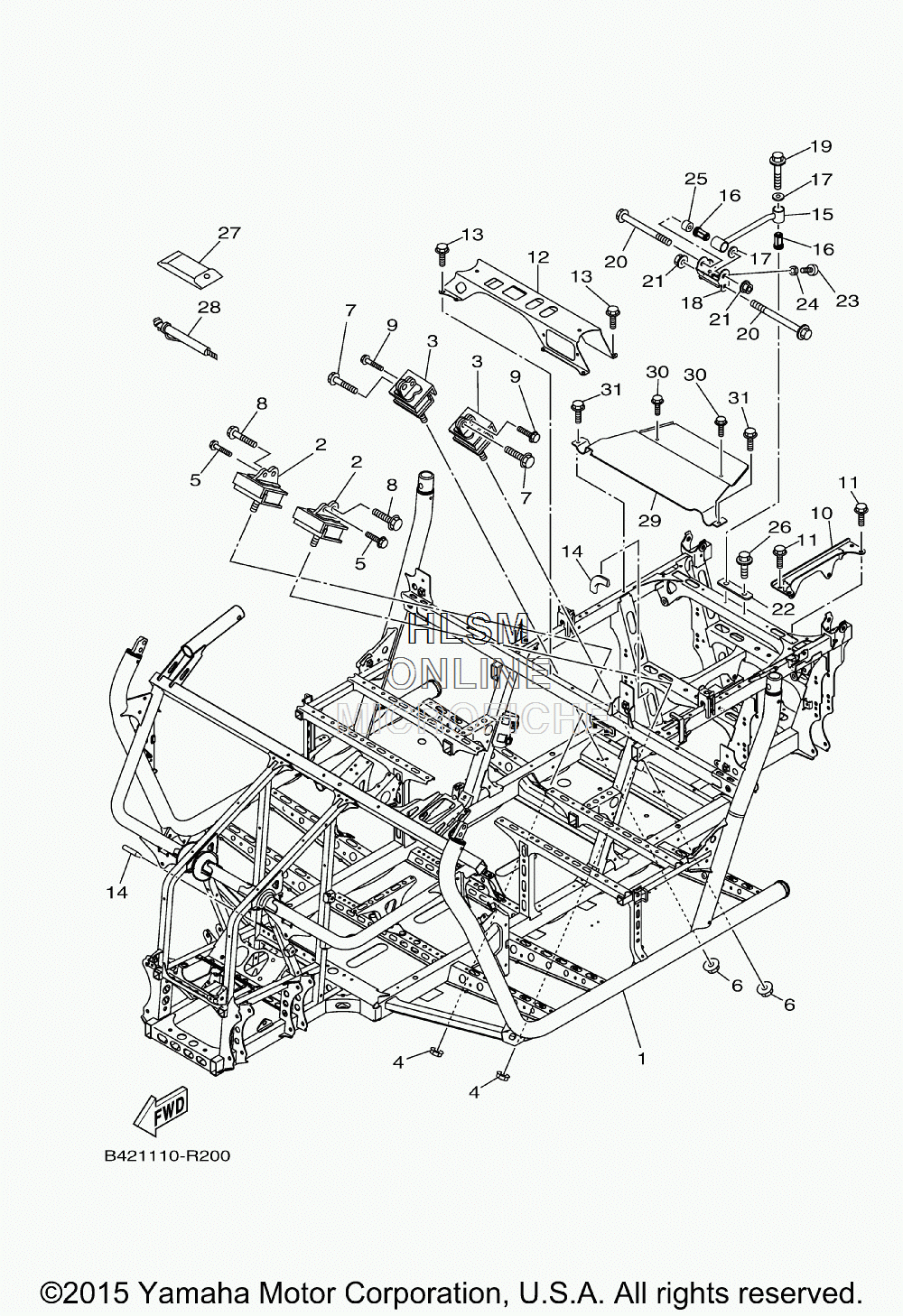

FRAME для Yamaha VIKING EPS HUNTER [YXM70VPHGH] - 2016 года выпуска
-
№АртикулНазвание
-
1B42-F1110-00-00 FRAME COMP.FRAME COMP.
-
22PG-21485-00-00 DAMPER, RUBBER 1DAMPER, RUBBER 1
-
35B4-21485-01-00 DAMPER, RUBBER 1DAMPER, RUBBER 1
-
490185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
590105-06639-00 BOLT, FLANGEBOLT, FLANGE
-
690185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
795812-10035-00 BOLT, FLANGEBOLT, FLANGE
-
890105-10314-00 BOLT, FLANGEBOLT, FLANGE
-
990105-06639-00 BOLT, FLANGEBOLT, FLANGE
-
102PG-F831T-00-00 STAY, SUPPORT 1STAY, SUPPORT 1
-
1195812-08016-00 BOLT, FLANGEBOLT, FLANGE
-
121XD-F834V-00-00 PROTECTOR 1PROTECTOR 1
-
1390105-08867-00 BOLT, FLANGEBOLT, FLANGE
-
144XY-28347-00-00 MOLE 3MOLE 3
-
15B42-F1315-02-00 STAY, ENGINE 1STAY, ENGINE 1
-
165UH-E5336-00-00 DAMPER, ENGINE MOUNT 3DAMPER, ENGINE MOUNT 3
-
175ND-F1486-00-00 DAMPER 2DAMPER 2
-
18B42-F1121-01-00 BRACKET, DAMPERBRACKET, DAMPER
-
1995812-10070-00 BOLT, FLANGEBOLT, FLANGE
-
2095812-10100-00 BOLT, FLANGEBOLT, FLANGE
-
2195602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
22B42-F1158-00-00 BRACKETBRACKET
-
2398502-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2495302-06700-00 NUT, HEXAGONNUT, HEXAGON
-
25B42-F1116-00-00 COLLARCOLLAR
-
2695812-10020-00 BOLT, FLANGEBOLT, FLANGE
-
275B4-F8100-00-00 TOOL KITTOOL KIT
-
281XD-F811A-00-00 GAUGE, AIRGAUGE, AIR
-
291XD-F2898-21-00 INSULATOR, HEATINSULATOR, HEAT
-
3090105-08867-00 BOLT, FLANGEBOLT, FLANGE
-
3190105-08867-00 BOLT, FLANGEBOLT, FLANGE
