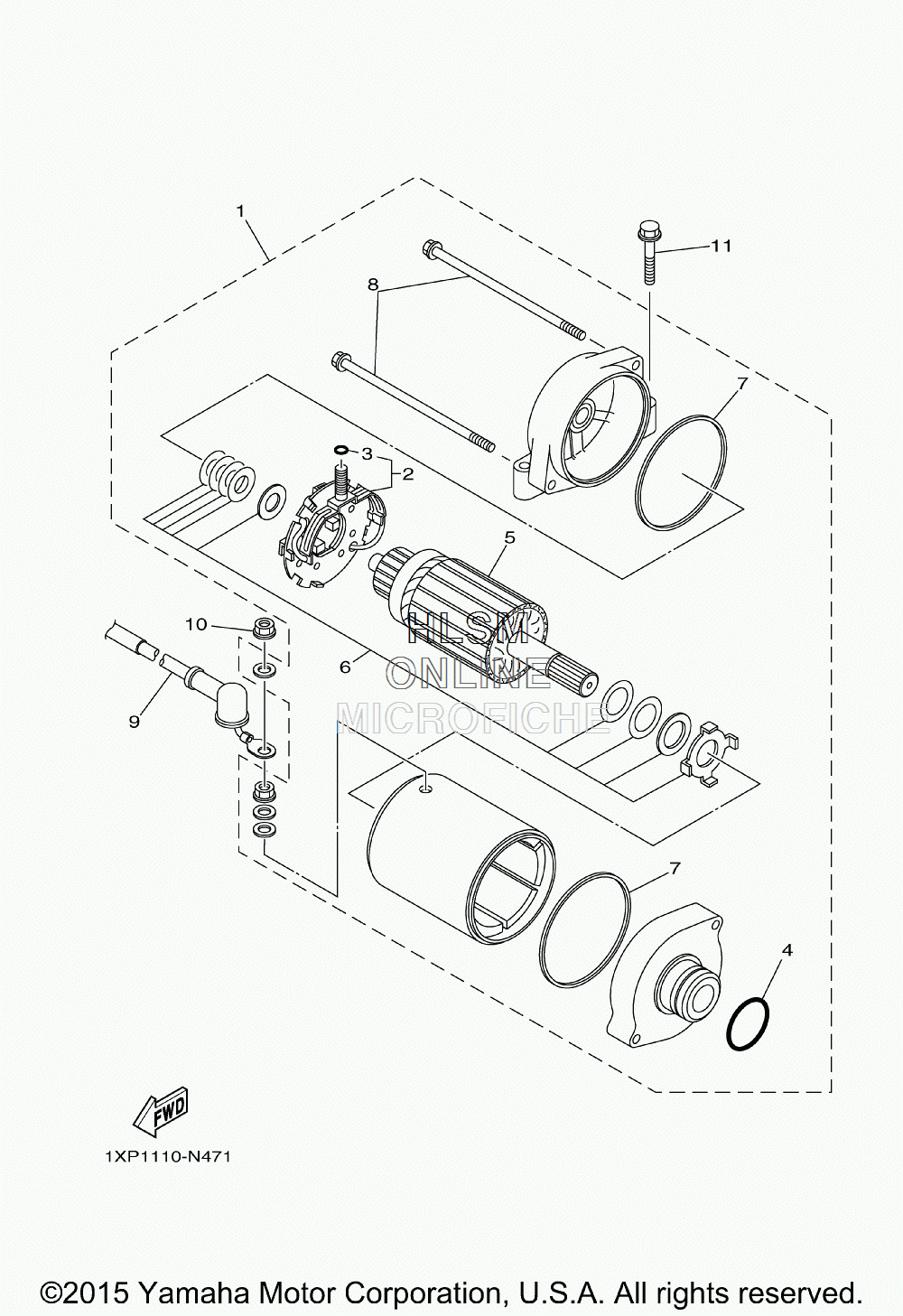

STARTING MOTOR для Yamaha VIKING EPS SPECIAL EDITION [YXM70VPSGB] - 2016 года выпуска
-
№АртикулНазвание
-
11S3-81890-00-00 MOTOR ASSYMOTOR ASSY
-
23AJ-81801-00-00 ...BRUSH SET...BRUSH SET
-
33TB-81847-00-00 ......O-RING......O-RING
-
41FK-81847-00-00 ...O-RING...O-RING
-
54NK-81850-00-00 ...ARMATURE ASSY...ARMATURE ASSY
-
63KS-81809-00-00 ...WASHER KIT...WASHER KIT
-
711H-81844-00-00 ...GASKET...GASKET
-
83AJ-81826-00-00 ...BOLT...BOLT
-
91XD-H1815-00-00 CORD, STARTER MOTORCORD, STARTER MOTOR
-
104XV-8182A-00-00 NUTNUT
-
1195022-06030-00 BOLT, FLANGEBOLT, FLANGE
