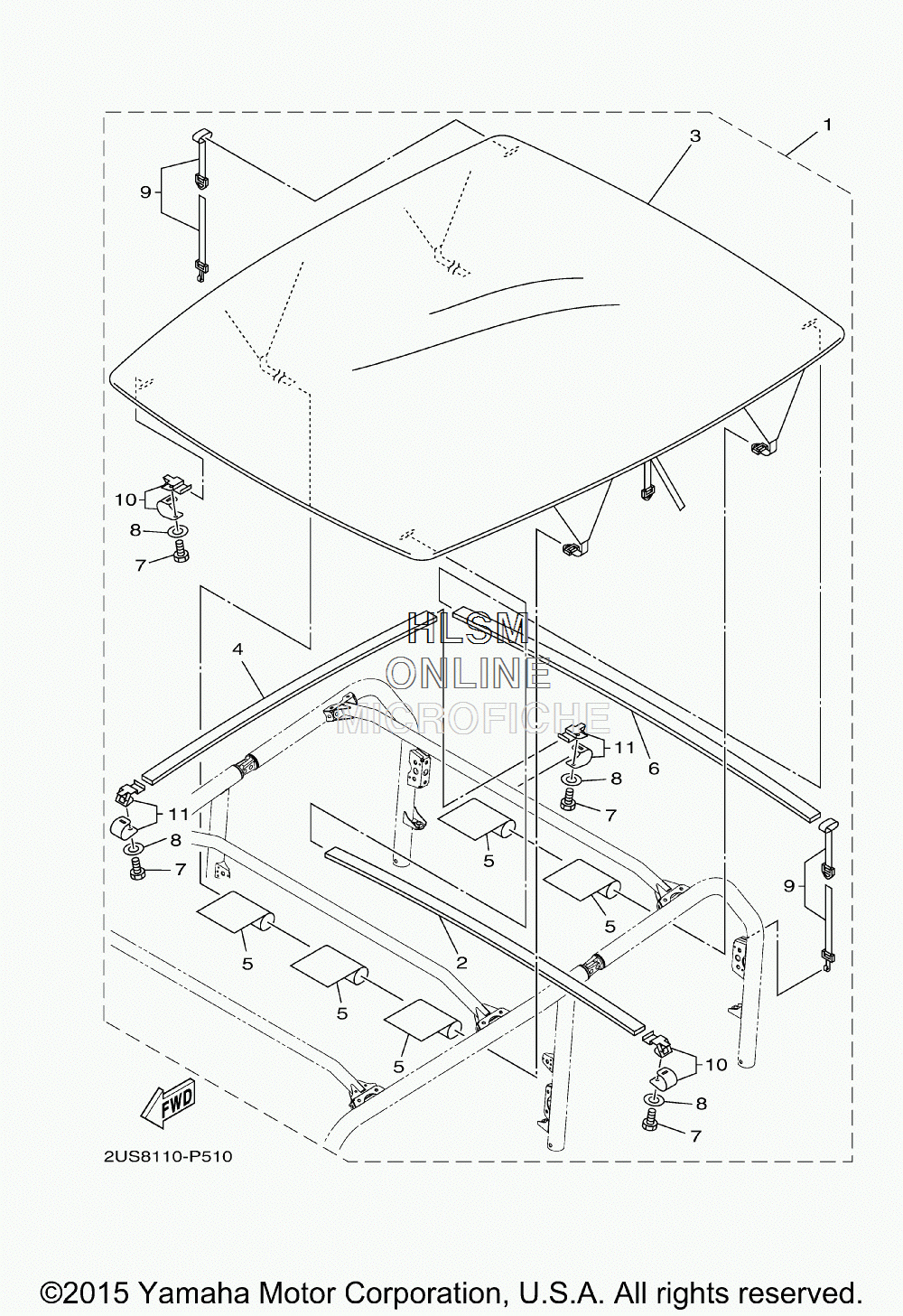

SUN ROOF для Yamaha VIKING VI EPS SPECIAL EDITION - 2016 года выпуска
-
№АртикулНазвание
-
12PG-K8314-00-00 COVER, SUN ROOFCOVER, SUN ROOF
-
22PG-K831G-00-00 ...STAY, SUNROOF COVER 1...STAY, SUNROOF COVER 1
-
32PG-K833J-00-00 ...MEMBER, SUNROOF...MEMBER, SUNROOF
-
42PG-K831H-00-00 ...STAY, SUNROOF COVER 2...STAY, SUNROOF COVER 2
-
52PG-K8315-00-00 ...TRIM, ROOF...TRIM, ROOF
-
62PG-K832N-00-00 ...STAY, SUNROOF COVER 3...STAY, SUNROOF COVER 3
-
72PG-K8384-00-00 ...BOLT...BOLT
-
82PG-K7728-00-00 ...WASHER...WASHER
-
92PG-K8342-00-00 ...HOOK, SUPPORT...HOOK, SUPPORT
-
102PG-K7135-00-00 ...CLAMP 1...CLAMP 1
-
112PG-K7136-00-00 ...CLAMP 2...CLAMP 2
