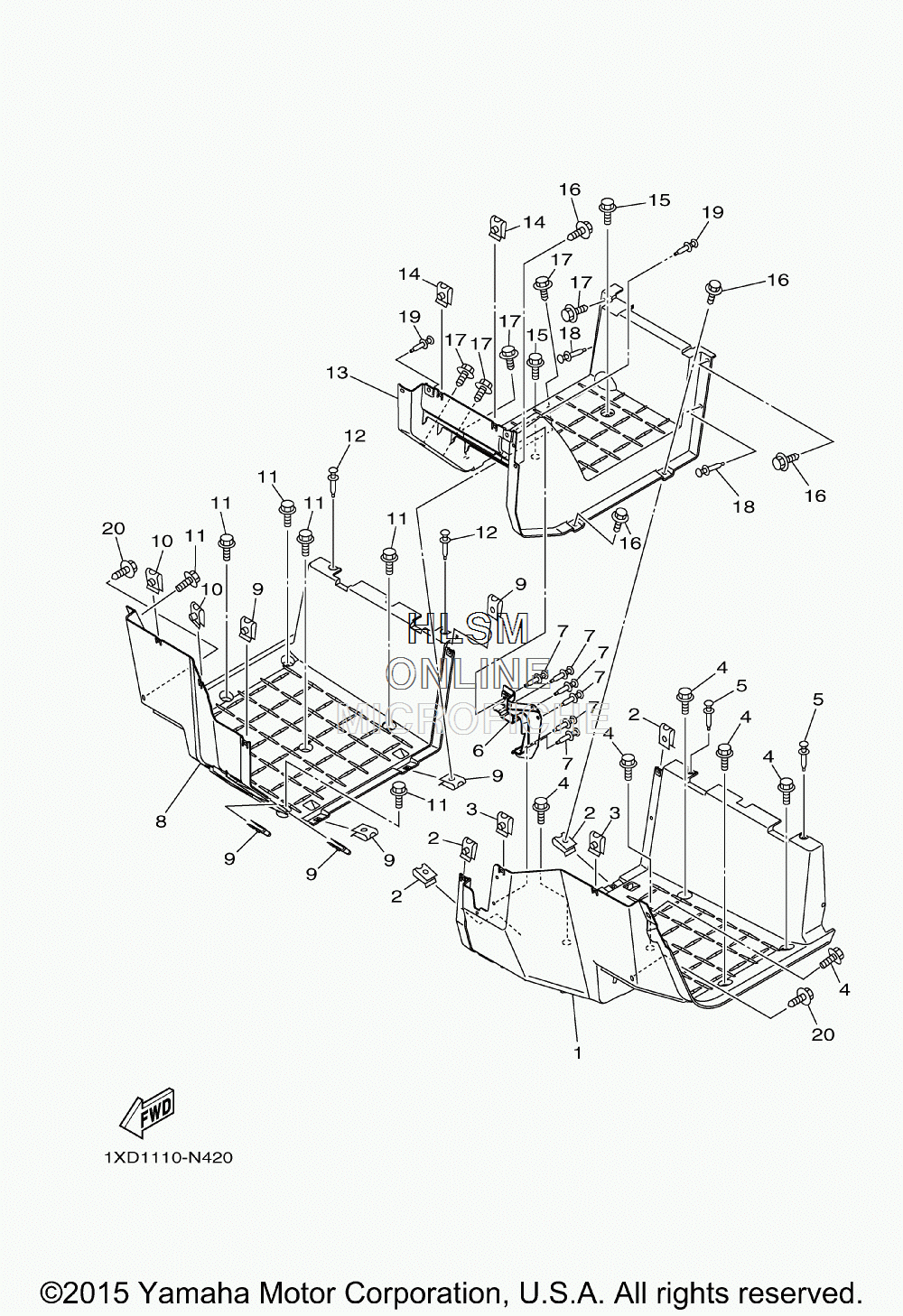

FOOTREST для Yamaha VIKING VI EPS [YXC70VPXGR] - 2016 года выпуска
-
№АртикулНазвание
-
11XD-F7411-00-00 FOOTREST 1FOOTREST 1
-
290183-060A6-00 NUT, SPRINGNUT, SPRING
-
390183-060A6-00 NUT, SPRINGNUT, SPRING
-
4JW1-K6179-01-00 BOLT, SPECIAL 1BOLT, SPECIAL 1
-
590269-07803-00 RIVETRIVET
-
61XD-F7286-00-00 COVER, DUSTCOVER, DUST
-
790269-07803-00 RIVETRIVET
-
81XD-F7421-00-00 FOOTREST 2FOOTREST 2
-
990183-060A6-00 NUT, SPRINGNUT, SPRING
-
1090183-060A6-00 NUT, SPRINGNUT, SPRING
-
11JW1-K6179-01-00 BOLT, SPECIAL 1BOLT, SPECIAL 1
-
1290269-07803-00 RIVETRIVET
-
131XD-F7413-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
1490183-060A6-00 NUT, SPRINGNUT, SPRING
-
15JW1-K6179-01-00 BOLT, SPECIAL 1BOLT, SPECIAL 1
-
1690119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1790119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1890269-07803-00 RIVETRIVET
-
1990269-07803-00 RIVETRIVET
-
2090119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
