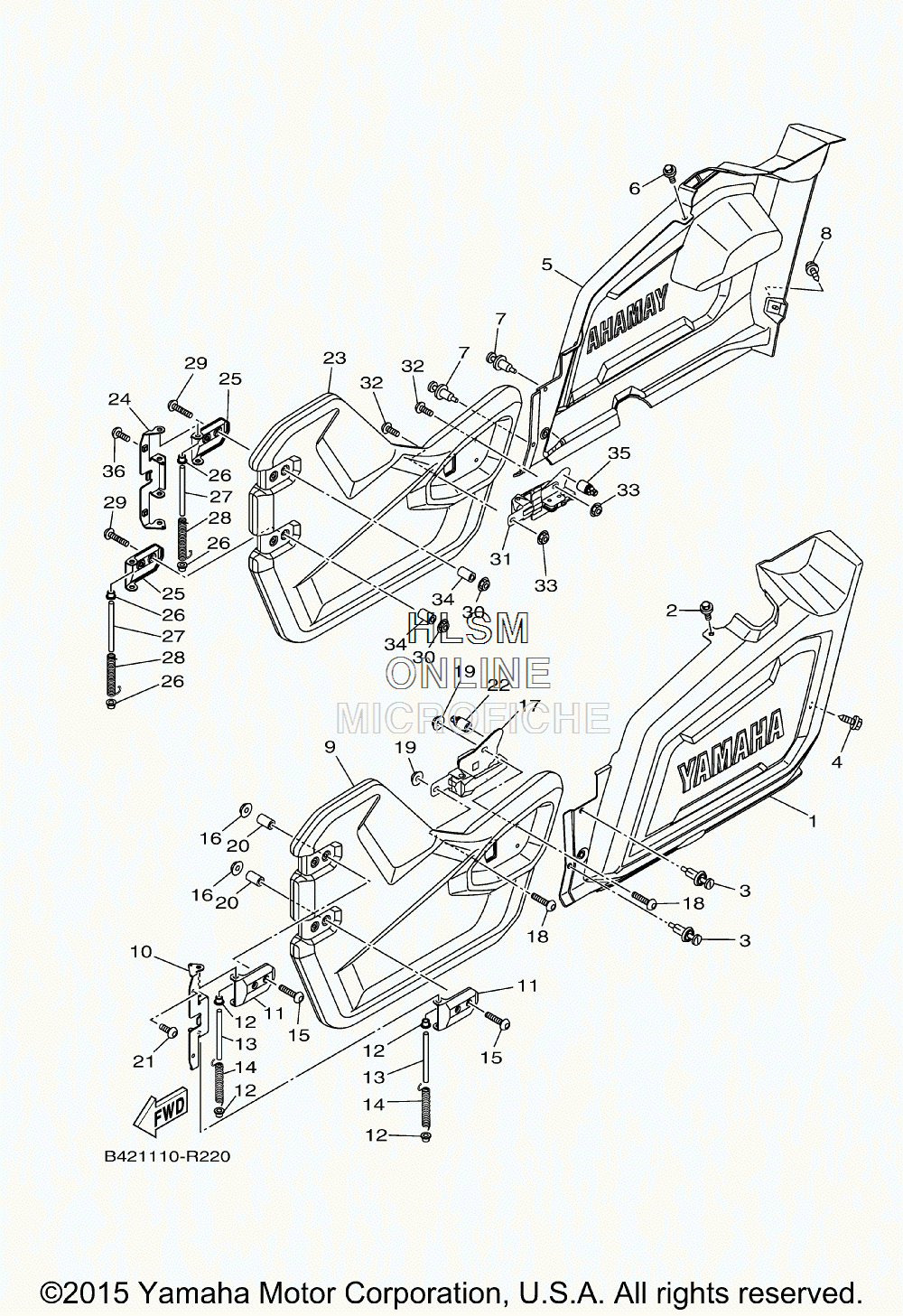

SIDE COVER для Yamaha VIKING [YXM70VDXGR] - 2016 года выпуска
-
№АртикулНазвание
-
11XD-F1721-00-00 COVER, SIDE 2COVER, SIDE 2
-
290119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
390269-07803-00 RIVETRIVET
-
490119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
51XD-F1731-00-00 COVER, SIDE 3COVER, SIDE 3
-
690119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
790269-07803-00 RIVETRIVET
-
890119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
91XD-K8557-10-00 PNL., DOOR FR. LHPNL., DOOR FR. LH
-
101XD-F197K-00-00 HINGE 2HINGE 2
-
111XD-F1797-00-00 HINGEHINGE
-
121XD-K7515-00-00 BUSH, RUBBER 1BUSH, RUBBER 1
-
131XD-F146A-00-00 PIN 1PIN 1
-
141XD-F463G-00-00 SPRG., HINGESPRG., HINGE
-
1590109-06897-00 BOLTBOLT
-
1695602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
172MB-K7171-00-00 BODY, LATCH 1BODY, LATCH 1
-
1890111-06086-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
1995602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2090387-06304-00 COLLARCOLLAR
-
215B4-F1722-00-00 BOLT 2BOLT 2
-
222MB-F8378-00-00 PADPAD
-
231XD-K8557-10-00 PNL., DOOR FR. LHPNL., DOOR FR. LH
-
241XD-F197K-00-00 HINGE 2HINGE 2
-
251XD-F1797-00-00 HINGEHINGE
-
261XD-K7515-00-00 BUSH, RUBBER 1BUSH, RUBBER 1
-
271XD-F146A-00-00 PIN 1PIN 1
-
281XD-F463G-00-00 SPRG., HINGESPRG., HINGE
-
2990109-06897-00 BOLTBOLT
-
3095602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
312MB-K7172-00-00 BODY, LATCH 2BODY, LATCH 2
-
3290111-06086-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
3395602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3490387-06304-00 COLLARCOLLAR
-
352MB-F8378-00-00 PADPAD
-
365B4-F1722-00-00 BOLT 2BOLT 2
