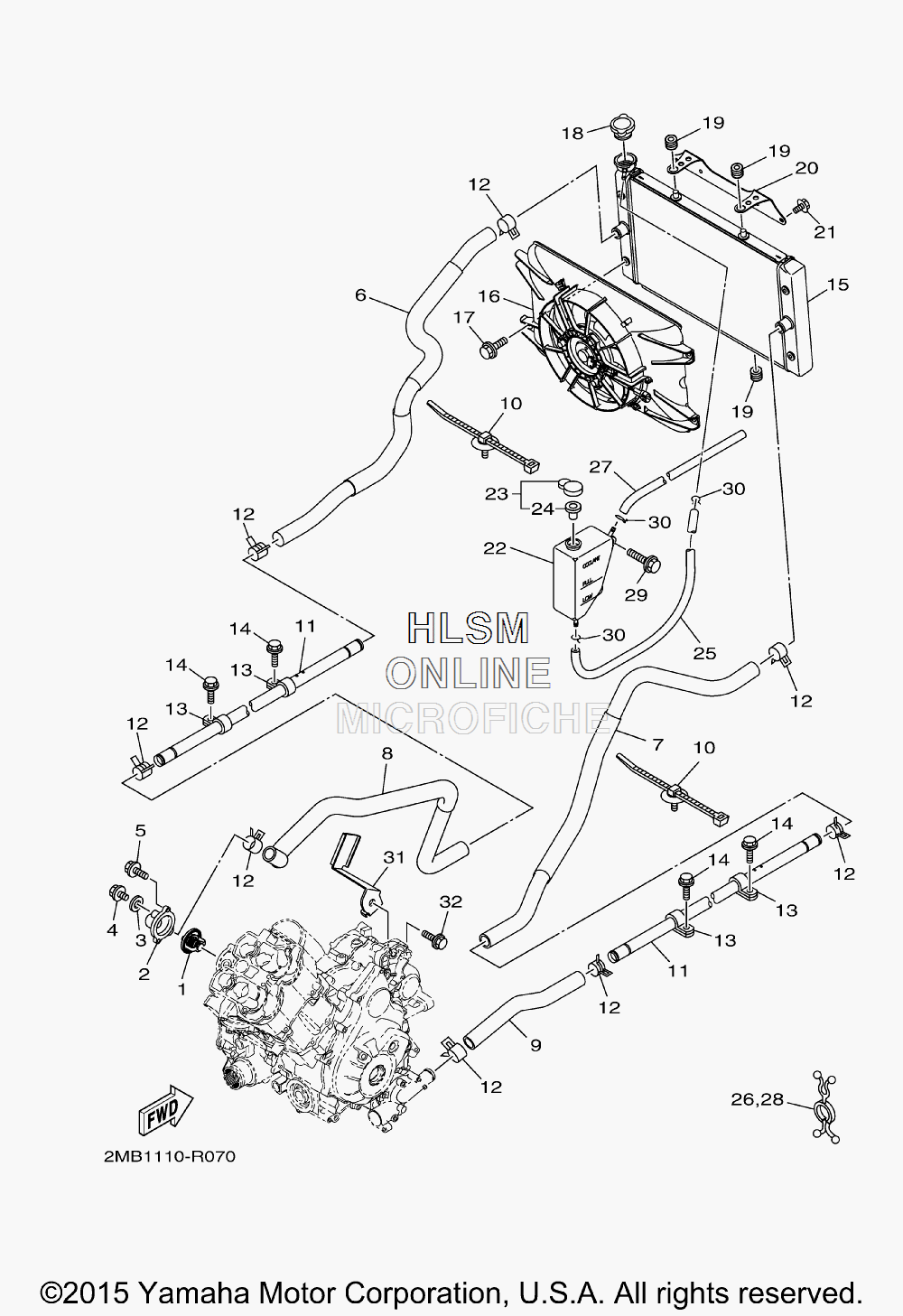

RADIATOR ASSY для Yamaha WOLVERINE HUNTER [YXE70WDBGH] - 2016 года выпуска
-
№АртикулНазвание
-
12MB-E2411-00-00 THERMOSTATTHERMOSTAT
-
22MB-E2413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
32MB-E2435-00-00 GASKETGASKET
-
42MB-E5481-60-00 BOLT 1BOLT 1
-
52MB-E5481-10-00 BOLT 1BOLT 1
-
61XD-E2576-00-00 HOSE 1HOSE 1
-
71XD-E2577-00-00 HOSE 2HOSE 2
-
82MB-E2578-00-00 HOSE 3HOSE 3
-
91XD-E2579-00-00 HOSE 4HOSE 4
-
101NS-F1338-00-00 CLAMPCLAMP
-
112MB-E2483-00-00 PIPE 3PIPE 3
-
1290467-26189-00 CLIPCLIP
-
1390461-12800-00 CLAMPCLAMP
-
1490105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
151XD-E2461-00-00 RADIATOR COMPRADIATOR COMP
-
161XD-E2405-00-00 BLOWER ASSYBLOWER ASSY
-
171XD-E2675-00-00 BOLT, BLOWER HOLDINGBOLT, BLOWER HOLDING
-
181XD-E2462-00-00 CAP, RADIATORCAP, RADIATOR
-
1990480-15235-00 GROMMETGROMMET
-
202MB-E2518-00-00 BRACKET, WATER COOLERBRACKET, WATER COOLER
-
2190119-06868-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
221XD-F1871-00-00 TANK, RECOVERYTANK, RECOVERY
-
231AA-21815-00-00 CAPCAP
-
241AA-21874-00-00 ...GASKET...GASKET
-
2590445-08846-00 HOSE (L920)HOSE (L920)
-
2690464-29179-00 CLAMPCLAMP
-
2790445-08845-00 HOSE (L760)HOSE (L760)
-
2890464-29179-00 CLAMPCLAMP
-
2990119-06868-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3090467-08003-00 CLIPCLIP
-
311XD-E2443-00-00 STAYSTAY
-
3295822-10040-00 BOLT, FLANGEBOLT, FLANGE
