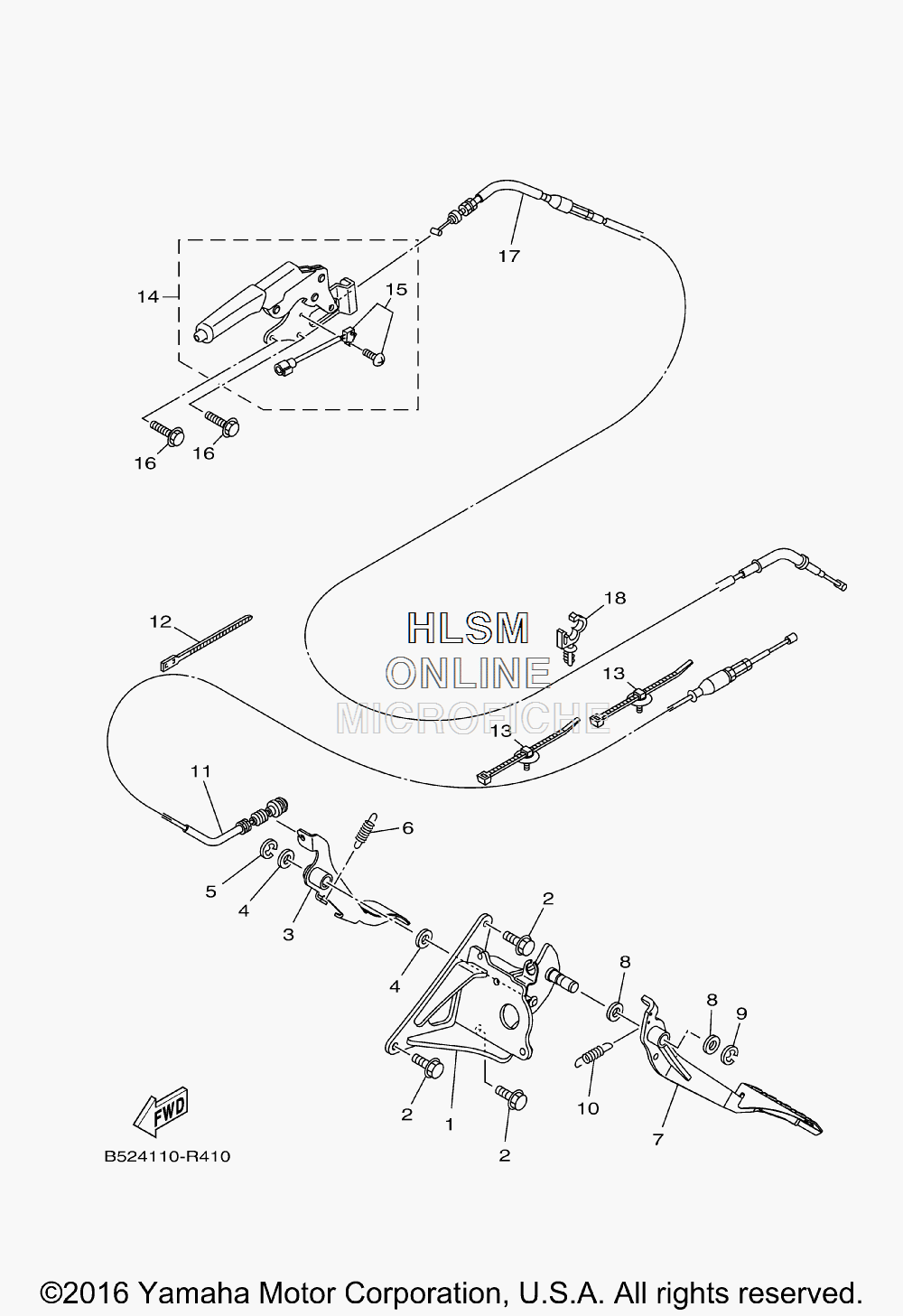

BRAKE - BRAKE SYSTEM для Yamaha WOLVERINE R-SPEC EPS SPCL EDITION [XE70WPSGS] - 2016 года выпуска
-
№АртикулНазвание
-
11XD-F2548-00-00 BRACKET, PEDAL SUPPORTBRACKET, PEDAL SUPPORT
-
295812-08016-00 BOLT, FLANGEBOLT, FLANGE
-
31XD-F7801-00-00 ACCEL PEDAL ASSYACCEL PEDAL ASSY
-
490201-15018-00 WASHER, PLATEWASHER, PLATE
-
593430-12008-00 CIRCLIPCIRCLIP
-
690506-20192-00 SPRING, TENSIONSPRING, TENSION
-
71XD-F7200-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
890201-15018-00 WASHER, PLATEWASHER, PLATE
-
993430-12008-00 CIRCLIPCIRCLIP
-
1090506-20192-00 SPRING, TENSIONSPRING, TENSION
-
112MB-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
1290464-40825-00 CLAMPCLAMP
-
135B4-F1338-00-00 CLAMPCLAMP
-
141XD-F5690-00-00 PARKING LEVER ASSYPARKING LEVER ASSY
-
155UG-H251S-00-00 ...SWITCH COMP....SWITCH COMP.
-
1695812-06012-00 BOLT, FLANGEBOLT, FLANGE
-
172MB-26341-00-00 WIRE, BRAKE 1WIRE, BRAKE 1
-
1890464-12830-00 CLAMPCLAMP
