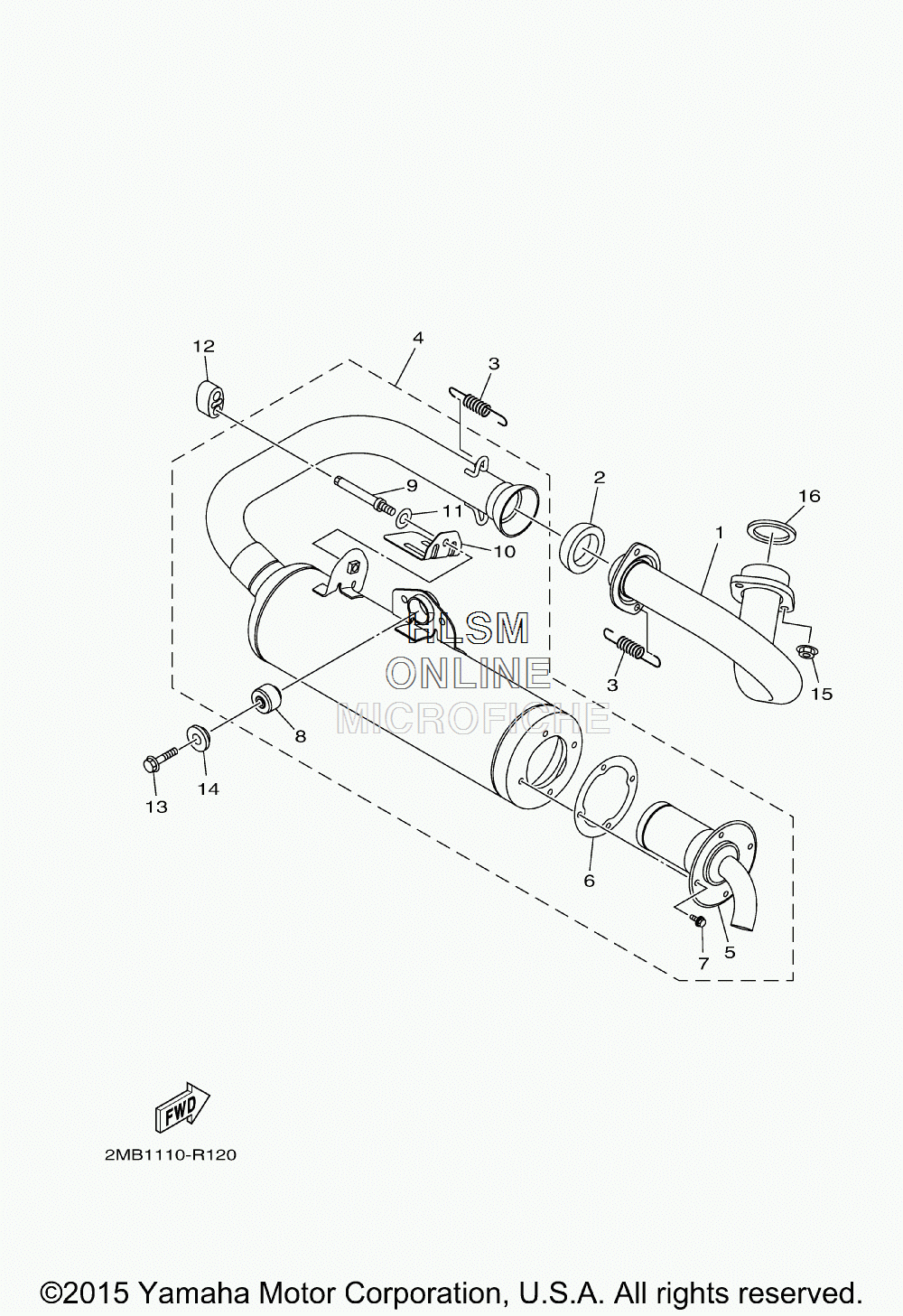

EXHAUST для Yamaha WOLVERINE R-SPEC EPS [YXE70WPAGW] - 2016 года выпуска
-
№АртикулНазвание
-
12MB-E4611-00-00 PIPE, EXHAUST 1PIPE, EXHAUST 1
-
22MB-E4714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
390506-26012-00 SPRING, TENSIONSPRING, TENSION
-
42MB-E4710-00-00 MUFFLER ASSY 1MUFFLER ASSY 1
-
52BG-E4780-00-00 ...SPARK ARRESTER ASSY...SPARK ARRESTER ASSY
-
62MB-E4755-00-00 ...GASKET, SILENCER...GASKET, SILENCER
-
795022-06012-00 ...BOLT, FLANGE...BOLT, FLANGE
-
81HP-F7414-00-00 ...DAMPER, FOOTREST...DAMPER, FOOTREST
-
91XD-E4745-00-00 ...SHAFT...SHAFT
-
102MB-E4793-00-00 ...PLATE, MUFFLER...PLATE, MUFFLER
-
1192902-08200-00 ...WASHER...WASHER
-
122MB-14737-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
1395812-08040-00 BOLT, FLANGEBOLT, FLANGE
-
143B4-14759-01-00 WASHERWASHER
-
1595702-08500-00 NUT, FLANGENUT, FLANGE
-
163EG-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
