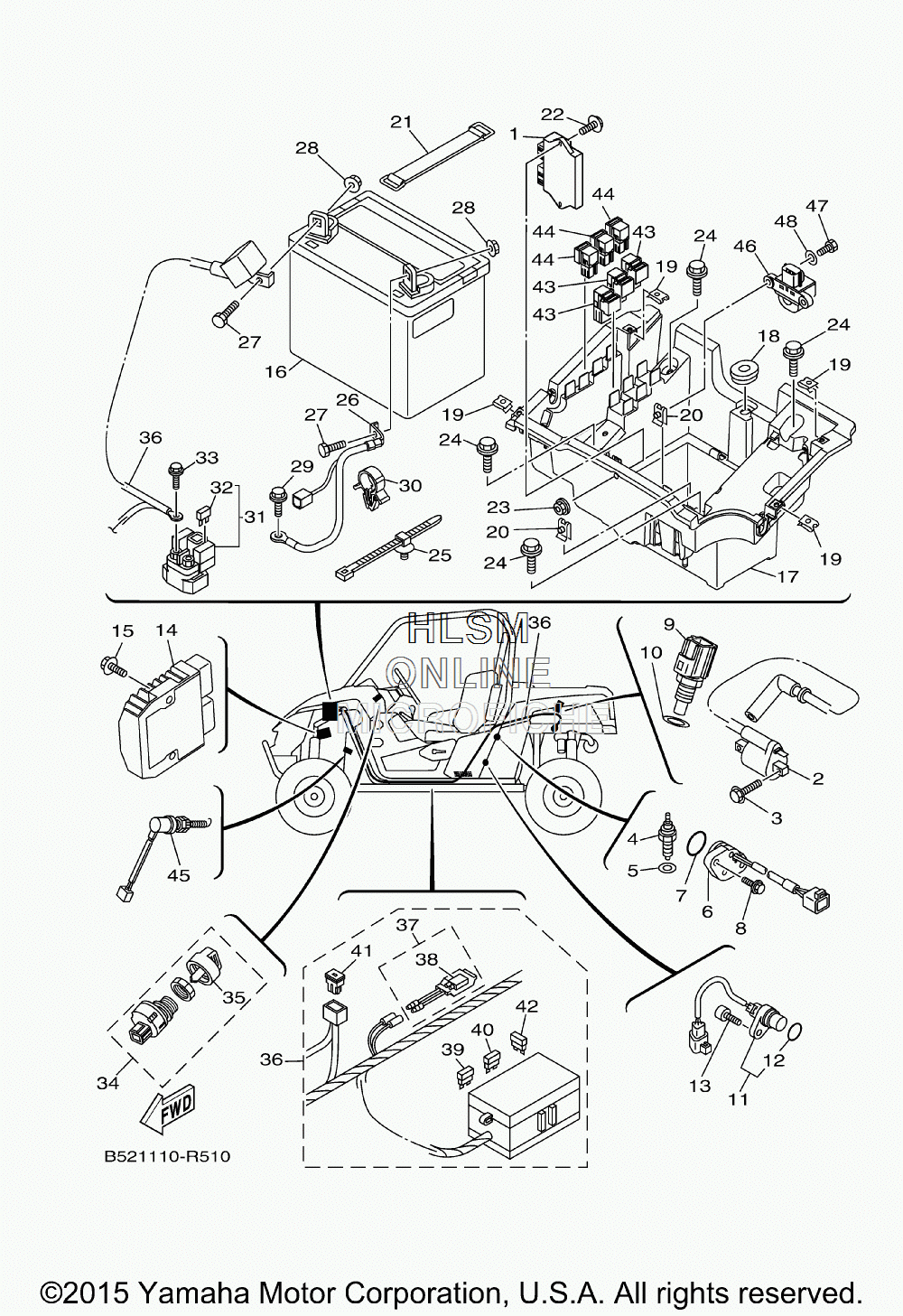

ELECTRICAL для Yamaha WOLVERINE [YXE70WDBGG] - 2016 года выпуска
-
№АртикулНазвание
-
12MB-8591A-00-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
22MB-82320-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
397002-06016-00 BOLT, HEXAGONBOLT, HEXAGON
-
42MB-H2540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
52MB-E5384-00-00 GASKETGASKET
-
62MB-H2540-10-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
72MB-E4D97-00-00 O-RINGO-RING
-
82MB-E5768-10-00 BOLTBOLT
-
92MB-H5790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
102MB-E1195-00-00 GASKETGASKET
-
112MB-H3755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
124D9-81168-00-00 ...O-RING...O-RING
-
132MB-E5481-10-00 BOLT 1BOLT 1
-
141D7-81960-01-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1590105-06833-00 BOLT, FLANGEBOLT, FLANGE
-
165UG-H2100-00-00 BATTERY ASSY (GS U1L-11)BATTERY ASSY (GS U1L-11)
-
171XD-H212B-00-00 BOX, BATTERY 1BOX, BATTERY 1
-
1890480-01558-00 GROMMETGROMMET
-
1990183-060A6-00 NUT, SPRINGNUT, SPRING
-
2090183-05008-00 NUT, SPRINGNUT, SPRING
-
213L8-82131-01-00 BAND, BATTERYBAND, BATTERY
-
2295812-06020-00 BOLT, FLANGEBOLT, FLANGE
-
2395702-06500-00 NUT, FLANGENUT, FLANGE
-
2490119-06868-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
251NS-F1338-00-00 CLAMPCLAMP
-
26B52-H2116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
2797080-08020-00 BOLTBOLT
-
2890179-08015-00 NUTNUT
-
2995812-06014-00 BOLT, FLANGEBOLT, FLANGE
-
3090464-15157-00 CLAMPCLAMP
-
315B4-81940-00-00 STARTER RELAY ASSY (RC19-080A)STARTER RELAY ASSY (RC19-080A)
-
3242X-82151-00-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
3395022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
345UG-H2510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
355UG-H2579-00-00 ...CAP, KEY...CAP, KEY
-
36B52-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
375B4-82180-00-00 ...CIRCUIT BREAKER ASSY...CIRCUIT BREAKER ASSY
-
385B4-82560-00-00 ......THERMO SWITCH ASSY......THERMO SWITCH ASSY
-
395JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
405JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
415PS-82151-00-00 ...FUSE (40A)...FUSE (40A)
-
425JJ-82151-70-00 ...FUSE (25A-BL)...FUSE (25A-BL)
-
435DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
448DM-81950-11-00 RELAY ASSY (8DM-11)RELAY ASSY (8DM-11)
-
454KB-82530-10-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
463B4-82576-00-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
4797002-05016-00 BOLTBOLT
-
4892902-05600-00 WASHER, PLATEWASHER, PLATE
