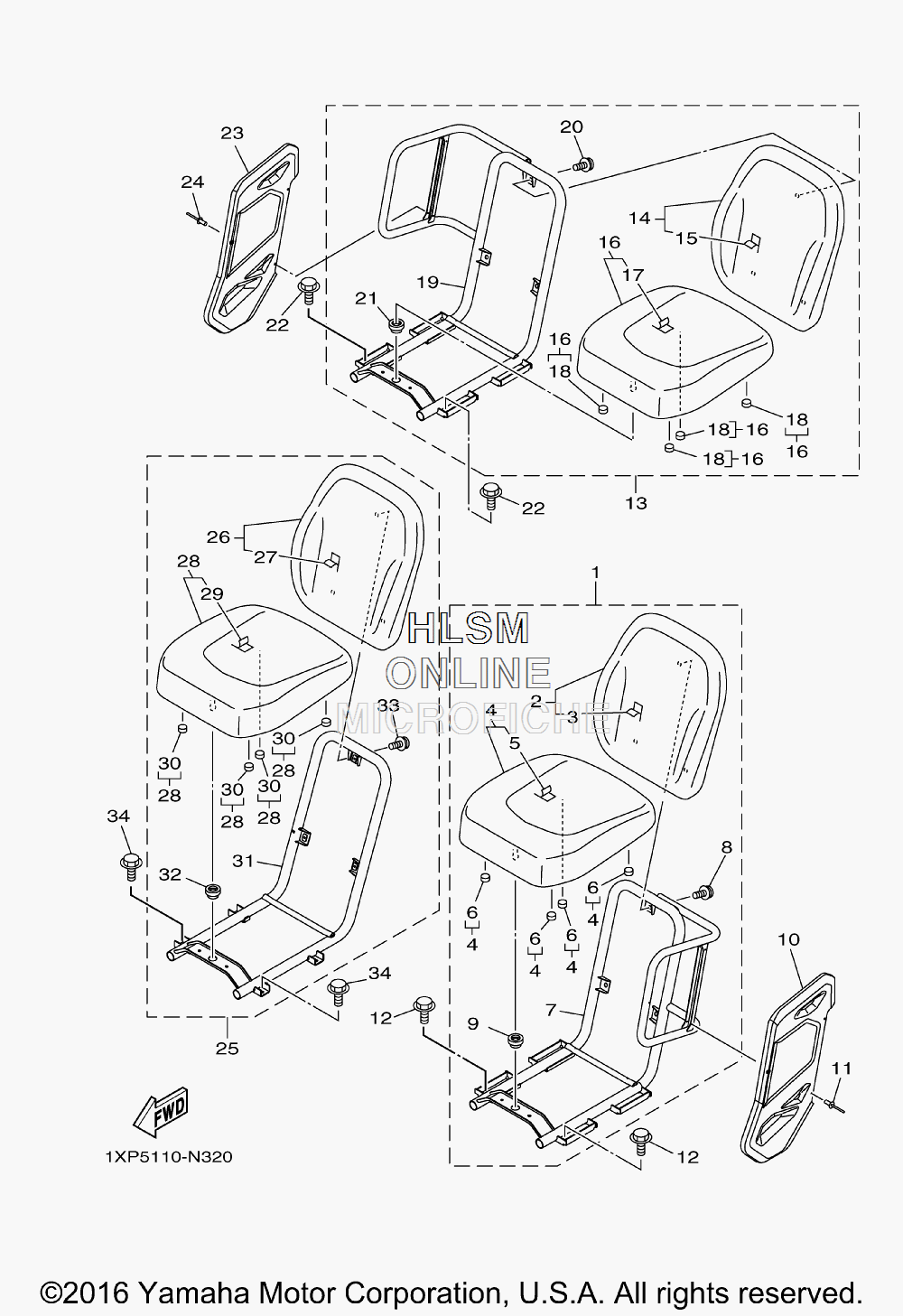

SEAT для Yamaha VIKING HUNTER - 2017 года выпуска
-
№АртикулНазвание
-
12PG-F7498-00-00 SEAT 1SEAT 1
-
21XD-F4790-00-00 ...SEAT BACK ASSY...SEAT BACK ASSY
-
31XD-F4711-00-00 ......COVER, SINGLE SEAT......COVER, SINGLE SEAT
-
41XD-F4700-00-00 ...SEAT ASSY...SEAT ASSY
-
51XD-F4731-00-00 ......COVER, SEAT......COVER, SEAT
-
61XD-F4723-00-00 ......DAMPER, SEAT......DAMPER, SEAT
-
71XD-F473C-00-00 ...FRAME, SEAT 1...FRAME, SEAT 1
-
82PG-F4739-00-00 ...BOLT, SEAT FITTING...BOLT, SEAT FITTING
-
91XD-F4742-00-00 ...GROMMET...GROMMET
-
101XD-F475X-00-00 COVER,2COVER,2
-
1190267-489U9-00 RIVET, BLINDRIVET, BLIND
-
1295812-08012-00 BOLT, FLANGEBOLT, FLANGE
-
132PG-F7499-00-00 SEAT 2SEAT 2
-
141XD-F4790-00-00 ...SEAT BACK ASSY...SEAT BACK ASSY
-
151XD-F4711-00-00 ......COVER, SINGLE SEAT......COVER, SINGLE SEAT
-
161XD-F4700-00-00 ...SEAT ASSY...SEAT ASSY
-
171XD-F4731-00-00 ......COVER, SEAT......COVER, SEAT
-
181XD-F4723-00-00 ......DAMPER, SEAT......DAMPER, SEAT
-
191XD-F473D-00-00 ...FRAME, SEAT 2...FRAME, SEAT 2
-
202PG-F4739-00-00 ...BOLT, SEAT FITTING...BOLT, SEAT FITTING
-
211XD-F4742-00-00 ...GROMMET...GROMMET
-
2295812-08012-00 BOLT, FLANGEBOLT, FLANGE
-
231XD-F475X-00-00 COVER,2COVER,2
-
2490267-489U9-00 RIVET, BLINDRIVET, BLIND
-
252PG-F749A-00-00 SEAT 3SEAT 3
-
261XD-F4790-00-00 ...SEAT BACK ASSY...SEAT BACK ASSY
-
271XD-F4711-00-00 ......COVER, SINGLE SEAT......COVER, SINGLE SEAT
-
281XD-F4700-00-00 ...SEAT ASSY...SEAT ASSY
-
291XD-F4731-00-00 ......COVER, SEAT......COVER, SEAT
-
301XD-F4723-00-00 ......DAMPER, SEAT......DAMPER, SEAT
-
311XD-F473Y-00-00 ...FRAME, SEAT 3...FRAME, SEAT 3
-
321XD-F4742-00-00 ...GROMMET...GROMMET
-
332PG-F4739-00-00 ...BOLT, SEAT FITTING...BOLT, SEAT FITTING
-
3495812-08012-00 BOLT, FLANGEBOLT, FLANGE
