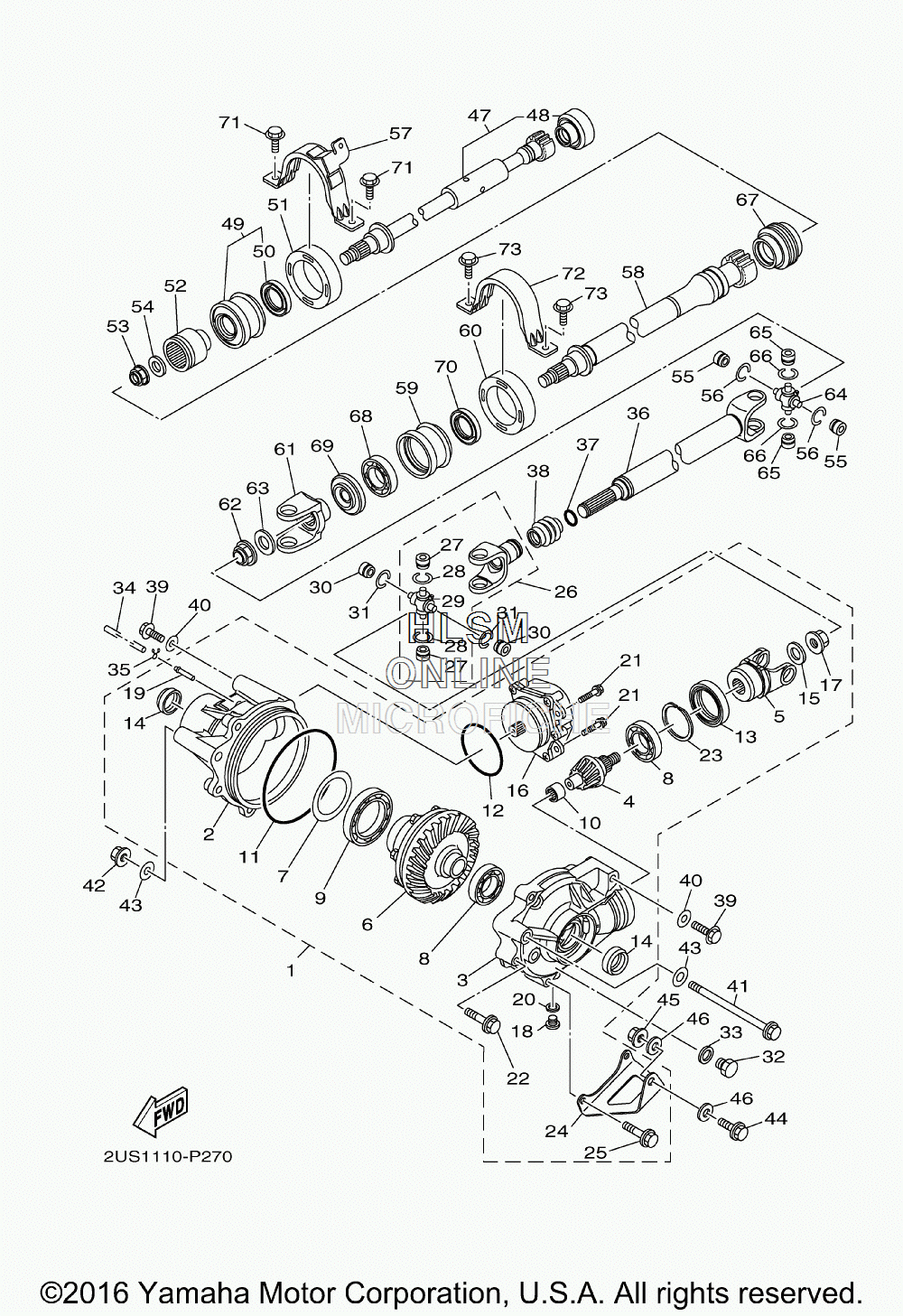

DIFFERENTIAL - FRONT для Yamaha VIKING VI EPS HUNTER - 2017 года выпуска
-
№АртикулНазвание
-
11XD-46160-00-00 FRONT AXLE GEAR CASE COMP.FRONT AXLE GEAR CASE COMP.
-
21XD-46162-00-00 ...HOUSING, BEARING 2...HOUSING, BEARING 2
-
31XD-46161-00-00 ...HOUSING, SHAFT DRIVE 2...HOUSING, SHAFT DRIVE 2
-
41XD-46141-00-00 ...PINION, DRIVE 2...PINION, DRIVE 2
-
54S1-46146-00-00 ...YOKE, JOINT 2...YOKE, JOINT 2
-
61XD-46470-00-00 ...LIMITED SLIP DIFF. ASSY...LIMITED SLIP DIFF. ASSY
-
73B4-46117-00-00 ...SHIM, RING GEAR (0.1T) (OPT)...SHIM, RING GEAR (0.1T) (OPT)
-
73B4-46117-10-00 ...SHIM, RING GEAR (0.2T) (OPT)...SHIM, RING GEAR (0.2T) (OPT)
-
73B4-46117-20-00 ...SHIM, RING GEAR (0.3T) (OPT)...SHIM, RING GEAR (0.3T) (OPT)
-
73B4-46117-30-00 ...SHIM, RING GEAR (0.4T) (OPT)...SHIM, RING GEAR (0.4T) (OPT)
-
893306-00613-00 ...BEARING...BEARING
-
93B4-46164-00-00 ...BEARING 1...BEARING 1
-
103B4-46166-00-00 ...BEARING 3...BEARING 3
-
113B4-46134-00-00 ...O-RING 1...O-RING 1
-
123B4-46135-00-00 ...O-RING 2...O-RING 2
-
1393105-46001-00 ...OIL SEAL...OIL SEAL
-
143B4-46163-00-00 ...SEAL, OIL 1...SEAL, OIL 1
-
153B4-47359-00-00 ...WASHER...WASHER
-
161HP-4616A-00-00 ...SERVO MOTOR COMP...SERVO MOTOR COMP
-
174WV-46145-10-00 ...NUT 1...NUT 1
-
1890340-10001-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
195GH-46293-00-00 ...TUBE...TUBE
-
2090430-10003-00 ...GASKET...GASKET
-
2195812-06014-00 ...BOLT, FLANGE...BOLT, FLANGE
-
2295812-08040-00 ...BOLT, FLANGE...BOLT, FLANGE
-
233B4-46142-00-00 ...RING,HOLE SNAP 1...RING,HOLE SNAP 1
-
241XD-46114-00-00 ...PLATE, COVER...PLATE, COVER
-
2595812-08050-00 ...BOLT, FLANGE...BOLT, FLANGE
-
262HC-46107-00-00 CROSS JOINT COMP. 2CROSS JOINT COMP. 2
-
2793399-99948-00 ...BEARING...BEARING
-
2893440-20088-00 ...CIRCLIP...CIRCLIP
-
295GT-46187-00-00 ...SPIDER...SPIDER
-
3093399-99948-00 BEARINGBEARING
-
3193440-20088-00 CIRCLIPCIRCLIP
-
3290340-14029-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
33214-11198-01-00 GASKETGASKET
-
3490445-07809-00 HOSE (L750)HOSE (L750)
-
3590467-07029-00 CLIPCLIP
-
361XD-46109-00-00 DRIVE SHAFT COMP.DRIVE SHAFT COMP.
-
3793210-16M69-00 O-RINGO-RING
-
385GT-46136-00-00 SEAL 1SEAL 1
-
3990105-10255-00 BOLT, FLANGEBOLT, FLANGE
-
4090201-10035-00 WASHER, PLATEWASHER, PLATE
-
4190105-12066-00 BOLT, FLANGEBOLT, FLANGE
-
4290185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4392902-12200-00 WASHERWASHER
-
4495812-10025-00 BOLT, FLANGEBOLT, FLANGE
-
4590185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4690201-10035-00 WASHER, PLATEWASHER, PLATE
-
471XD-46173-00-00 SHAFT, DRIVE 2SHAFT, DRIVE 2
-
485KM-46137-00-00 ...SEAL 2...SEAL 2
-
492MB-46106-00-00 BEARING ASSYBEARING ASSY
-
5093102-30170-00 ...OIL SEAL...OIL SEAL
-
511XD-4581J-00-00 RUBBER SHAFT COUPLINGRUBBER SHAFT COUPLING
-
523B4-17832-10-00 COUPLINGCOUPLING
-
5390179-16015-00 NUTNUT
-
5490201-16021-00 WASHER, PLATEWASHER, PLATE
-
5593399-99948-00 BEARINGBEARING
-
5693440-20088-00 CIRCLIPCIRCLIP
-
571XD-4613F-00-00 COVER 1COVER 1
-
582PG-46380-00-00 SHAFT ASSY 1SHAFT ASSY 1
-
592MB-46152-00-00 HOUSING, BEARINGHOUSING, BEARING
-
601XD-4581J-00-00 RUBBER SHAFT COUPLINGRUBBER SHAFT COUPLING
-
615B4-17556-00-00 YOKE, JOINTYOKE, JOINT
-
6290179-16015-00 NUTNUT
-
6390201-16021-00 WASHER, PLATEWASHER, PLATE
-
645GT-46187-00-00 SPIDERSPIDER
-
6593399-99948-00 BEARINGBEARING
-
6693440-20088-00 CIRCLIPCIRCLIP
-
672PG-46137-00-00 SEAL 2SEAL 2
-
6893306-27202-00 BEARINGBEARING
-
6993102-30010-00 OIL SEALOIL SEAL
-
7093102-30170-00 OIL SEALOIL SEAL
-
7195812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
722PG-4613F-00-00 COVER 1COVER 1
-
7395812-08020-00 BOLT, FLANGEBOLT, FLANGE
